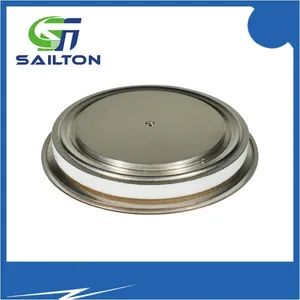

High Reliability Low Thermal Resistance Welding Diode with Unit
Piece
Negotiable
Product information
High-quality High Reliability Low Thermal Resistance Welding Diode with Unit supplied by Sailing Commercial (Tianjin) Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
15.000kg
Production Capacity:
150000 PCS/Year
Voltage:
200V-400V
Delivery:
3 Days
Specification:
400*300*200
Package Size:
50.00cm * 30.00cm * 20.00cm
Current:
7000A-18000A
HS Code:
8541300000
Specifications
Package Gross Weight:
15.000kg
Production Capacity:
150000 PCS/Year
Voltage:
200V-400V
Delivery:
3 Days
Specification:
400*300*200
Package Size:
50.00cm * 30.00cm * 20.00cm
Current:
7000A-18000A
HS Code:
8541300000
Signal Processing:
Analog Digital Composite and Function
Assembly:
Available
Transport Package:
Carton Box
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Technology:
Crimping
Manufacturing Technology:
Discrete Device
Cooling:
Double-Side
Material:
Element Semiconductor
Trade Term:
FOB, CIF, CFR, EXW
Frequency:
High,Medium
Payment Term:
LC, T/T
Type:
N-Type Semiconductor
Trademark:
SAILTON/STI
Package:
SMD
Chip:
Silicon
Usage:
Spot Welding Machine
Payment Methods:
Support payments in USD
Payment:
T/T
Port Of Loading:
Tianjin Port
Control Way:
Two-Way
Resistance:
Very Low Theremal Resistance
Heatsink:
Water,Cooling
Item:
Welding Diode Rectifier
Model NO.:
ZP
Model:
Zp
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-11-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE for power module, CE for welding diode, ISO for factory, SGS Certificate
Product descriptions from the supplier
high reliability low thermal resistance welding diode with unit
Feature
Designed for medium frequency welding euipment
High reliability in welding machine
Very low on-state voltage
Very low thermal resistance
Up to 2000HZ
High current up to 18000A
Application
For all kinds of intermediate frequency, power frequency resistance welding machine.
Such as automobile welding clamp,seam welding machine, mesh welding machine and so on.
Welding diode for medium frequency sopt welding
We develop and produce high current welding diode for medium frequency spot welding application.
Our welding diode current have 4000A,7100A,9200A,10500A,12000A,13500A,16000A,18000A.
Its voltage is 200V-600V.
Packing
Welding Diodes
Welding diode is a high current low voltage semiconductor device used on medium frequency spot welding machine,MFDC spot welder,seam welder.
Its current range are from 7100A to 13500A.Voltage is 200V or 400V.Welding diodes also are known as"Welder Diodes","Welder Rectifier Diodes".
Welding diodes are the core rectifier components during resistance welder.As welding rectifier diode output.
Company
We are Chinese largest welding diodes production base.
Welding diodes product line include 7100A,9000A,12000A house type welder diodes and 10500A,13500A houseless type welding diodes.
Because of stable quality and long working time,has won many clients's praise.
E.g. resistance welding machine manufacturer,welding robotic service providers,automobile manufacturers etc.
Housing Type
| Part No. | IF(AV) | VRRM | IFSM | I2 t | VTO | rT | TVJM | RthJC | RthCH | F | Outline |
| Tc=85ºC | 50HZ TVJM | 50HZ TVJM | TVJM | TVJM | |||||||
| (A) | (V) | (KA) | A2S.103 | V | mΩ | ºC | (ºC/W) | (ºC/W) | KN | ||
| ZP4000/02-06 | 5000 | 200-600 | 45 | 10 | 0.80 | 0.030 | 170 | 0.010 | 0.005 | 20-25 | D1 |
| ZP7100/02-06 | 7100 | 200-600 | 55 | 15 | 0.75 | 0.025 | 170 | 0.010 | 0.005 | 20-25 | D1 |
| ZP12000/02-06 | 11000 | 200-600 | 85 | 36 | 0.75 | 0.020 | 170 | 0.006 | 0.003 | 35-40 | D2 |
| ZP16000/02-06 | 16000 | 200-600 | 120 | 72 | 0.80 | 0.019 | 190 | 0.004 | 0.002 | 50-60 | D3 |
Housingless Type
| Part No. | IF(AV) | VRRM | IFSM | I2 t | VTO | rT | TVJM | RthJC | RthCH | F | Outline |
| Tc=85ºC | 50HZ TVJM | 50HZ TVJM | TVJM | TVJM | |||||||
| (A) | (V) | (KA) | A2S.103 | V | mΩ | ºC | (ºC/W) | (ºC/W) | KN | ||
| ZP10500/02-06 | 10500 | 200-600 | 70 | 25 | 0.80 | 0.03 | 170 | 0.0050 | 0.0026 | 30-50 | D18 |
| ZP13500/02-06 | 13500 | 200-600 | 85 | 36 | 0.75 | 0.02 | 170 | 0.0039 | 0.0025 | 35-70 | D19 |
| ZP18000/02-06 | 18000 | 200-600 | 120 | 72 | 0.80 | 0.02 | 190 | 0.0035 | 0.002 | 70-80 | D20 |
Housing outline
Welding diodes unit
Company Certificate
Factory environment display:
The heatsink or welding diode assembly is fully supply.
Welcome to Contact me!
