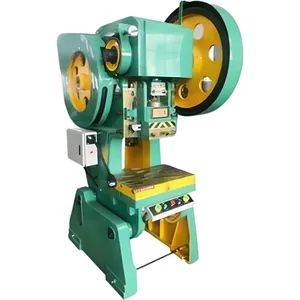

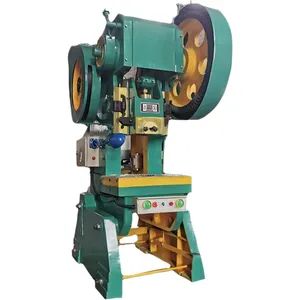

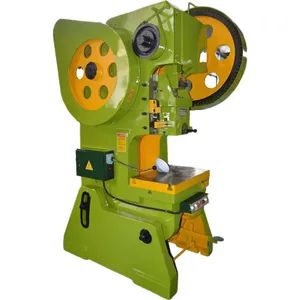

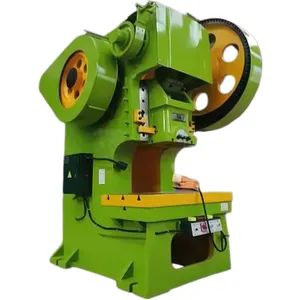

High Rigidity for Punching and Bending Punching Machine
1-9 sets
$1,60010 sets
$1,500Product information
High-quality High Rigidity for Punching and Bending Punching Machine supplied by Shanghai Yifeng Machinery Mold Co., Ltd.. Bulk wholesale pricing ranges from $1,500 to $1,600 per sets with a minimum order of 1 sets. Inquiry for latest prices.
Production Capacity:
2000 Sets
Package Size:
300.00cm * 300.00cm * 270.00cm
Power Voltage:
380V50Hz/Custom
Package Gross Weight:
5000.000kg
HS Code:
8462629090
OEM:
Accept
Controlling Mode:
Artificial
Origin:
China
Specifications
Production Capacity:
2000 Sets
Package Size:
300.00cm * 300.00cm * 270.00cm
Power Voltage:
380V50Hz/Custom
Package Gross Weight:
5000.000kg
HS Code:
8462629090
OEM:
Accept
Controlling Mode:
Artificial
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Slider Movement:
Double Action
Trade Term:
FOB
Type:
General Punching Machine
Operation:
Hand Button/Foot Pedal
Features Of Punching Machine1:
High Efficiency, Suitable for Mass Stamping
Certification:
ISO 9001
Model NO.:
J23 Mechanical Power Press
Press Color:
Light Green, Customizable
Slider Drive Mechanism:
Link Press
Power Source:
Mechanical Drive
Product Name:
Mechanical Power Press
Application:
Metal Sheet Stamping
Condition:
New
Precision:
Normal Precision
Specification:
Press capacity from 10 tons to 160 tons
Automatic Grade:
Semiautomatic
Port Of Loading:
Shanghai, Nanjing
Transport Package:
Steel Pallet
Payment Methods:
Support payments in USD
Punch Shape:
Tiltable Punch
Payment Term:
To be discussed
Features Of Punching Machine2:
with Product Drawings, Mold Customization Availabl
Trademark:
yf
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-10-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Shanghai, Nanjing
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
Core Application Fields of Stamping Presses
Stamping presses (punch presses) are core equipment for the cold forming of metal sheets and profiles based on stamping technology. They complete processes such as punching, blanking, bending, drawing, embossing and riveting with the cooperation of molds, and feature high processing efficiency, consistent precision and low mass production costs. Widely used in almost all metal processing and manufacturing industries including automotive, hardware, household appliances and electronics 3C, they undertake the core processing of all types of components – from micro shrapnels to large automotive body structural parts.
Product Features of Pneumatic Stamping Press
The fuselage is made of high-quality steel plate, designed according to high precision and high strength, and the stress is relieved after welding, so the precision is stable and the performance is reliable.
In order to ensure the relative stability of the machine operation, the design method of pneumatic balancer device is adopted.
Mould-adjusting precision is as high as 0.1mm, which is safe, convenient and reliable.
Crankshafts, gears, screws and other components have undergone hard gasification and grinding treatment, and have extremely high comprehensive mechanical properties and wear resistance.
The machine structure design is reasonable and the configuration is complete, which facilitates the realization of automatic production and assembly line production.
Using high-performance combined clutch/brake, the combination is stable, safe and reliable.
Adopt safety double solenoid valve and hydraulic overload protection device to ensure the maximum safety of production operation.
Mechanical Power Press
Stamping processing is mainly applicable to sheet metal working. With the help of moulds, it can finish the processing of various parts involving blanking, punching, forming, deep drawing, trimming, fine blanking, sizing, riveting and extrusion, and is widely used in numerous fields. The design principle of a stamping press is to convert circular motion into linear motion: the main motor drives the flywheel, which in turn drives gears, crankshaft (or eccentric gear), connecting rod and other components via the clutch to achieve the linear motion of the slide block. All transmission links from the main motor to the connecting rod perform circular motion.
Experience smooth and low-noise operation with our Model J23 Mechanical Power Press. This press adopts a rotating key positive clutch design, featuring a simple structure for easy operation and maintenance. Its transmission gears are equipped with rolling bearings, which greatly enhance wear resistance and completely eliminate the high-frequency noise caused by traditional copper sleeve bearings.
Specification
Model | J23-10 | J23-16 | J23-25 | J23-40 | J23-63 | |
Nomminal force | KN | 100 | 160 | 250 | 400 | 630 |
Slide block stroke | Mm | 50 | 60 | 70 | 100 | 100 |
Number of stroke | Min-1 | 120 | 120 | 70 | 50 | 50 |
Max die set height | mm | 160 | 160 | 200 | 230 | 250 |
Die set height adjusdment | mm | 30 | 40 | 40 | 50 | 60 |
Distance from slide block centre to the frame | mm | 120 | 230 | 230 | 250 | 300 |
Worktable dimensions(f.b*l.r) | mm | 230 360 | 290 460 | 320 500 | 410 650 | 460 700 |
Dimensions of worktable hole (diameter*f*b*l*r) | mm | φ95 | φ120 | φ130 | φ160 | φ160 |
Thickness of bolster | mm | 35 | 45 | 50 | 85 | 85 |
Size of the handle hole (diameter *depth) | mm | φ30 50 | φ40 60 | φ40 60 | φ50 70 | φ50 70 |
Max ,tilting angle of body | ° | 30° | 30° | 25° | 25° | 20° |
Outline dimension(f*b*l*r*h) | mm | 800 600 1500 | 900 700 1900 | 1250 850 2000 | 1500 1200 2400 | 1500 1200 2450 |
weight | kg | 400 | 800 | 1200 | 2400 | 3250 |
After Sales Service
factory workshop
Company Profile
Shanghai Yifeng Machinery Mould Co., Ltd.
Shanghai Yifeng Machinery Mould Co., Ltd., located in Shanghai, China, is a professional enterprise dedicated to the sheet metal processing equipment and machinery industry, engaging in the design and manufacturing of various stamping presses, bending machines, shearing machines, as well as all types of bending machine moulds and industrial machine blades.
Our main products include stamping presses, CNC hydraulic bending machines, edge folding machines, shearing machines, various bending machine moulds, all types of circular blades, blades for the plastic and rubber industry, blades for the packaging and printing industry, blades for the food and pharmaceutical industry, blades for the metal processing industry, blades for the wood processing industry and other industrial machine blades. These products are widely used in manufacturing sectors such as decoration, metallurgy, shipbuilding, automobile, machinery, aerospace, papermaking, plastics, food, pharmaceuticals, wood processing and so on.
Our Advantages
Packaging & Shipping
FAQ
Q: Are you a factory or a trader?
A: We are a manufacturer integrating industry and trade. Welcome to visit our company.
A: We are a manufacturer integrating industry and trade. Welcome to visit our company.
Q: Can I add my LOGO to the product?
A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.
A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.
Q.What kinds of payment methods do you accept?
A:You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
A:You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
Q: What are your modes of transportation?
A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.
A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.
Q.Do you guarantee safe and secure delivery of products?
A:Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
A:Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
Q.How about the shipping fees?
A;The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
A;The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
