High Speed Building Wire Cable Extrusion Machine
Set
Negotiable
Product information
High-quality High Speed Building Wire Cable Extrusion Machine supplied by Dongguan Wirecan Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Production Capacity:
4set Per Month
HS Code:
84772090
Cable Diameter:
According to Different Extruder Size
Automatic Grade:
Automatic
Origin:
China
Usage:
Extruding
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Warranty:
12 Months
Production Capacity:
4set Per Month
HS Code:
84772090
Cable Diameter:
According to Different Extruder Size
Automatic Grade:
Automatic
Origin:
China
Usage:
Extruding
Trade Term:
FOB, CIF, CFR, EXW
Machine Size:
GF-40/50/60/70
Certification:
ISO
Suitable Material:
PVC/PE/LSZH
Transport Package:
Plastic Film+Wooden Package
Port Of Loading:
Shenzhen Port
Motor:
Siemens
Screw:
Single-Screw
Payment Term:
T/T,L/C
Service:
Technical Support,Training
Payment Term:
To be discussed
Application:
Wire Extrusion Machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2015-10-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
1,wire extrusion machine application:
Ideal for extruding PVC, PE, PU, and various plastics, primarily used in insulating or jacketing applications for automotive cables, network wires, power cables, data cables, high-frequency wires, construction wires, and electrical wires, etc. The modified screw design enables efficient processing of halogen-free low-smoke materials, nylon, and other plastic compounds.
2,wire extrusion machine Technical parameters:
3. Equipment configuration
Can be optional for PLC control,infuse color machine
(for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
Our main products:
What we can do for you ?
Delivery and Package
Ideal for extruding PVC, PE, PU, and various plastics, primarily used in insulating or jacketing applications for automotive cables, network wires, power cables, data cables, high-frequency wires, construction wires, and electrical wires, etc. The modified screw design enables efficient processing of halogen-free low-smoke materials, nylon, and other plastic compounds.
2,wire extrusion machine Technical parameters:
| Technical parameters | ||||||
| Machine type | GF-25 | GF-30 | GF-35 | GF-45 | GF-50 | GF-60 |
| Pay off type | motorized | motorized/double-shaft | ||||
| Screw diameter | Φ25 | Φ30 | Φ35 | Φ45 | Φ50 | Φ60 |
| Screw L/D | 26:1 | |||||
| Max.extrusion output | 20kg/h | 30kg/h | 40kg/h | 50kg/h | 70kg/h | 110kg/h |
| Motor power | 7.5HP | 10HP | 10HP | 15HP | 15HP | 20HP |
| Wire diameter | Φ0.2-1.0 | Φ0.2-2.0 | Φ0.4-2.5 | Φ0.6-3.0 | Φ0.6-4.0 | Φ0.8-8.0 |
| Cooling device | Folding type W/U type | |||||
| Haul-off power | 2HP | 2HP | 2HP | 3HP | 3HP | 4HP |
| Wire-storage length | 250m | |||||
| Max. Line speed | 500m/min | |||||
| Take-up type | Double shaft bundle packaging/shaft packaging | |||||

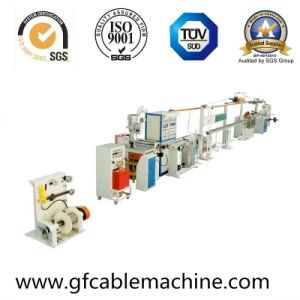

| No. | All parts' name | Qty |
| 1 | Pay off rack | 1set |
| 2 | Copper wire pre-heater | 1set |
| 3 | Straightener platform | 1set |
| 4 | Main motor(free-adjustable) | 1set |
| 5 | Automatic dryer and hopper | 1set |
| 6 | Electric apparatus main control cabinet | 1set |
| 7 | Movable water trough | 1set |

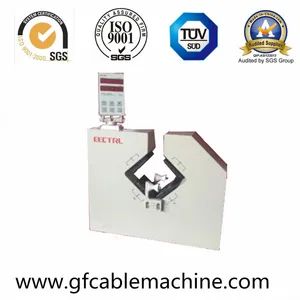

| 8 | Laser diameter gauge | 1set |
| 9 | High speed printing machine | 1set |
| 10 | Fixed water-trough | 1set |
| 11 | Double-wheel capstan | 1set |
| 12 | Horizontal wire-accumulator | 1set |
| 13 | High frequency sparker | 1set |
| 14 | Double-shaft take-up machine | 1set |
Can be optional for PLC control,infuse color machine
(for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
Our main products:
What we can do for you ?
Delivery and Package
