High Speed Electric Fan Guard Machine Making Radial Wire Fan Grills
1-2 Piece
$48,0003 Piece
$45,000Product information
High-quality High Speed Electric Fan Guard Machine Making Radial Wire Fan Grills supplied by BOBO Machine Co., Ltd.. Bulk wholesale pricing ranges from $45,000 to $48,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Air Consumption:
0.4m3/Min
Suitable Wire Diameter:
1.0-1.8mm
Production Capacity:
1000 Sets Per 8 Hours Shift
Welding Current:
10A Per Time
Warranty:
12 Months, 12 Months
Specification:
1600 x 1200 x 1350mm
Productivity:
5000-8000 Pieces
Suitable Ring Diameter:
60-800mm
Specifications
Air Consumption:
0.4m3/Min
Suitable Wire Diameter:
1.0-1.8mm
Production Capacity:
1000 Sets Per 8 Hours Shift
Welding Current:
10A Per Time
Warranty:
12 Months, 12 Months
Specification:
1600 x 1200 x 1350mm
Productivity:
5000-8000 Pieces
Suitable Ring Diameter:
60-800mm
Size Of Fan Guard:
8-20 "(by Changing Flange Moulds)
Trademark:
BOBO
Model NO.:
CZH-30
Origin:
China
Customized:
Customized, Customized
Trade Term:
FOB, CIF, DDP
Forging Forming Method:
Free Forging, Free Forging
Feature:
High Efficiency, High Efficiency
Power Source:
Hydraulic Pressure, Hydraulic Pressure
Payment Term:
LC, T/T, PayPal, Western Union
Application:
Metal Processing Machinery Parts
Condition:
New, New
After Sales Service:
One Year
Port Of Loading:
Shanghai Port
Material:
Stainless Steel
Advantage:
Use Widely, Use Widely
Transport Package:
Wooden Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-03-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
16
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, DDP
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Electric Fan Guard Making Machines
Electric fan guard machines include: inner ring spot welding machine, outer ring welding machine, middle ring welding machine, ring bending machine, ring butt welding machine, hydraulic press for guard shape forming, edge trimming machine, handle bending machin, handle welding machine, etc.
Our electric fan guard machines are designed analogue to Taiwanese machines. However, production speed is higher than Taiwanese machines.
|
Item |
Data |
|
Suitable fan guard size |
8" ~ 23" (can be specially ordered) |
|
Radial wire numbers |
No limit |
|
Suitable radial wire diameter |
1.0~1.8mm |
|
Outer ring wire diameter |
3~4mm |
|
Middle ring wire diameter |
1.5~3mm |
|
Production speed |
Quicker than Taiwanese machines* |

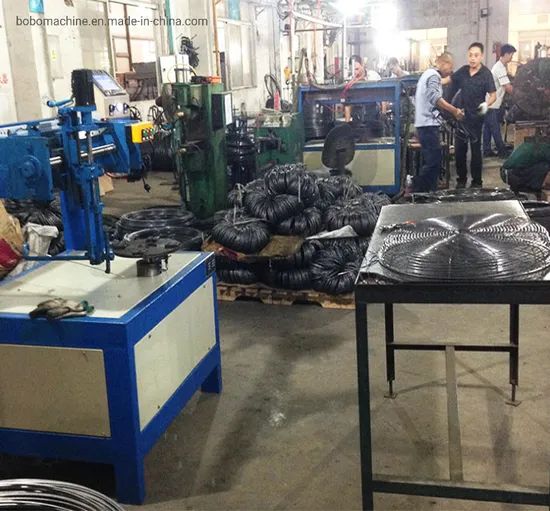

Production flow of electric fan guard productions:
Ring bending --- butt welding --- inner ring spot welding --- hydraulic press forming --- outer ring spot welding --- middle ring spot welding machine --- edge trimming --- handle forming --- handle spot welding

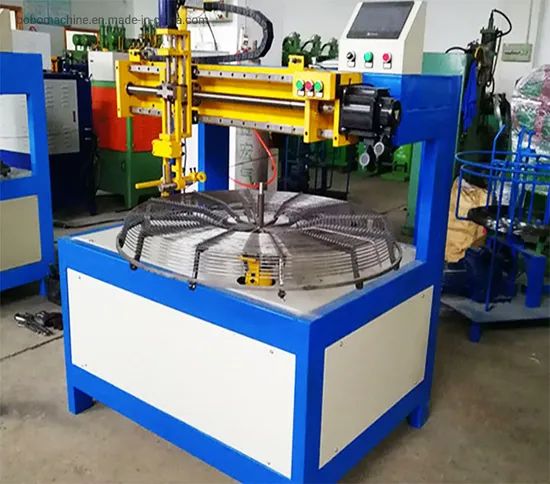

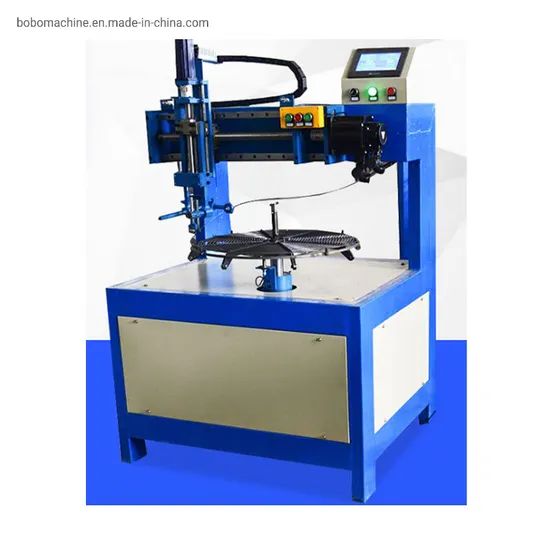

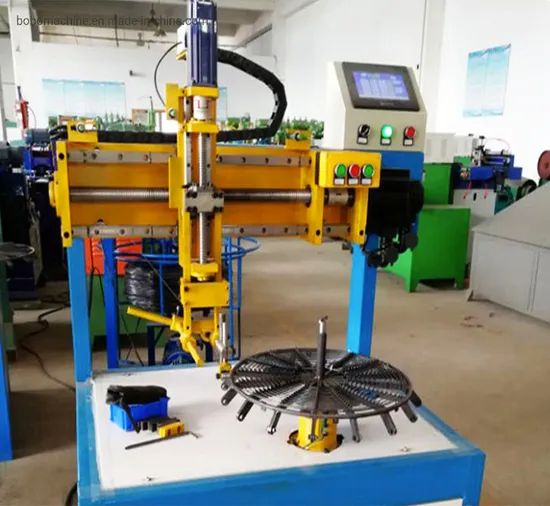

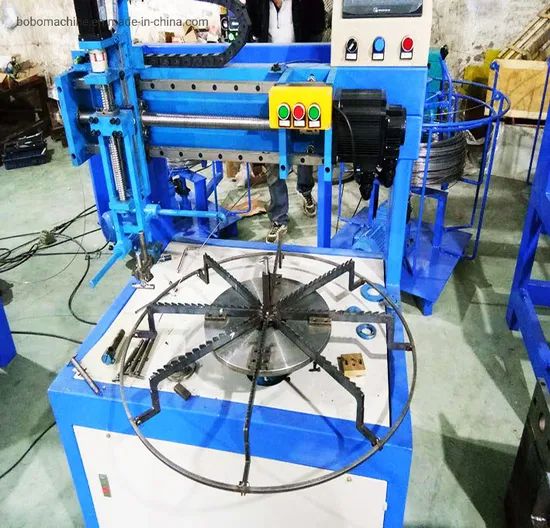

Main technical data of electric fan guard inner ring spot welding machine:
-- Machine code: XW-DN-16K
-- Suitable wire diameter: 1.0-1.8mm
-- Size of fan guard: 8"-20" (by changing flange moulds)
-- Rated welding power: 16kVA
-- Productivity: about 800-1000 pieces per 8 hours shift (16", 120 pieces radial wires)
-- Air consumption: 0.15M3/min
-- Welding current: 6A every welding point
-- Dimension: 1600 x 1000 x 1350mm
-- Weight: about 400kg
Main technical data of electric fan guard outer ring welding machine:
-- Machine code: XW-WP-40K
-- Suitable wire diameter of the outer ring: 3-4mm
-- Rated welding power: 40kVA
-- Size of guards: 8"-20"
-- Productivity: 1000-1500 pieces (16", 120 radial wires)
-- Air consumption: 0.4m3/min
--Welding current: 10A per time
-- Dimension: 1200 x 950 x 1550mm
-- Weight: about 500kg
Main technical data of electric fan guard middle ring welding machine:
-- Code: XW-ZP-40K
-- Suitable wire diameter for middle ring: 1.5-3mm
-- Rated welding power: 40KVA
-- Size of guard: 8"-20"
-- Productivity: 5000-8000 pieces (16", 120 pieces radial wires)
-- Air consumption: 0.5M3/min
-- Welding current: 10A per time
-- Dimension: 1150 x 450 x 1600mm
-- Weight: about 350kg
Main technical data of automatic ring making machine for electric fan guards:
-- Machine code: DQ-08
-- Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%).
-- Suitable diameter: 1.0-8.0mm
-- Suitable ring diameter: 60-800mm
-- Main driving power: 2.2kW
-- Linear wire feeding speed: about 30m/min
-- Productivity: 6000-8000 pieces per 8 hours shift
-- Dimension: 1500 x 800 x 1500mm
-- Weight: about 500kg
Main technical data of ring butt welding machine for electric fan guards:
-- Machine code: QD-PH25K
-- Rated power: 25KVA
-- Max. pressing force: 1100N
-- Max. welding force: 450N
-- Max. welding section area: 80mm2
-- Welding speed: 5000-10000 pieces per 8 hours shift
-- Dimension: about 850 x 550 x 1150mm
-- Weight: about 300kg
Main technical data of electric fan guards edge trimming machine:
-- Machine code: XB-2
-- Driving motor power: 0.55kW
-- Productivity: 6000-8000 pieces per 8 hours shift
-- Weight: about 80kg
-- Dimension: 600 x 400 x 800mm
Machine list for daily producing 1000 sets fan guards:
1) Automatic inner ring spot welding machine: 2 sets
2) Outer ring welding machine: 1 set
3) Middle ring welding machine: 1 set
4) Hydraulic press: 1set
5) Ring making machine: 1 set
6) Butt welding machine: 1 set
7) Edge trimming machine: 1 set
