High Speed Extruder Cable Extruder Plastic Wire Extrusion Machine Power Cable Extruder PVC Wire Cable Extrusion Machines
1 Set
$39,000Product information
High-quality High Speed Extruder Cable Extruder Plastic Wire Extrusion Machine Power Cable Extruder PVC Wire Cable Extrusion Machines supplied by SWAN Wire Engineering. Bulk wholesale pricing is $39,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Central Height:
1000mm
Rotating Speed Of Screw:
10~110r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
Max. Extrusion Output:
160kg/H(PVC)
L/D Of Screw:
25:1
Certification:
CCC, ISO, CE
Origin:
China
Specifications
Central Height:
1000mm
Rotating Speed Of Screw:
10~110r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
Max. Extrusion Output:
160kg/H(PVC)
L/D Of Screw:
25:1
Certification:
CCC, ISO, CE
Origin:
China
Transport Package:
FCL. Film Wrapping
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Designed Speed:
Max 150m/Min(According to The Cable Size)
Condition:
New
Take Up Bobbin Size:
Pn500 to Pn630
Pay Off Bobbin Size:
Pn500 to Pn630
Model NO.:
SW-JC70/90/120
Trademark:
SWAN
Port Of Loading:
Shanghai Port
Screw:
Single-Screw
Diameter Of Cable Core:
φ1.0mm to 2.76mm
Outer Diameter Of Sheath:
φ1.5mm to 5.0mm
Screw Diameter:
φ70mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier

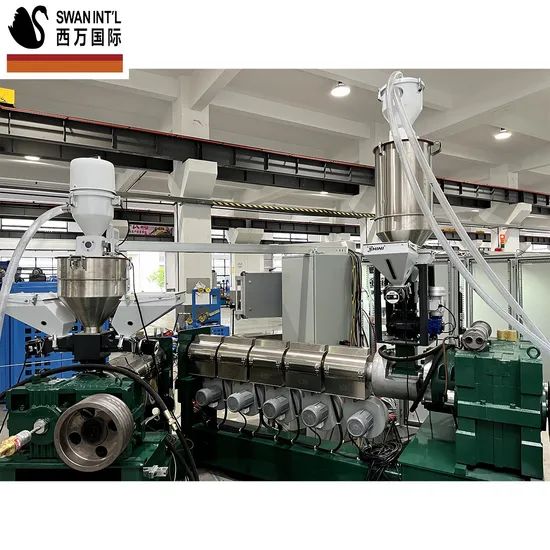

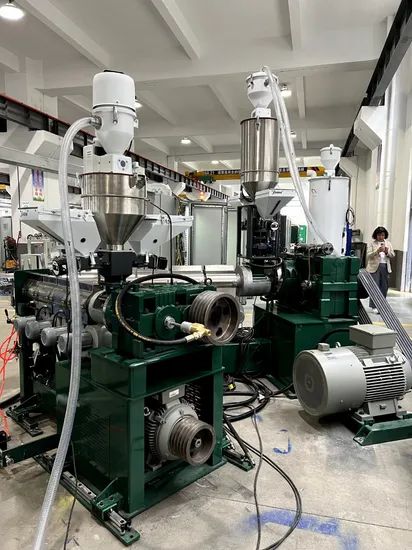

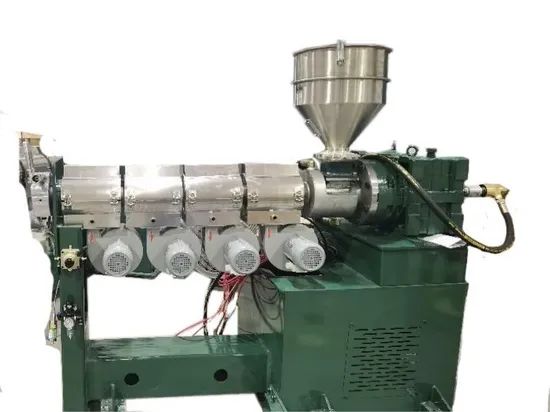

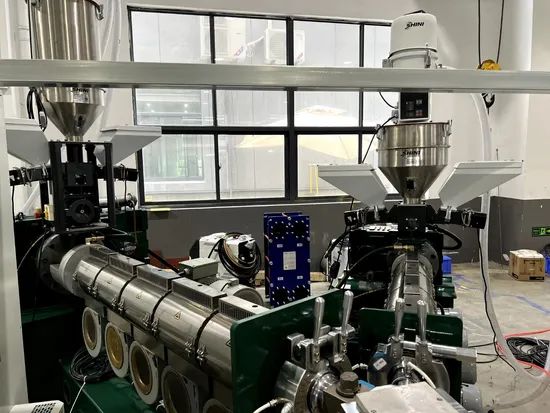

SWAN 70×25 cable extrusion line
Our extruder is driven by Siemens AC frequency-conversion motor and controlled by ABB frequency-conversion speed control device, and RKC microcomputer touch type temperature controller (set by PID) with the accuracy of ±2ºC.

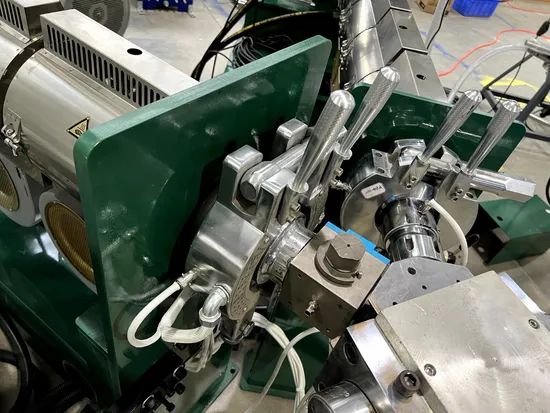

The body of extruder adopts electrical heating and wind cooling by solid state relays, Max heating temperature of extruder barrel is 300ºC. The screw is BM type in order to adapt the internal material processing. The material for screw and barrel is 38CrMoALA with nitridation treatment which is corrosion-resistant and wear-resistant. The surface hardness is ≥HV850 and the nitridation depth is 0.5-0.7mm. The hard tooth face reducer is used for gearbox. The body of gearbox is made of Ductile Iron and Material for gear is 20CrMnTi with nitridation treatment. Transmission shaft uses 40Cr material; the head adopts new three-plate type half clamping which is convenient and reliable.
| Technical Parameters | |
| Diameter of cable core | φ1.0mm to 2.76mm |
| Outer diameter of sheath | φ1.5mm to 5.0mm |
| Designed speed | Max 150m/min(According to cable size) |
| Machine central height | 1000mm |
| Pay-off bobbin size | PN500 to PN630 |
| Take-up bobbin size | PN500 to PN630 |
| Screw diameter | φ70mm |
| L/D of screw | 25:1 |
| Rotating speed of screw | 10r/min to 110r/min |
| Max. extrusion output | 160Kg/h (PVC) |
| Voltage class | Three-phase five-line, 380V/50Hz. |
SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development .
The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service .
Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc .
China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future .
For extruders , pls inform :
1, Max. section
2, Conductor structure ( single or multi-core , pls inform wire number and single wire size )
3, What is the payoff bobbin size
4, What is take up bobbin size ( or you need auto coiling with film wrapping ) ;
5, If you need the online testing units ( Diameter ; pre-heating unit ; sparkle test) ;
6, If you need the printer ( ink or laser jet printer ) ;
7, For extruding capacity ( kgs/hour) , speed ( meters/minute ), what's requirement ?
8, Pls inform me your budget , we can recommend accordingly .
With above specific information ,we can provide quotation accordingly .Thanks .
