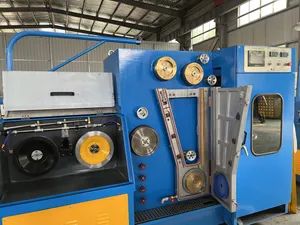

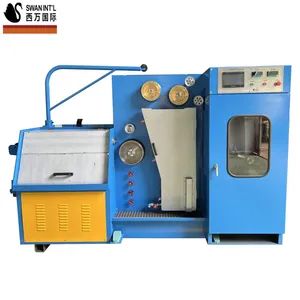

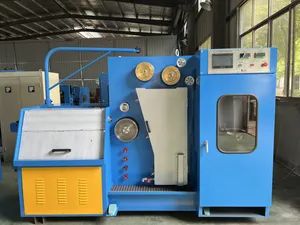

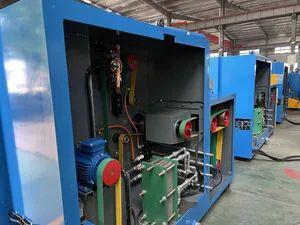

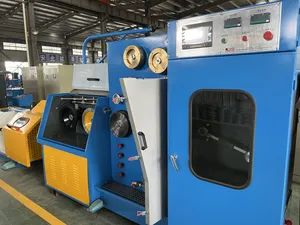

High Speed Fine Copper Wire Drawing Machine (Outlet 0.10-0.52mm ) Wire Drawing Machine with Annealing
Set
Negotiable
Product information
High-quality High Speed Fine Copper Wire Drawing Machine (Outlet 0.10-0.52mm ) Wire Drawing Machine with Annealing supplied by SWAN Wire Engineering. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Outlet Diameter:
0.10-0.52mm
Max.Inlet Wire Dia.:
1.2 mm
Main Motor Power:
15kw
Production Capacity:
15set/Year
Max. Drawing Speed:
2000 m/min
Max. Number Of Block:
24
Max. Drawing Dies Number:
24 Pcs
HS Code:
8463102000
Specifications
Outlet Diameter:
0.10-0.52mm
Max.Inlet Wire Dia.:
1.2 mm
Main Motor Power:
15kw
Production Capacity:
15set/Year
Max. Drawing Speed:
2000 m/min
Max. Number Of Block:
24
Max. Drawing Dies Number:
24 Pcs
HS Code:
8463102000
Origin:
China
Block Dia.:
Customized
Take Up Bobbin Size:
D300
Trade Term:
FOB, CIF, CFR, EXW
Transport Package:
Film Wrapping
Type:
Fine Wire Drawing Machine
Certification:
ISO
Payment Term:
LC, T/T
Condition:
New
Model NO.:
SW-24D
Specification:
SW-24D
Trademark:
SWAN
Port Of Loading:
Shanghai Port
Usage:
Wire
Outlet Wire Size:
φ0.10-φ0.52mm
Inlet Wire Size:
φ0.5-φ1.2mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier
SW-24D Fine Wire Drawing Machine
| Product Parameters | |
| Machine Model | 24D |
| Power Control | Dual Inverter Control |
| Inlet Dia.(mm) | φ0.5-φ1.2mm |
| Outlet Dia.(mm) | φ0.10-φ0.52mm |
| Max Die No. | 24 |
| Max Line Speed(m/min) | 2000m/min |
| Frame Structure | lroned Cast |
| Drawing Capstan | Ceramic Capstan |
| Area Reduction Ratio of Machine | 13% |
| Area Reduction Ratio of Final Capstan | 8% |
| Main Motor Power | 15kw |
| Take up Motor Power | 4kw |
| Max capstan diameter | φ194mm |
| Fix speed capstan diameter | φ159mm |
| Transmission Type | By Flat Belt |
| Take Up Bobbin Size | D300 Bobbin |
| Traversing Type | Synchronous Motor + Belt |
| Take Up Type | Shaft Type |
| Tension Control | Weight Balance Type |
| Lubrication Type | Spray Type |
| Brake | Magnetic Brake |
| Dimension | 2200x1600x1900mm(LxWxH) |
SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development .
The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service .
Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc .
China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future .
How to get a quotation:
For copper wire drawing machine , pls inform :
1: What is the inlet and outlet diameter range;
2: If you need annealing unit;
3: What is your take-up bobbin size ;
With specific above technical information , we can provide quotation accordingly . Thanks .
