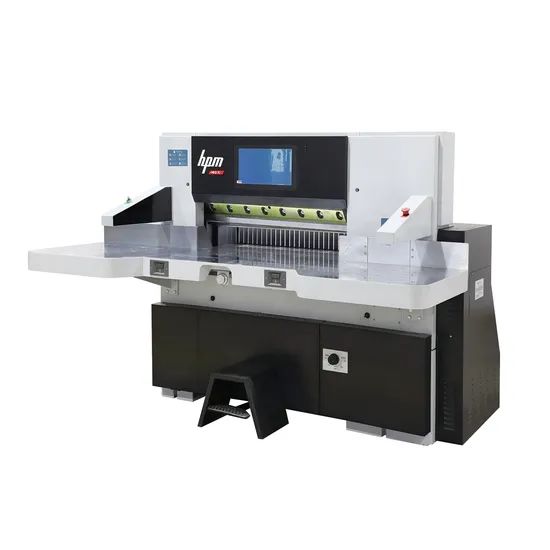

High Speed Intelligent Guillotine Program Control Hydraulic Paper Cutter
1 Set
$15,5002 Set
$15,000Product information
High-quality High Speed Intelligent Guillotine Program Control Hydraulic Paper Cutter supplied by Zhejiang Huayue Packing Machinery Co., Ltd.. Bulk wholesale pricing ranges from $15,000 to $15,500 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
1000 Unit/Year
Full Touch Screen:
16inch
Package Size:
228.00cm * 140.00cm * 188.00cm
Package Gross Weight:
2500.000kg
Max. Backgauge Speed( M/Min):
38m/Min
HS Code:
84411000
Specification:
92/115/130/137/168/188cm
Origin:
China
Specifications
Production Capacity:
1000 Unit/Year
Full Touch Screen:
16inch
Package Size:
228.00cm * 140.00cm * 188.00cm
Package Gross Weight:
2500.000kg
Max. Backgauge Speed( M/Min):
38m/Min
HS Code:
84411000
Specification:
92/115/130/137/168/188cm
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Language:
Eight Languages Can Choose
Trade Term:
FOB, CIF, CFR, EXW
Transport Package:
Fumigated Wooden Case
Colour:
Gray
Trademark:
HPM
Blade Material:
HSS
Driven Type:
Hydraulic
Type:
Industrial Cutter
Payment Term:
LC, T/T, D/P
Port Of Loading:
Ningbo Port, Shanghai Port
Model NO.:
SQZK92/115/130/137/168/188
Classification:
Single-blade Cutter
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1997-03-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
168
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier
S16 Program Control Paper Cutter
Technical Parameter
Configuration Listing
Computer System
1. The up-to-date 15.6" Widescreen LCD, full touch screen;
2. Eight languages to choose.
3. Metric system and British system two units, show the dimensions of the front knife and the back knife.
4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.
5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).
6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
7. With USB, transmit data, to convenient operator make programming and arrangement via PC.
8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.
9. The backgauge is driven by a Inovance servo-motor with four speed levels.
10. Use Italy oil pump and hydraulic system.
Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2. Clamp press paper stack through hydraulic system, the spring re-position.
3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE and Japanese ORMON famous international brands.
Technical Parameter
Configuration Listing
| No. | Name | Brand, specification & model | Origin of brand |
| 1 | Background LCD | 16''Color touch Interface | China |
| 2 | PLC | Inovance | China |
| 3 | Backgauge position motor |
Inovanceservo motor | china |
| 4 | Pick-up | Autonics | Korea |
| 5 | Limit switch | TE | France |
| 6 | Guarding motor | TE | France |
| 7 | Air switch | TE | France |
| 8 | AC Contactor | TE | France |
| 9 | Miniature relay | TE | France |
| 10 | Switching power supply |
TE | France |
| 11 | Power switch | CANSEN | China |
| 12 | Press-button | TE | France |
| 13 | Ball screw | High accurate | China |
| 14 | Linear guider | High accurate double linear guides |
Taiwan |
| 15 | Hydraulic system | Combination Valve | Germany |
| 16 | Oil Pump | HP | Italy |
| 17 | Bearing | NSK | Japan |
| 18 | Work Table | Slotless and plated chromium work table |
China |
| 19 | Photocell | Allen-Bradley | China |
| 20 | knife | HSS | China |
Computer System
1. The up-to-date 15.6" Widescreen LCD, full touch screen;
2. Eight languages to choose.
3. Metric system and British system two units, show the dimensions of the front knife and the back knife.
4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.
5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).
6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
7. With USB, transmit data, to convenient operator make programming and arrangement via PC.
8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.
9. The backgauge is driven by a Inovance servo-motor with four speed levels.
10. Use Italy oil pump and hydraulic system.
Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2. Clamp press paper stack through hydraulic system, the spring re-position.
3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE and Japanese ORMON famous international brands.
