High Speed Maxi Roll Paper Products Making Machine Production Line
Set
Negotiable
Product information
High-quality High Speed Maxi Roll Paper Products Making Machine Production Line supplied by FUJIAN XINYUN MACHINERY DEVELOPMENT CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Width Of Jumbo Roll:
1.2m---2.8m (as Per Request)
Production Capacity:
100 Sets/Year
Cutting Speed:
15-20rolls/Min
Cutting Diameter:
150-280mm
Rewinding Speed:
200 Meter/Minute
HS Code:
84418090
Control:
Automatic
Toilet Paper Type:
Core and Without Core
Specifications
Width Of Jumbo Roll:
1.2m---2.8m (as Per Request)
Production Capacity:
100 Sets/Year
Cutting Speed:
15-20rolls/Min
Cutting Diameter:
150-280mm
Rewinding Speed:
200 Meter/Minute
HS Code:
84418090
Control:
Automatic
Toilet Paper Type:
Core and Without Core
Specification:
Customize service
Automatic Function:
Embossing, Perforating, Gluing, Trimming
Trade Term:
FOB, CFR, CIF, EXW
Origin:
Fujian, China
Embossing Type:
Full Embossing or Edge Embossing
Embossing Pattern:
Full or Edge Embossing
Payment Term:
LC, T/T, Western Union
Type:
Paper Embossing Machine
Function:
Rewinder
Embossing Roller:
Rubber Roller
Machine For:
Small Toilet Tissue Paper Making Machine
Embossing Roll:
Steel to Rubber
Color Of Machine:
White or Customized
Transport Package:
Wooden Pallet
Model NO.:
XY-TQ-B-500
Port Of Loading:
Xiamen
Trademark:
Xinyun
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-09-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Xiamen
Certificates:
CE Certification of tissue paper converting machine, Production Assessment Certification, SGS
Product descriptions from the supplier
High speed maxi roll paper products making machine production line XY-TQ-B-500
Description of the equipment:

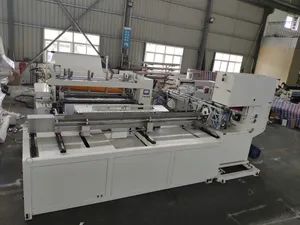

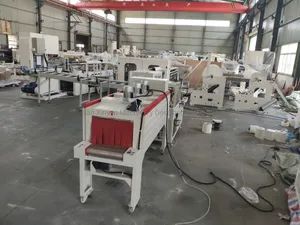

This production line is consisted with automatic maxi roll jumbo roll paper machine, maxi roll jumbo roll paper cutting machine and shrink packing machine.

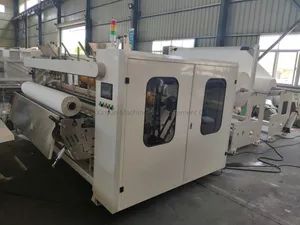

Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Video Link:https://youtu.be/WmUh_m-jOng
https://youtu.be/DDVQ18XcEzE
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be replywithin 24 hours
For all the machines we sell, we will offertwo-years guaranteefor free and all life maintenance.
We will delivera DVD of Operation Videowith machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Welcome to contact us to get more details!
We can design the machine according to your request.
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Description of the equipment:
This production line is consisted with automatic maxi roll jumbo roll paper machine, maxi roll jumbo roll paper cutting machine and shrink packing machine.
Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Video Link:https://youtu.be/WmUh_m-jOng
https://youtu.be/DDVQ18XcEzE
|
Machine Model |
1092B |
1575B |
2000B |
2200B |
2400B |
2600B |
2800B |
|
Width of jumbo roll (mm) |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
|
Finished Products Diameter |
Φ90~280mm (Tightness can be adjustable) |
||||||
|
Finished Products Inner Diameter |
Φ38-76mm |
||||||
|
Jumbo roll diameter (mm) |
Φ1200 (Other sizes please point out) |
||||||
|
Jumbo Roll Inner Diameter |
76.2 mm (other sizes please point out) |
||||||
|
Perforation distance (mm) |
4 blade,90~150mm; 2 blade,180~300mm; |
||||||
|
Production speed |
200 m/minute |
||||||
|
Controller |
PLC program |
||||||
|
Mechanical driving |
Driven by stepless regulator to guarantee the precise length of final products. |
||||||
|
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) |
||||||
|
Power |
7.5kw-15kw (380V 50Hz) |
||||||
|
Overall size (L×W×H) |
6200X2750X1800 mm |
||||||
|
Weight of equipment |
About 3-5T |
||||||
|
Chosen items (Should be ordered separately) |
|||||||
|
Embossment |
Single embossment, Double embossment, Edge embossment |
||||||
|
Embossment down roller |
Paper roller, rubber roller |
||||||
|
Jumbo roll stander |
1-3 plies (Please point it out) |
||||||
|
Printing unit |
Single color heliotype printing unit |
||||||
|
Lamination unit |
Glue lamination unit or color embossing lamination system |
||||||
|
Slitting unit |
Slitting unit and use aluminous shaft to hold the paper core for rewinding, slitting width is adjustable |
||||||
|
Other special request for machine is welcome |
|||||||
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be replywithin 24 hours
For all the machines we sell, we will offertwo-years guaranteefor free and all life maintenance.
We will delivera DVD of Operation Videowith machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Welcome to contact us to get more details!
We can design the machine according to your request.
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
