High Speed Mixer Disperser with Lift Stand for Paint
1-9 Piece
$1,90010-49 Piece
$1,80050-99 Piece
$1,700100-299 Piece
$1,500300 Piece
$1,200Product information
High-quality High Speed Mixer Disperser with Lift Stand for Paint supplied by Wenzhou Ranking Imp. & Exp. Co., Ltd.. Bulk wholesale pricing ranges from $1,200 to $1,900 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
1.5kw~4kw
Production Capacity:
2000 Sets Every Season
Lift Head:
500mm
HS Code:
8479820090
Certification:
CE
Application Area:
Chemical
Operating Type:
Cycle Operating
Mixer Type:
Dispersor
Specifications
Specification:
1.5kw~4kw
Production Capacity:
2000 Sets Every Season
Lift Head:
500mm
HS Code:
8479820090
Certification:
CE
Application Area:
Chemical
Operating Type:
Cycle Operating
Mixer Type:
Dispersor
Mixing Drum Shape:
Drum
Trade Term:
FOB, CIF, CFR, EXW
Stirring Type:
Forced
Origin:
Guangzhou, China
Working:
High Speed Mixer
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Lift By:
Lifting Chain
Condition:
New
Port Of Loading:
Ningbo Port, Shanghai Port
Trademark:
Ranking
Contact Part:
SS304
Layout Type:
Verticle
Transport Package:
Wooden Case
Model NO.:
dispersor
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-02-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Our Business License
Product descriptions from the supplier
high speed DESCRIPTION with LIFT

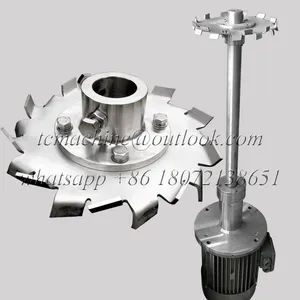

A disperser functions as a single-axis mixer designed to break down or evenly distribute solid components within a liquid. This process relies on a toothed disc that spins rapidly, reaching speeds of about 3000 rpm. The Cowles-type disc generates strong shear action on the materials being mixed, effectively reducing particle size. By carefully choosing the right disc dimensions and configuration, a consistent circulation pattern is created, ensuring the entire mixture is thoroughly agitated and uniformly blended. These mixers are typically applied to low-resistance liquids such as paints.
Variable speed mixing shaft dispersers are available.

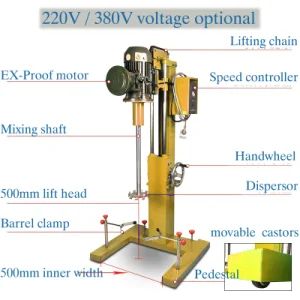

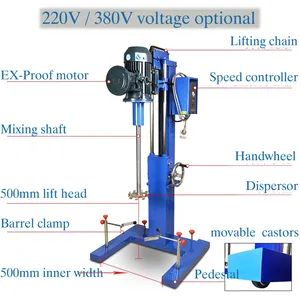

A few models are permanently installed in the tank and function only when the disc remains in its initial setup. Others feature a vertical adjustment mechanism, enabling the disc to be moved several feet up or down inside the tank for improved vortex management. One widely adopted solution mounts the disperser on a floor-based hydraulic lift. This setup lets the operator fully extract the disc from the vessel and transfer it to a different container. This method works best with compact, mobile tanks (maxing out at 500 gallons) that can be moved manually or raised using a forklift. Large, fixed tanks are typically positioned within the path of the rotating arm, spanning from the lift’s pivot point to the mixer’s central axis. The support frame, connecting the motor to the shaft, is then turned to service the next tank. Ultimately, the ideal disperser setup depends on both operational requirements and cost-effectiveness.
CHARACTERISTICS OF THE MACHINE
Dissolves, deagglomerates, disperses, emulsifies
TANK MOUNTED DISPERSER price
Please contact our online service team to get the latest price.
A disperser functions as a single-axis mixer designed to break down or evenly distribute solid components within a liquid. This process relies on a toothed disc that spins rapidly, reaching speeds of about 3000 rpm. The Cowles-type disc generates strong shear action on the materials being mixed, effectively reducing particle size. By carefully choosing the right disc dimensions and configuration, a consistent circulation pattern is created, ensuring the entire mixture is thoroughly agitated and uniformly blended. These mixers are typically applied to low-resistance liquids such as paints.
Variable speed mixing shaft dispersers are available.
A few models are permanently installed in the tank and function only when the disc remains in its initial setup. Others feature a vertical adjustment mechanism, enabling the disc to be moved several feet up or down inside the tank for improved vortex management. One widely adopted solution mounts the disperser on a floor-based hydraulic lift. This setup lets the operator fully extract the disc from the vessel and transfer it to a different container. This method works best with compact, mobile tanks (maxing out at 500 gallons) that can be moved manually or raised using a forklift. Large, fixed tanks are typically positioned within the path of the rotating arm, spanning from the lift’s pivot point to the mixer’s central axis. The support frame, connecting the motor to the shaft, is then turned to service the next tank. Ultimately, the ideal disperser setup depends on both operational requirements and cost-effectiveness.
CHARACTERISTICS OF THE MACHINE
Dissolves, deagglomerates, disperses, emulsifies
| Motor power | 0.75KW | 1.5KW | 2.2KW | 4KW |
| Motor type | normal / explosion-proof | |||
| Speed controller | inventer | Frequency converter | ||
| Speed range | 0~2980rpm | |||
| Voltage | 220V / 380V | |||
| Lift type | manual / electric | |||
| Lift space | 400mm | 500mm | 500mm | 500mm |
| Weight | 190kg | 220kg | 240kg | 260kg |
Please contact our online service team to get the latest price.
