High Speed PP Yarn Wire Drawing Machine
SET
Negotiable
Product information
High-quality High Speed PP Yarn Wire Drawing Machine supplied by Zhejiang Kewang Machinery Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max Extrusion Output:
200-700kgs/H
Dimensions Of Bobbin:
38*230
Production Capacity:
60 Set Per Year
Flat Yarn Denier Scope:
60-200tex
HS Code:
8479400000
Width Of Die:
850-2000mm
Automation:
Automatic
Computerized:
Computerized
Specifications
Max Extrusion Output:
200-700kgs/H
Dimensions Of Bobbin:
38*230
Production Capacity:
60 Set Per Year
Flat Yarn Denier Scope:
60-200tex
HS Code:
8479400000
Width Of Die:
850-2000mm
Automation:
Automatic
Computerized:
Computerized
Exhaust:
Exhaust
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
KWXJ
Payment Term:
LC, T/T, D/P, Western Union, Small-amount payment, PayPal
Condition:
New
Port Of Loading:
Ningbo Port
Feeding Mode:
One Feed
Tape:
PP PE Tape Drawing Machine
Specification:
SGS
Model NO.:
SJMS
Assembly Structure:
Separate Type Extruder
Screw:
Single-Screw
Origin:
Wenzhou, Zhejiang
Transport Package:
as Your Reqeust
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-12-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
7
Preferred Payment Term:
LC, T/T, D/P, Western Union, Small-amount payment, PayPal
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
patent
Product descriptions from the supplier
Plastic Yarn/ Tape Extruder/ Extrusion Machine For Woven Bag/Sack
Peformance And Characteristics:
The stretching line is adopted micro-processor control, frequency conversion governor and setting and displaying technical data may be fully digitized on the basis of absorbing international advanced techniques. The main parts use quality products. The line enlarges L/D ratio and adopts new type of separating screw and widens mixing smelt zone on the extruder screw pot which is specially processed using quality steel, fine plasticized effect, low energy consumption in relation to output. For the change filter system of the flat film stretching line, we apply advanced automatic belt change filter. The bake-board is changed into advanced hot drawing oven and principal technical index of the line reaches international advancing level. The winding machine is of friction-free drive and constant tape tension wind, good formation quality of the fiber drum. The line has the performance of high speed, top yield, low energy consumption, good forming quality of the fiber drum. The structure of the line is compact with a pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production, it can be used in producing flat fiber form thermoplastic, such as polypropylene (PP) and high-density polyethylene (HDPE) etc.
The tape stretching line is consists of an extruder, a screen changer, a die, a water quench system, a film take-off and slitting film into tapes device, a traction system, a hot air oven, a stretching and annealing unit, a winding unit, edge tape and waste tapes reclaim system as well as electric control cabinet, etc.
Main technical Parameter and device
Machine photos and patents:
Our Service
Warranty
* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Engineers available to offer service overseas.but client please undertake travelling expenses for them.
FAQ
A: We are factory which have export right. We have exported our machine to so many countries like Pakistan,Malaysia Indonesia,Philippines,Egypt,Turkey,Russia,Ukraine,Serbia,Moldova&Colombia.
A: Generally it is 50 days after getting deposit.
A: Usually 30% T/T in advance ,balance before delivery.
Peformance And Characteristics:
The stretching line is adopted micro-processor control, frequency conversion governor and setting and displaying technical data may be fully digitized on the basis of absorbing international advanced techniques. The main parts use quality products. The line enlarges L/D ratio and adopts new type of separating screw and widens mixing smelt zone on the extruder screw pot which is specially processed using quality steel, fine plasticized effect, low energy consumption in relation to output. For the change filter system of the flat film stretching line, we apply advanced automatic belt change filter. The bake-board is changed into advanced hot drawing oven and principal technical index of the line reaches international advancing level. The winding machine is of friction-free drive and constant tape tension wind, good formation quality of the fiber drum. The line has the performance of high speed, top yield, low energy consumption, good forming quality of the fiber drum. The structure of the line is compact with a pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production, it can be used in producing flat fiber form thermoplastic, such as polypropylene (PP) and high-density polyethylene (HDPE) etc.
The tape stretching line is consists of an extruder, a screen changer, a die, a water quench system, a film take-off and slitting film into tapes device, a traction system, a hot air oven, a stretching and annealing unit, a winding unit, edge tape and waste tapes reclaim system as well as electric control cabinet, etc.
Main technical Parameter and device
| Type | SJMS-Z75-33-850*8 | SJMS-Z90-33-1000*8 | SJMS-Z110X33-1200*8 | SJMS-Z120X33-1500*8 | SJMS-Z160X33-2000*8 |
| Max extrusion output(kg/h) | 200 | 280 | 380 | 500 | 630 |
| Diameter of Screw(mm) | 75 | 90 | 110 | 120 | 160 |
| L/D ratio of screw | 33: 1 | 33: 1 | 33: 1 | 33: 1 | 33: 1 |
| Rotational speed of screw(r/min) | 20-120 | 20-120 | 20-120 | 20-120 | 20-100 |
| Width of die(mm) | 850 | 1000 | 1200 | 1500 | 2000 |
| Man linear speed(m/min) | 280 | 280 | 400 | 400 | 400 |
| Flat yarn denier scope | 60-200tex | 60-200tex | 60-200tex | 60-200tex | 60-200tex |
| Drawing rate | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 |
| Number of winder(spindles) | 136 | 176 | 208 | 256 | 344 |
| Dimensions of bobbin(D*L)mm | 38*230 | 38*230 | 38*230 | 38*230 | 38*230 |
| System installed power(kw) | 120 | 160 | 170 | 210 | 250 |
| Normal consumption power | 120 | 160 | 170 | 210 | 250 |
| Installing dimensions(L*W*H)mm | 29000×3600×3200 | 32000×3600×3200 | 34000×3800×3200 | 37000×3800×3200 | 45000×3800×3200 |
| Weight(kg) | 21000 | 26000 | 30000 | 32000 | 40000 |

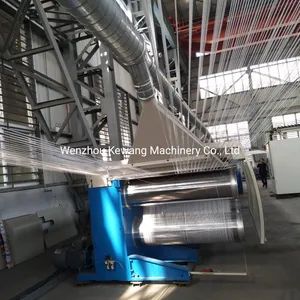

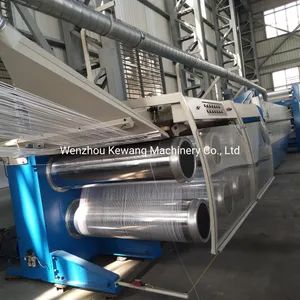

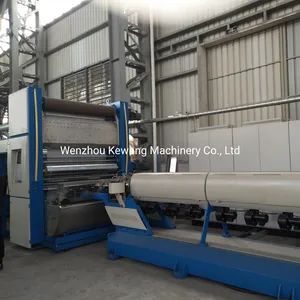

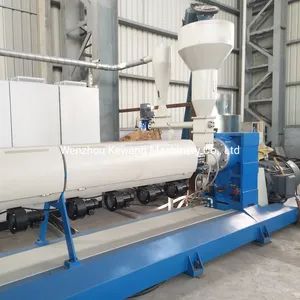

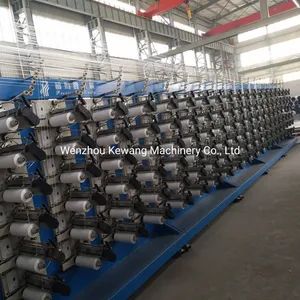

Machine photos and patents:
Our Service
Warranty
* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Engineers available to offer service overseas.but client please undertake travelling expenses for them.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory which have export right. We have exported our machine to so many countries like Pakistan,Malaysia Indonesia,Philippines,Egypt,Turkey,Russia,Ukraine,Serbia,Moldova&Colombia.
Q: How long is your delivery time?
A: Generally it is 50 days after getting deposit.
Q: What is your terms of payment ?
A: Usually 30% T/T in advance ,balance before delivery.
