High Speed PVC PE Plastic Extruders Wire Cable Extrusion Machine
Piece
Negotiable
Product information
High-quality High Speed PVC PE Plastic Extruders Wire Cable Extrusion Machine supplied by DongGuan RuiBo Machinery Co. Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Package Size:
1220.00cm * 2500.00cm * 2900.00cm
Package Gross Weight:
3800.000kg
Power:
415V 50Hz
Specification:
50mm+35mm
Model NO.:
50mm+35mm
HS Code:
84772090
Colour:
Blue / Green/ White
Specifications
Warranty:
12 Months
Package Size:
1220.00cm * 2500.00cm * 2900.00cm
Package Gross Weight:
3800.000kg
Power:
415V 50Hz
Specification:
50mm+35mm
Model NO.:
50mm+35mm
HS Code:
84772090
Colour:
Blue / Green/ White
Certification:
CE
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Guangzhou Port
Feature:
High Quality
Name:
High Speed Extrusion Machine
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Material:
PVC\PE
Trademark:
RuiBo
Screw:
Single-Screw
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-05-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
11
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Guangzhou Port
Certificates:
SGS
Product descriptions from the supplier

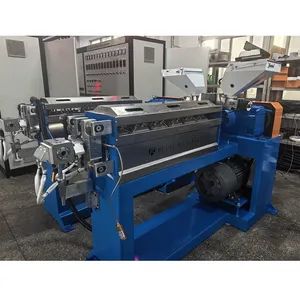

High Speed PVC PE Plastic Extruders Wire Cable Extrusion Machine
50mm+35mm High Speed Extrusion Machine
The 50mm+35mm high-speed extrusion machine is a kind of extrusion equipment, in which 50mm represents the diameter of the main screw, and 35mm may represent the diameter of the auxiliary screw or other relevant dimensions.
Purpose:
Suitable for auto wire: CIVUS, AVSS, AVS, CAVS, AV
| Material | PVC\PE |
| OD | Φ0.8-Φ3.0mm;ConductorCross-Sectional Area:0.13mm-2.5mm² |
| Line Speed | Max:1100m/min |
| Center Height | 1000mm |
| Power | 415V 50HZ |
| Direction | From Lift to right /right to lift |
| Colour | Blue / Green/ white |
Equipment:
| Item | Equipment details | Specifications | Quantity | Remarks |
|
1
|
Medium-sized wire drawing machine | 1set | ||
|
2
|
High Frequency pre-heater | Max.speed 1100m/min | 1set | Adwantek SZ |
|
3
|
Straightening Device | 1set | ||
|
4
|
Φ50mm Extruder | 20HP AC Motor | 1set | |
|
5
|
Φ35mm injection machine | 10HP AC Motor | 1set | |
|
6
|
Color master batch machine | Double head | 2sets | SHINI |
|
7
|
PLC Control Panel | 1set | Siemens | |
|
8
|
Cooling Tank | 1.5M+10M SUS304 | 1set | |
|
9
|
Laser diameter gauge | Automatic control the diameter | 2sets | Hot/Cold |
|
10
|
Capstan | sprayer type of water cooling | 1set | Servo system |
|
11
|
Air wiper & Dryer System | 1set | ||
|
12
|
High frequency spark tester | 1set | ||
|
13
|
Automatic Reel Changer machine | Φ630mm | 1set | |
|
14
|
Spare parts /tools | LED Display | 1set |
Brands:
Inverter and motor : Siemens Brands;
Temperature Meter : PID Japan RKC Brand ;SR Control;
Thermosphere: Cast aluminum;
Specification
(1)HighFrequency pre-heater
(2)Straightening Device
(3)Φ50mm Extruder
(4)Φ35mm Injection machine
(5)Color master batch machine
(6)PLC Control Panel
(7)Front Cooling Tank
(8)Laser diameter gauge
(9)Capstan
(10)High frequency spark tester
(11)Automatic Reel Changer machine
(12)Spare Parts
Temperature Meter : PID Japan RKC Brand ;SR Control;
Thermosphere: Cast aluminum;
Specification
(1)HighFrequency pre-heater
| Number | Name | Specifications | Quantity |
| 1 | pre-heater | 1set | |
| Suitable for copper conductor Cross Section: 0.13mm²- 4mm² Type: Induction type Voltage: 415V, 50 HZ Frequency: 4000HZ Pulley OD: 300mm Heating temperature: 0-200Deg.C (with temperature Indicator) Speed: 30m-1000m/min. |
|||
| Number | Name | Specifications | Quantity |
| 1 | Straightening Device | 1set | |
| Used for straightening conductors | |||

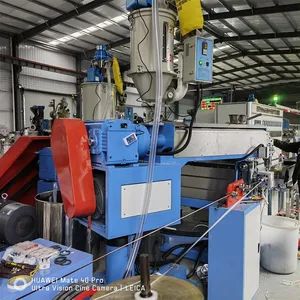

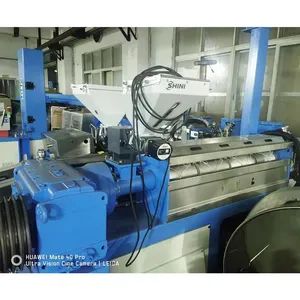

(3)Φ50mm Extruder
| Number | Name | Specifications | Quantity |
| 1 | 50mm Extruder | 1set | |
|
Material:suitable for PVC,PE
Extrusion capacity:60KG/HR
Screw: designed by Krong Co. (Canada), material SACM, Nitrated and hardness treated. Ratio: 26:1,
Compression Ratio: 2.50
Barrel: material SACM, nitrated and hardness treated. Hardness at R2-R3 degree.
Gear box: cast steel. Material of gear: high quality of alloy steel. (1:10)
Clamp: 2 sides of screw fastener.
Heater: 7 zones of heater.3 zones for barrel and 4zones for neck & head. With 3sets of cooling fans
Compound Dryer and Auto loader hopper: capacity50kg.(SHINI)_
Motor: Siemens Brand18.5KW (25hp)and Siemens inverter.
Max. Screw RPM @ 50Hz :110rpm
Cross head: self-centre type with Discharge Valve |
|||
(4)Φ35mm Injection machine
| Number | Name | Specifications | Quantity |
| 1 | 35mm injection | 1set | |
|
Material:suitable for PVC,PE
Extrusion capacity:30KG/HR
Screw: designed by Krong Co. (Canada), material SACM, Nitrated and hardness treated. Ratio: 16:1,
Compression Ratio: 2.50
Barrel: material SACM, nitrated and hardness treated. Hardness at R2-R3 degree.
Gear box: cast steel. Material of gear: high quality of alloy steel.(1:16)
Clamp: 2 sides of screw fastener.Heater: 6 zones of heater. 3 zones for barrel and 3 zones for neck & head. With 3sets of cooling fans Compound Dryer and Auto loader hopper: capacity 16kg.(SHINI)- Motor: Siemens Brand7.5KW(10HP)and Siemens inverter. |
|||
(5)Color master batch machine
| Number | Name | Specifications | Quantity | Function |
| 1 | Color master batch machine | double head | 2set | SHINI |
(6)PLC Control Panel
| Number | Name | Specifications | Quantity |
| 1 | Control Panel | 1set | |
|
1 No. of Touch Screen (HMI); PLC: Siemens brand,
Temperature meter (PID): Japan RKC brand. SR control;
Main extruder and capstan setting as single (Recipe Setting) and synchronize by PLC.
Electroheat temperature control: Several temperature control zones
Power control: Controlled by master switch and branch switches
Motor operation control: Each motor controlled by frequency converter respectively
Voltage Meter: Display voltage Electroheat and current meter: Display each temperature parts directly
Control of cooling fan: Controlled by RKC temperature controller,let temperature curve tends to flat |
|||

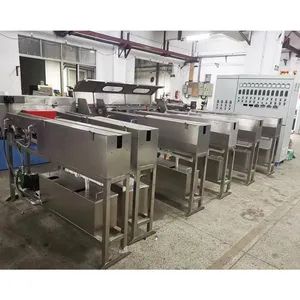

(7)Front Cooling Tank
| Number | Name | Specifications | Quantity |
| 1 | Cooling Tank | 1.5m+3m | 1set |
|
2mm stainless (SUS304) made, movable Length 300mm
Telescopic gullets: U-type single-layer type,telescopic length 300mm,
attached loading water tanks, air trough the end of gullets accompanied by drying, and the superstructure to prevent soft drinks outside the spill trough
Blow dry device 10m sprayer type of water cooling |
|||
(8)Laser diameter gauge
| Number | Name | Specifications | Quantity |
| 1 | Laser diameter gauge | 2set | |
| Automatic control of wire diameter Check the hot and cold diameter |
|||

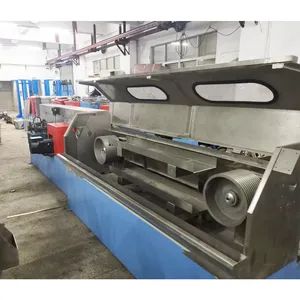

| Number | Name | Specifications | Quantity |
| 1 | Capstan | 1set | |
|
Type: Double wheels box-type structure
Pulley OD:φ400mm, 12 grooves
Speed: Max:1100m/min
Material: Aluminum Alloy Cast Aluminum precision processing
Driver:10HP motor Servo system
The lifting of the water tank door adopts the oil pressure system |
|||
(10)High frequency spark tester
| Number | Name | Specifications | Quantity |
| 1 | spark tester | 1set | |
|
Brand: Taiwan made
Test Voltage: 500V-15KV
Test frequency: 3KHz
Test OD: 25mm, test length: 50mm
|
|||
| Number | Name | Specifications | Quantity |
| 1 | Take-Up | 630mm | 1set |
| The high-speed automatic reel changer is suitable for the closing of core wires such as electronic wires, telephone wires, automotive wires, and network wires Fully automatic double-reel winding unit A. Applicable size:Ø630mm x 375mm x Ø56 mm B. Maximum design speed:1200 m/min C. The speed of the wire winding machine is automatically adjusted by the pneumatic wire storage device, following the speed of the main unit D. Disc change rate:More than 99% E. Tray loading and unloading methods:Fully automatic tray loading and unloading, as well as automatic tray loading and unloading F. Ribbon cable pitch:On-line adjustable on screen G. Winding drive motor:11kw (servo motor) H. Ribbon cable drive motor:0.75kw servo motor J. Wire-passing guide wheel: The wire-passing wheel groove is treated with ceramic magnetic spraying |
|||
|
Heaters: 1 set
Thermometer:1set
Fuse; 2 pcs
Relay: 2 pcs
Switch: 2 pcs
Potentiometer: 2 pcs
Tools :1 sets
|
Dongguan RuiBo Machinery Equipment Co., Ltd. is a set of technology development, production, sales and service as one of the integrated enterprise, after these years of all my colleagues in the unremitting efforts, already developed into one-stop supply and marketing high-quality wire and cable equipment suppliers.
The company specializing in the production of rubber extruder, silicone extrusion machine, electric cutter insulating sheath extrusion machine, PC cable special extruding machine, power cord stereo headphones line extrusion machine, stranding machines, single twister, winding machine, tin machine, wire cutting machine and swaying tray machine, such as a variety of wire and cable equipment, including extrusion machine, wire cutting machine, swaying tray machine through technology unceasing improvement have been walking in front of peers, become the fist product of the company.
The company has advanced lathes, milling machines, grinding and other processing equipment, in the production of equipment at the same time to provide customers with the whole plant equipment planning, equipment maintenance,technical personnel training and other services.
The company has a group engaged in wire and cable machinery manufacturing of outstanding professionals, products are exported to Taiwan, Hong Kong, Southeast Asia, South America and other regions, has annual sales of over 10 million, customers all over the country and all our colleagues adhering to the "people-oriented. scientific and technological innovation, and uphold the credibility, the pursuit of excellence" business philosophy; to "first-class products" as the quality objectives, "integrity management" for the purpose of service, with unity and pragmatic, hard continuous innovation spirit to win new and old customers rely on and support.
Q1.Are you the manufacturer or trading company?
-A:We are the manufacturer.Our company has a technical administration team who.
engages wire and cable equipment industrial more years.
Q2.What is your company's main production?
-A:Our main production cable laying up machine, stranding machine,cable extrusion machine.
Q3.how can i get quotation and make order?
-A:Send us your requests,we will quote exactly cost.
Q4.How long will the delivery time take?
-A:About 80 days
Q5.How is the after-sales service of your company?
-A:We have a strong after-sales service team to provide super after-sales service, We can send out our engineers without 2 days to solve customer's problem.
Q6.What is your machine quality?
-A:We have a strong quality inspection team.Before shipping out machine,we will check and ensure the good quality.
