High Speed Plastic PVC Resin CaCO3 Powder Mixing Machine Unit PVC Mixer
1-2 Piece
$15,0003 Piece
$6,000Product information
High-quality High Speed Plastic PVC Resin CaCO3 Powder Mixing Machine Unit PVC Mixer supplied by Zhangjiagang City Qiangsheng Plastic Machinery Co., Ltd.. Bulk wholesale pricing ranges from $6,000 to $15,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty:
1 Year
Max.Output(Kg/H):
1000 Kg/H
Package Gross Weight:
1000.000kg
Screw Speed (Rpm):
120 Rpm
Pipe Diameter:
20-1200mm
Production Capacity:
20PC/Month
Package Size:
2400.00cm * 230.00cm * 300.00cm
Specification:
25000*1200*1800MM
Specifications
Warranty:
1 Year
Max.Output(Kg/H):
1000 Kg/H
Package Gross Weight:
1000.000kg
Screw Speed (Rpm):
120 Rpm
Pipe Diameter:
20-1200mm
Production Capacity:
20PC/Month
Package Size:
2400.00cm * 230.00cm * 300.00cm
Specification:
25000*1200*1800MM
Voltage:
380V/220V/440V
Screw Material:
38crmoala
Power:
550 Kw
HS Code:
8501109190
Inverter:
ABB Brand
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Showroom Location:
Egypt, Turkey, Italy, Viet Nam, Saudi Arabia
Trade Term:
FOB, EXW, CFR, CIF, CIP
Payment Term:
LC, T/T, Western Union
Core Components:
Motor, Pump, PLC, Pressure Vessel, Gearbox, Screw
Temperature Control:
Omron Brand
Transport Package:
PE Film Winding Wrapping
Name:
Plastic PVC Resin CaCO3 Powder Mixing Machine.
Machinery Test Report:
Provided
Trademark:
Qiangsheng
Port Of Loading:
SHANGHAI, TAICANG
Model NO.:
SRL-Z
Main Motor:
Siemens Brand
Control:
Siemens PLC+Touch Screen
Payment Methods:
Support payments in USD
Structure:
Vertical
Usage:
Water/Gas Pipe
Origin:
Zhangjiagang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP
Port Of Loading:
SHANGHAI, TAICANG
Certificates:
CE
Product descriptions from the supplier
| Product Description |

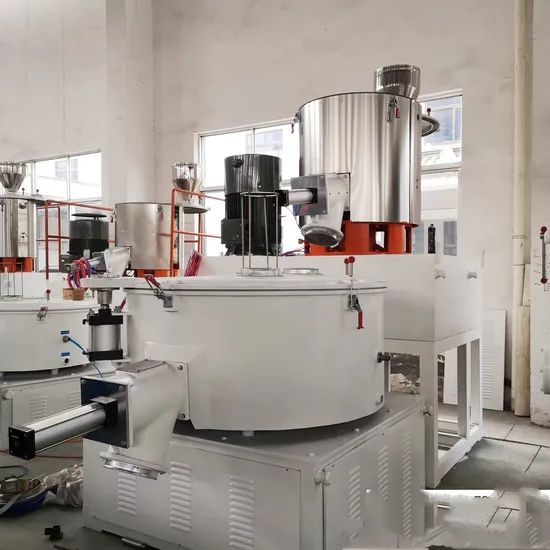

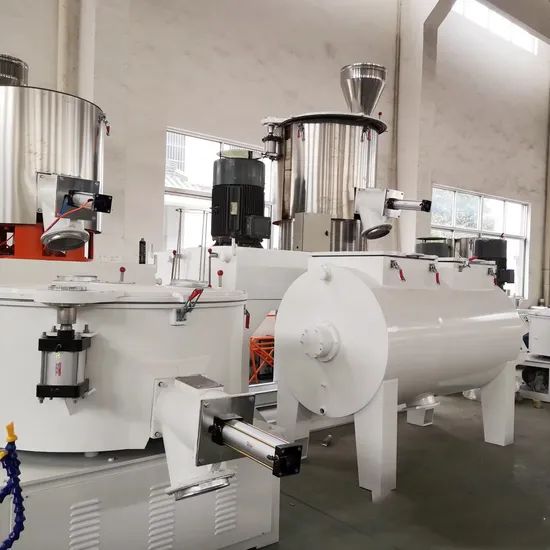

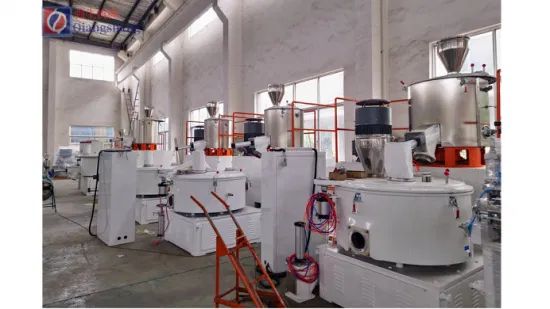

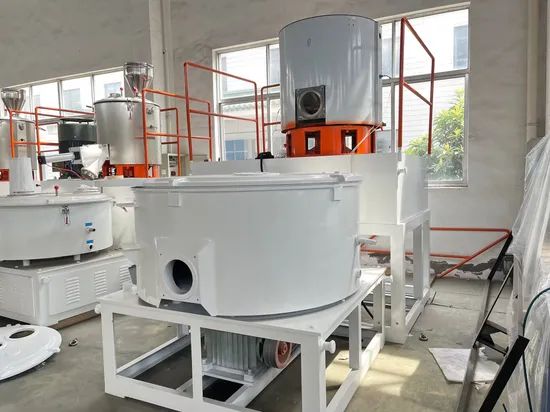

HIGH SPEED MIXING UNIT
1.SRL-Z Series high speed mixing unit is applicable for mixing, coloring and drying of various resin, such as polyethylene,
polypropylene, polyvinyl chloride, etc. and in the craft of engineering plastics such as ABS, polycarbonate etc. before forming and processing as well as in the mixing of phenolic resin.
2. High speed mixing unit combines heat mixing and cooling mixing craft together. the materials after heat mixing can be conveyed to cool mixer for cooling automatically, exhaust remaining gases and prevent agglomeration.
3. High speed mixing unit model by adopting PLC control, it features high automatic level, and good mixing result.
4. High speed mixing unit paddles have passed the test of dynamic and static equilibrium. the lid adopts double concave-convex seal.Main axis seal adopts sepcial tech of our company,also equipped with pulse dust catching device.
polypropylene, polyvinyl chloride, etc. and in the craft of engineering plastics such as ABS, polycarbonate etc. before forming and processing as well as in the mixing of phenolic resin.
2. High speed mixing unit combines heat mixing and cooling mixing craft together. the materials after heat mixing can be conveyed to cool mixer for cooling automatically, exhaust remaining gases and prevent agglomeration.
3. High speed mixing unit model by adopting PLC control, it features high automatic level, and good mixing result.
4. High speed mixing unit paddles have passed the test of dynamic and static equilibrium. the lid adopts double concave-convex seal.Main axis seal adopts sepcial tech of our company,also equipped with pulse dust catching device.
| Technical Parameter for Mixer : |
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Effective Cubage (L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
| Mixed Speed (rpm) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
| Mixed Time (min ) | 8-12 | 8-12 | 8-12 | 8-12 | 8-15 |
| Motor Power (kw) | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Diemension ( LXWXH) MM | 1950X1600X1800 | 4580X2240X2470 | 4700X2640X2480 | 4900X3000X4050 | 5170X3200X4480 |
| Weight ( kg ) | 2200 | 3400 | 3600 | 4800 | 6200 |
| The company's main products(Click Text) |
| PVC PipeExtrusion Line | PVC Fiber Pipe/HoseExtrusion Line | PE Two-layers PipeExtrusion Line |
| PE PipeExtrusion Line(Large Diameter)
|
PE Corrugated Pipe Production Line | PVC Foam Board Production Line |
| 3-Layers PPR Pipe Production Line |
PVC Plastic Windows Machine PVC Ceiling Production Line PVC Window Shutter Machine PVC Rain Gutter Machine PVC Corner Production Line PVC Great Wall Panel Machine PVC Cable Trunking Machine |
PP PE Two-stages Pelletizing Line PP PE One-stage Pelletizing Line PVC Hot-cutting Pelletizing Line PP PE Water Ring PelletingLine |
Our Company |
Zhangjiagang City Qiangsheng Plastic Machinery Co.,Ltd.
Zhangjiagang City Qiangsheng Plastic Machinery Co.,Ltd.is located in Jingfeng town Sanxing Industry park, Zhangjiagang City.
Its main products:double-screw extruder, single-screw extruder, sets of extruding production lines and auxiliary equipment, such as, PE, PP, PVC, PP-R plastic pipe production line,plastic profile production line, plastic granutating line, plastic recycling line and others.
Descriptionct Description
| Chinaplas show |

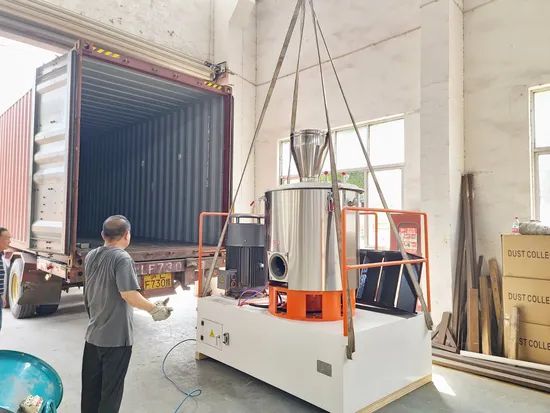

| Packaging and Shipping |
| FAQ |
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.
