High Speed Punching Machine Marx-30 Knuckle Joint Forging Condition New HS Code 84629910 Model NO. MARX-30 Trademark Qiao Sen
Piece
Negotiable
Product information
High-quality High Speed Punching Machine Marx-30 Knuckle Joint Forging Condition New HS Code 84629910 Model NO. MARX-30 Trademark Qiao Sen supplied by Wuxi Daya Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
200/Year
Punching Capacity:
30 Tons
HS Code:
84629910
Controlling Mode:
Artificial
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Punch Shape:
Closed Punch
Slider Drive Mechanism:
Crank Press
Specifications
Production Capacity:
200/Year
Punching Capacity:
30 Tons
HS Code:
84629910
Controlling Mode:
Artificial
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Punch Shape:
Closed Punch
Slider Drive Mechanism:
Crank Press
Core Components:
Crankshaft, Gearshaft, Motor, Sliderail
Colour:
Customizable
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Precision:
High Precision
Origin:
Jiangsu, China
Payment Term:
LC, T/T
Specification:
MARX-30
Model NO.:
MARX-30
Power Source:
Mechanical Drive
Condition:
New
Usage:
Pressing Metal Products
Machinery Test Report:
Provided
Trademark:
Qiao Sen
Slider Movement:
Single Action
Transport Package:
Standard Export Package
Type:
Tie Rod Frame Press Machine
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-03-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
shanghai
Certificates:
CE Certificate of Press Machine, certificate of occupational health and safety management system certification, certificate of quality management system certification, Cooperation Brand, ISO Certificate of Press Machine, Patent, Patent2, Patent3, Patent4
Product descriptions from the supplier
MARX series is Knuckle-Joint High Speed Press Machine,it's designed for stamping processes such as deep drawing, pressure holding, and high-precision forming.
QIAOSEN knuckle Joint presses, which built to meet or exceed JIS Class 1 accuracy standards. The frame of the machine is made of high-strength cast iron, which is most suitable for continuous punching, drawing and forming production because of its stable material and constant precision after internal stress relief. which can make the press machine have minimizing deflection and high accuracy and provide increased tool life.
| Specifications | Unit | MARX-30T | |||
| Press capacity | Ton | 30 | |||
| Slider stroke length | mm | 16 | 20 | 25 | 30 |
| Slider strokes per minute | Spm | 200-1250 | 200-1200 | 200-1050 | 200-900 |
| Die height | mm | 190-240 | |||
| Bolster area | mm | 600*400 | |||
| Slider size | mm | 600*300 | |||
| Adjustment amount | mm | 50 | |||
| Opening size of bolster | mm | 400(UP)*350(LOW)*60 | |||
| Main motor | KW | 11 | |||
| Total weight | Kg | 6500 | |||
| > | Electric die height adjustment | > | Hydraulic base screw pile |
| > | Die height display accuracy 0.01 | > | Hydraulic mold lifter and mold arm |
| > | Inching function, single action function, linkage function | > | Lubricating cooling circulation machine |
| > | Linkage with 0 ° and 90 ° positioning-stop function | > | Independent electric control box |
| > | Slide pad | > | Host forward and reverse device |
| > | Emergency stop function | > | Separate brake clutch |
| > | Six groups of batch control | > | Spring type shockproof foot pads |
| > | Two sets of chute control | > | Maintenance Tools and Toolboxes |
| > | Oil pressure locking mold | > | LED die lighting |
| > | Gear feeder | > | Tonnage detector |
| > | NC servo feeder | > | Bottom dead center monitor |
| > | Material racker | > | Electric control box air conditioning |
| > | Leveling machine | > | Variable frequency permanent magnet motor |

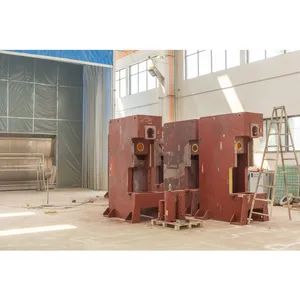

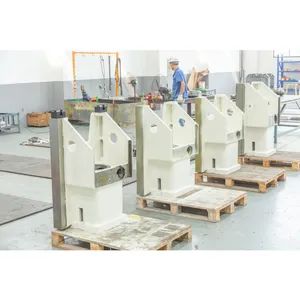

High strength steel frames
with small deformation
with small deformation
Slide rail adopt high frequency quenching technology,
its hardness could reach HRC45 degree or more.
Advantage: perfect wear resistance
its hardness could reach HRC45 degree or more.
Advantage: perfect wear resistance
Crankshaft
Alloy 42 CrMo Material
Advantage: 1.3 times Stronger than 45 steel
Alloy 42 CrMo Material
Advantage: 1.3 times Stronger than 45 steel
The gear shaft is made of high-strength alloy,
all tooth surfaces are treated with medium frequency
Advantage: small wear, high accuracy,long service life
all tooth surfaces are treated with medium frequency
Advantage: small wear, high accuracy,long service life
Crankshaft
Alloy 42 CrMo Material
Advantage: 1.3 times Stronger than 45 steel
Alloy 42 CrMo Material
Advantage: 1.3 times Stronger than 45 steel
Features
- Design with horizontally symmetrical knuckle-joint that can ensure the slide motion to proportionally increase the work force while slide low down during working part of the die, which produce higher surface finish and near finished parts, which increase customer's productivity.
- This type can meets the stamping requirements of lead frame and other precision forming stamping parts.
- The special motion curve of the slide reduces the violent impact on the stamping tools at the time of high-speed stamping and prolongs the tools service-life.
- Adopting "8-Points Slide Guiding" ,which can make the press machine have minimizing deflection and high accuracy and stronger stability.
> Training:
Qiaosen provide complete training for our aboard customers through Internet so that operators, supervisors and maintenance team could know well of operation and maintenance as well as simply trouble shootings.
> Maintenance:
Qiaosen in-house maintenance department are responsible for internet inspection and suggestion immediately. If the remote guidance couldn't solve the issue, we will arrange the professional engineers to the door for maintenance by paid service.
