High Temperature 0-350c Magnetic Float Level Sensor 1200mm Marine Oil Level Meter
1 Piece
$196Product information
High-quality High Temperature 0-350c Magnetic Float Level Sensor 1200mm Marine Oil Level Meter supplied by Huaibei Huadian Automation Technology Co., Ltd.. Bulk wholesale pricing is $196 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Temperature:
-20~350℃
Accuracy Grade:
0.5G
Measuring Range:
0~5000mm
Production Capacity:
1000pieces
Package Gross Weight:
20.000kg
Package Size:
20.00cm * 100.00cm * 30.00cm
HS Code:
9026100000
Certification:
CE
Specifications
Temperature:
-20~350℃
Accuracy Grade:
0.5G
Measuring Range:
0~5000mm
Production Capacity:
1000pieces
Package Gross Weight:
20.000kg
Package Size:
20.00cm * 100.00cm * 30.00cm
HS Code:
9026100000
Certification:
CE
Trade Term:
CFR, FOB, CIF, EXW
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Transport Package:
Customized
Specification:
Customized
Model NO.:
HDL-500
Pressure Range:
High Pressure
Trademark:
Huadian Automation
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Display Type:
Mechanical Display
Port Of Loading:
Shanghai port
Installation:
Side Mounted;Top,Bottom Install
Payment Methods:
Support payments in USD
Function:
Water Level Testing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-08-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
CFR, FOB, CIF, EXW
Port Of Loading:
Shanghai port
Certificates:
CE, ISO-9001, ROHS, SGS
Product descriptions from the supplier

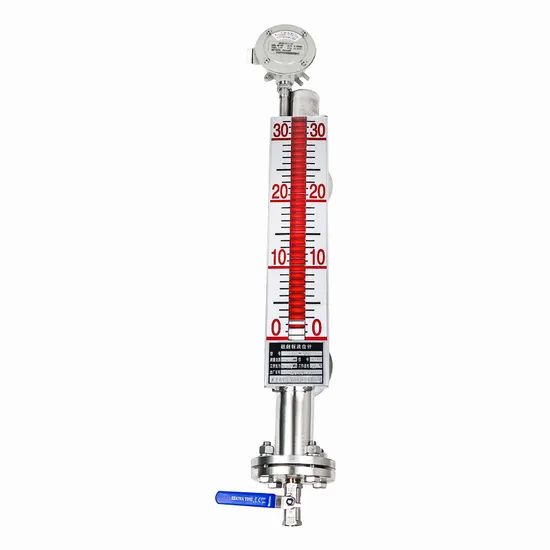

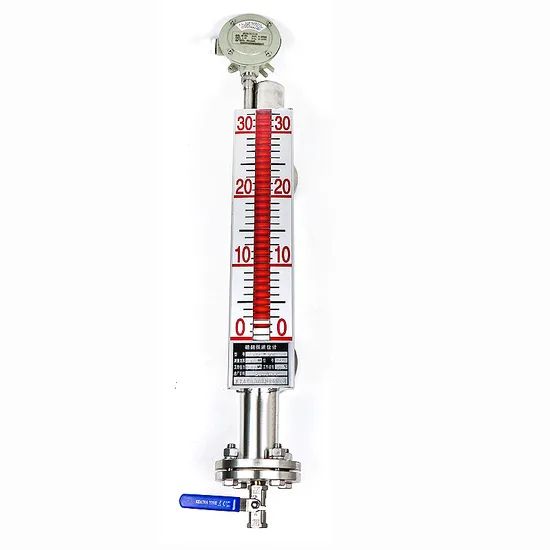

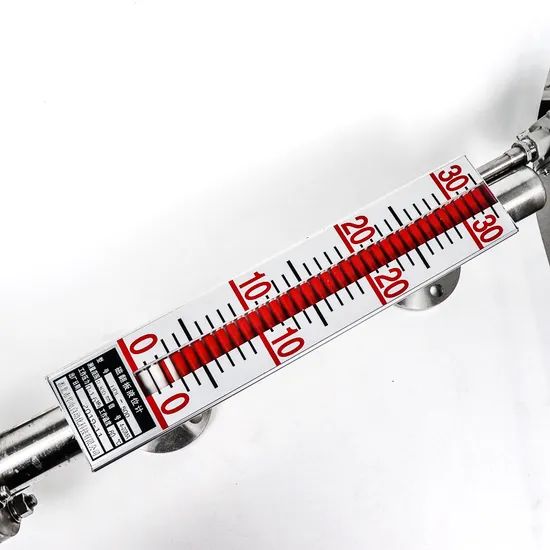

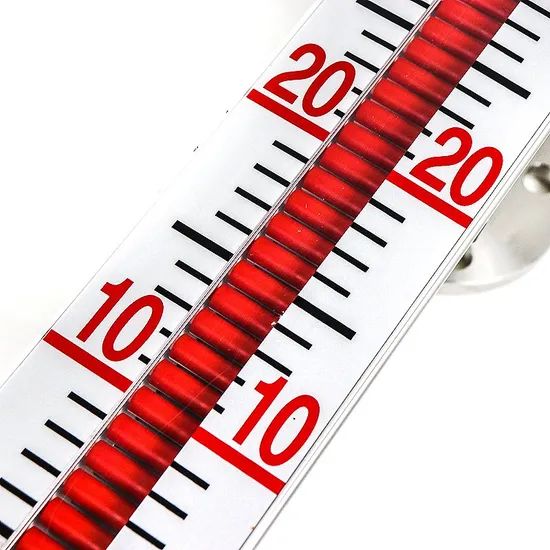

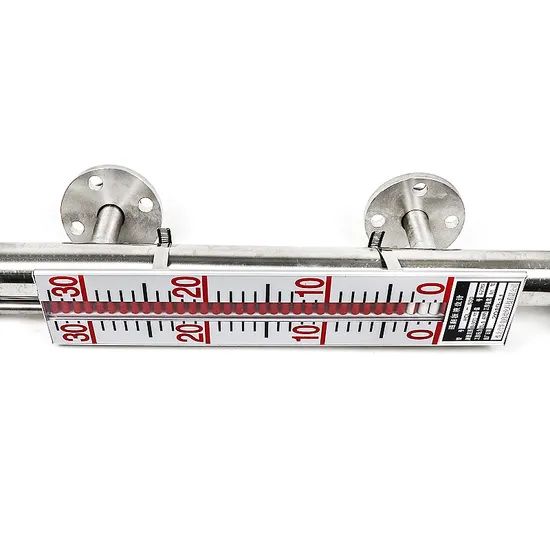

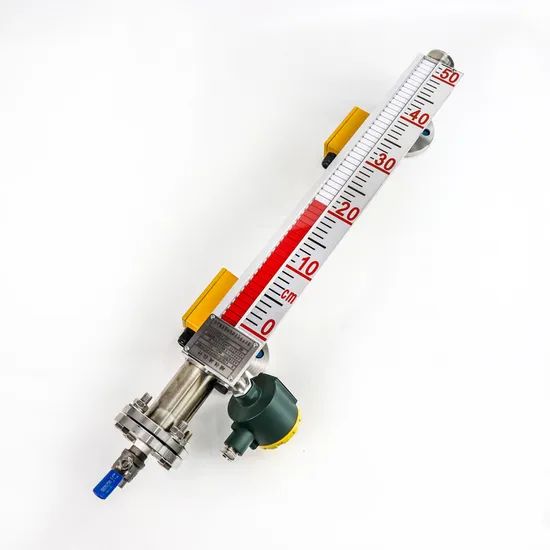

High Temperature 0-350C magnetic float level sensor 1200mm marine oil level meter
Magnetic Liquid Water Level Indicator application developed based on the principle of buoyancy and magnetic coupling. When the measured level in the container movements, the dominant tube level gauge also will lift the float, the permanent magnet inside the float is transferred by magnetic field coupling, driving the red, white turned columns flip 180 degrees, when when the liquid level rises, the column turned from white to red when the level drops, the column turned from red to white, pointer red, white circles located at the medium level of the actual height of the container, in order to achieve the level instructions.
Magnetic Liquid Water Level Indicator electrical signal is implemented by a combination of the remote and basic level remote device. The level remote device by the UR-type resistance sensors and UB type R / I converter modules, the indicator in the form of bundled fixed to the outside of the main conduit UHZ type level gauge magnetic flap so that it is level count the same magnetic coupling system. When the magnetic float moves up and down with the liquid level, the level corresponding to the position of the reed that is the role of the magnetic field inside the float pull resistor chain resistance to change by switching module will change the resistance signal into a standard two-wire 4 ~ 20mADC output signal, the signal can be easily and III-type electric instrument, display instrument supporting the use, can also be indicative of the light beam, the digital display regulator supporting the use of alarm, so as to display, control, regulation and alarm purposes.
| Model | Magnetic Liquid Water Level Indicator |
| Range | 1;2;3(m) |
| Material | M1-SS304 |
| M2-SS316L | |
| M3-UPVC | |
| M4-UPP | |
| M5-PTFE | |
| Output | AH-upper alarm |
| AL-lower alarm | |
| AHL-upper and lower alarm | |
| Installation | S-side-mounted |
| T-Top-mounted | |
| B-Bottom-mounted | |
| Sensor temperature | N-10ºC~200 ºC of Magnetic Liquid Water Level Indicator |
| H-High temperature-10ºC~350ºC |
