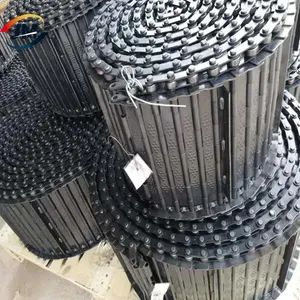

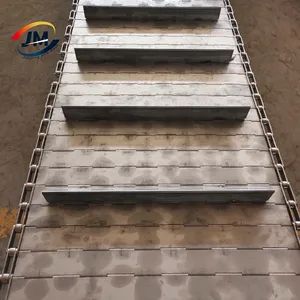

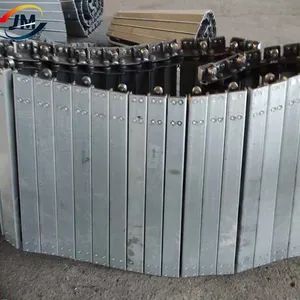

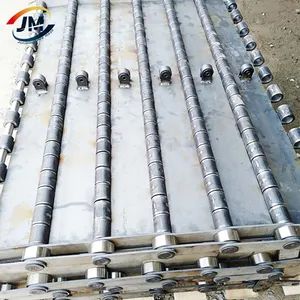

Hinged Steel Slat Conveyor Belt Chain Driven for Handling Recycling Forging

Stainless Steel Perforated Link Metal Plate Linked Conveyor Belts
Temperature Resistance Corrosion Rust Resistance Perforated Screen Conveyor Belt
SS304 Stainless Steel Flat Wire Mesh Belt Horseshoe Conveyor Belt for Water purification
Stainless Steel Hygienic and Sanitary Conveyor Belting
Stainless Steel 304 Great Wall Mesh Belt Horseshoe Chain Wire Mesh Conveyor Belt

Type 1: Perforated Conveyor Belt:
Perforated metal conveyor belts are made by perforated metal plate of specific hole pattern, particularly useful in drainage, ventilation, or the filtering of materials. Also known as metal screen conveyor belt.
Screen pattern: round hole, square hole
Applications: perforated screen conveyor belts are used in food processing for drying or cooling products, in pharmaceuticals for tablet drying, in chemical industries for filtering, and in other areas where material handing combined with air or liquid passage is necessary.
Material: carbon steel , painting option, stainless steel 201 304 316 316.

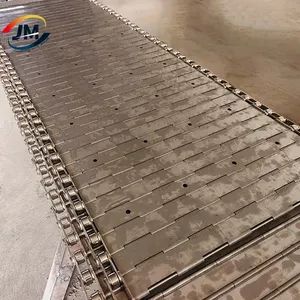

Stainless steel plate linked perforated metal conveyor belt advantages:
Temperature resistance
Corrosion and rust resistance

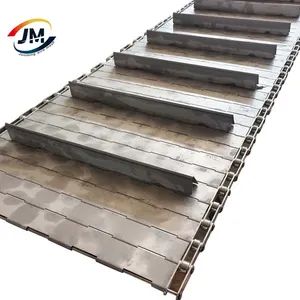

Baffles can be added
Side guards can be added
Chain link edge ensures the smooth and high efficiency working
Curved perforated plate conveyor belt is available
Suitable for draining, press work, die-casting and forging
Minimal maintenance.

Type 2: Horseshoe conveyor belt

Stainless steel metal honeycomb mesh conveyor belts is widely used in glass industry, food processing industry.
The Honeycomb Belt is an open grid belt made of flat wire strips connected to each other by straight rods and pulled by specific sprockets. This belt is suitable for cleaning processes, cooking, cooling, products transfers, drying material and water treatment.

Wire mesh conveyor belt is widely used in areas such as cement, metallurgy, casing, chemical transport materials.
Wire mesh conveyor belt can be used for high temperature resistant, resistant to burn conveyor belt, electronic balance tear conveyor belt etc
Instant noodles and rice industry.
These belts are engineered and manufactured to strict tolerances resulting in a longer belt life.

1. Also known as U-shaped chain, made by cross rod and metal sheet. Firm and durable, very little maintenance is needed, with long life.
2. May customized lockstitching style in two sides of rod according to requirements, or offer side baffle guard and transverse baffle.
3. Material common used carbon steel, galvanized steel, stainless steel 304 and 316.
4. Mesh hole big, weight is light, convenient to transportation.
5. Surface smoothly, running stable, can't go astray.

Type 3: Flat Flex Conveyor Belts

Flat Flex Conveyor Belts are usually gear transmission belt, with good ventilation advantages, tension evenly, fine workmanship, the flat flex belts with a flexible rotation, good stability, high temperature, pressure resistance, corrosion resistance, long life and so on.
Flat Flex Conveyor Belts are used with a single-layer structure, lighter, the use of sprocket drive. Large open area(opening 70-85%), often used in the lighter weight of the product cooling, frying, baking, drying, heating, decoration, wrapped power and packaging equipment.

Type 2:  Flat Flex Conveyor Belts
Flat flex conveyor belts also known as rod network conveyor belts, or enrober conveyor belts, are distinguished by their unique construction and versatile applications, these belts are constructed from a series of looped wires that interlock with one another, creating a flexible and robust mesh, the simple structure makes it economical and lightweight. It can help to save costs and reduce downtime.


Stainless Steel Wire Mesh Conveyor Belt, Pizza Oven Chocolate Enrober Flat Flex Belt Conveyor
Materials	Stainless Steel Wire 304, 304l, 316, 316L, 310s, etc
Wire Diameter	1mm, 1.2mm, 1.5mm, 1.6mm, 1.8mm, 2.0mm, 2.5mm, 2.8mm, Customized
Chain Pitch	5mm, 6mm, 7mm, 10mm. Customized
Space Number	Usual Singular, we need to know the number
Width	1.5M-5.5M, customized
Operating Temperature	-40ºC-1200ºC
Edge Treatment	Single Loop Edge, Double Loop Edge and C Shape Edge

How To Identify A Flat Flex Conveyor Belt?
Every Conveyor belt must be properly identified before replacement. Use the following guide to identify a flat flex conveyor belt.

Flat flex wire mesh belts are the lightest weight, open area, economical, and thinnest positive drive wire conveyor belt in the industry.


1. Determine belt width.

Measure the overall belt width to the nearest 1/16", from outside edge to outside edge.


2. Determine mesh size.

The mesh size equals the strands per foot(SPF)multiplied by the wire diameter(SPF x wire diameter = mesh size).
Measure the wire diameter using vernier calipers, a micrometer, or a wire gauge.
Count the number of strands per foot(SPF)by pulling the slack out of the belt and count the
 strands in 12", do not count the first strand.

3. Determine spaces.

Count the number of rectangular openings(or spaces)across the width of the belt.

4. Determine edge style.

Check to see if you are using a C-Cure Edge, single loop edge, or double loop edge.

Flat Flex Belt Materials:
302, 304, 316L Stainless Steel, Carbon Steels, Specialized materials suitable for high-temperatures

Flat Flex Edge Loop Options:
C-Cure Edge, single loop edge, or double loop edge.



Fitting Parts: Chains, Sprockets

Type 4:  Balanced Spiral Belt/Chain Link Conveyor Belt
Balanced Spiral Belt/Chain Link Conveyor Belt is an extremely popular mesh design, found in almost every manufacturing industry with a wide ranging number of possible applications.
Balanced Spiral Belt/Chain Link Conveyor Belt is made of the chain and the transverse support rod on both sides of the general conveyor belt, the sprocket is driven, and the net belt is fixed with wide band without deformation.
Benefits of Balanced Spiral belt include straight-running operation, an excellent strength to weight ratio and an extremely wide variety of mesh specifications to suit each individual application.

1. It can be the delivery of granular materials, can also be carried into the delivery of items.
2. Suitable for high density transportation in small.
3. Smooth motion, strong.
4. Convenient installation and replacement, high cost, long service life.

Type 5: Eye-Link Conveyor Belt:
Eye-Link Belts, Conveyor belting is the versatile, quality line of steel eye-link belts.
Eye-link belts are straight running, positively driven, quality eye link belts for either industrial or food processing applications. Available in an exceptionally wide array of materials, wire diameters, surface treatments and accessories, there versatile steel conveyor belts can be designed and manufactured to satisfy the most demanding of applications.

Mesh Designations

Mesh configurations for Eye-Link belts are designated as in the following example
A X M/C-D
50 X 10/2.5-5
Where:
50 = belt's longitudinal pitch in mm
10 = distance between eye link in mm
2.5 = Eye link wire diameter in mm
5 = Cross rod diameter in mm
Loose Chain & Chain Edges
All Eye-Link belts can be fitted with either loose chain made from bar links or with chain edges to suit customer specifications.
Eye Link Belt
Features:

1. Made by round mesh wire shaped glass then string up by cross rods, light weight, easy to clean, driven by sprockets or roller drum.
2. Running smoothly, easy to maintaining.

Range of applied:
Usually used for following applications: freezing, foundry equipment, quench tanks, dehydration equipment, sterilization equipment, drying equipment, steel blast equipment, filtering equipment, packing equipment, baking stove, cooling equipment, blanching equipment, storage equipment, shrinkable packaging device washing machines etc.
