Horizontal Deep Hole Drilling Boring Machine Origin China Condition New Model NO. JT-HM Trademark Jotun Color Customized
Piece
Negotiable
Product information
High-quality Horizontal Deep Hole Drilling Boring Machine Origin China Condition New Model NO. JT-HM Trademark Jotun Color Customized supplied by Anhui Jotun Import&Export Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Size:
1800.00cm * 100.00cm * 170.00cm
Specification:
18000*1000*1700mm
Diameter Of Hole Honed:
40-550mm
Package Gross Weight:
4000.000kg
Production Capacity:
50 Pieces/Year
Deep Hole Length:
9000mm
Spindle Speed:
Adjustable
Automatic Grade:
Automatic
Specifications
Package Size:
1800.00cm * 100.00cm * 170.00cm
Specification:
18000*1000*1700mm
Diameter Of Hole Honed:
40-550mm
Package Gross Weight:
4000.000kg
Production Capacity:
50 Pieces/Year
Deep Hole Length:
9000mm
Spindle Speed:
Adjustable
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Controlling Mode:
CNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Color:
Customized
Structure:
Deep Hole Boring Machine
Application:
Deep Hole Honing
Trade Term:
FOB, CIF, CFR, EXW
Precision:
High Precision
Functions:
Honing Engine Cylinders
Tool Type:
Honing Stone
Coordinate Boring Machine Type:
Horizontal Type
Model NO.:
JT-HM
Trademark:
Jotun
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Condition:
New
Surface Roughness:
Ra0.2-Ra0.4
Transport Package:
Sea Worthy
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Voltage:
as Your Request
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-03-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

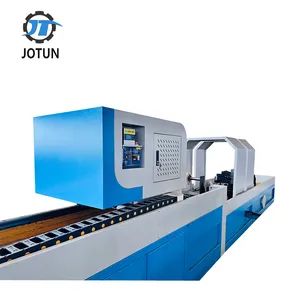

CNC Deep Hole Honing Machine
Higher product size, better load performance, and stronger compatibility.
The CNC honing machine is equipped with PLC numerical control system (optional), linear rolling guide, AC servo motor. The grinding rod adopts stepless speed regulation, the commutation is stable, the speed is convenient, and it is easy to ensure the accuracy of the aperture size and reduce labor intensity. During the honing process, the sand bar and the workpiece are always maintained at a constant pressure, so that the sand bar is strongly ground, which ensures the high efficiency of deep hole processing. It is suitable for rough and fine honing of general cylindrical deep hole parts after rough boring. The machine can also perform local honing to correct the taper and ovality of the part. Honed workpieces are made of cast iron and various types of steel, including hardened workpieces. If cold drawn steel pipes are used, direct honing can be performed directly. This machine tool is specially used for rough and fine honing of the inner wall of cylindrical deep hole parts such as various hydraulic oil cylinders and cylinders, and is especially good at processing stepped cylinders.
The CNC honing machine is equipped with PLC numerical control system (optional), linear rolling guide, AC servo motor. The grinding rod adopts stepless speed regulation, the commutation is stable, the speed is convenient, and it is easy to ensure the accuracy of the aperture size and reduce labor intensity. During the honing process, the sand bar and the workpiece are always maintained at a constant pressure, so that the sand bar is strongly ground, which ensures the high efficiency of deep hole processing. It is suitable for rough and fine honing of general cylindrical deep hole parts after rough boring. The machine can also perform local honing to correct the taper and ovality of the part. Honed workpieces are made of cast iron and various types of steel, including hardened workpieces. If cold drawn steel pipes are used, direct honing can be performed directly. This machine tool is specially used for rough and fine honing of the inner wall of cylindrical deep hole parts such as various hydraulic oil cylinders and cylinders, and is especially good at processing stepped cylinders.
| Honing diameter range | Ф40-Ф550 mm |
| Maximum depth of honing hole | 9000mm |
| Machine center height | ≥480 mm |
| Motor power of grinding rod box | 22kw |
| Range of spindle speed of grinding rod box | 30-200r/min |
| Cooling tank volume | 950L |
| Machine max capacity weight | 3000kgs |
| Machine Weight | 6000kgs |
