Horizontal Manual Desktop Thread Cutting Tools Conventional Lathe Machine Metal Pipe Threading Universal Lathe
1-2 Piece
$9,8003-4 Piece
$9,5005 Piece
$8,900Product information
High-quality Horizontal Manual Desktop Thread Cutting Tools Conventional Lathe Machine Metal Pipe Threading Universal Lathe supplied by Henan Rowdai Machinery Equipment Co., Ltd.. Bulk wholesale pricing ranges from $8,900 to $9,800 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000
Main Motor:
11kw
Max. Stroke Of Tailstock:
150
Machine Size:
1550*1630*1800mm
Size Of Tool Shank:
25*25mm
Tool Turret:
4 Positions
Tool Holder:
4 Positions
Width Of Guide Rail:
400mm
Specifications
Production Capacity:
1000
Main Motor:
11kw
Max. Stroke Of Tailstock:
150
Machine Size:
1550*1630*1800mm
Size Of Tool Shank:
25*25mm
Tool Turret:
4 Positions
Tool Holder:
4 Positions
Width Of Guide Rail:
400mm
Max. Swing Over Carriage:
520mm
Spindle Bore:
52mm
Tailstock Diameter:
75mm
Max. Swing Over Bed:
800mm
HS Code:
8458190000
Machine Weight:
8700kgs
Model NO.:
CA6150
Certification:
CE, ISO 9001
Origin:
China
Power Source:
Electric
Controlling Mode:
Electrical
Trade Term:
FOB, CIF, CFR, EXW
Setting Mode:
Floor-type
Guide Rail:
Horizontal Guide Rail
Type:
Horizontal Lathe
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Chuck:
Manual Chunk
Transport Package:
Metal Base with Plywood Case
Processing Accessory:
Metals etc.
Taper Of Tailstock:
Mt5
Condition:
New
Precision:
Precision
Port Of Loading:
Qingdao Port
Trademark:
ROWDAI
Automatic Grade:
Semiautomatic
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-06-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier

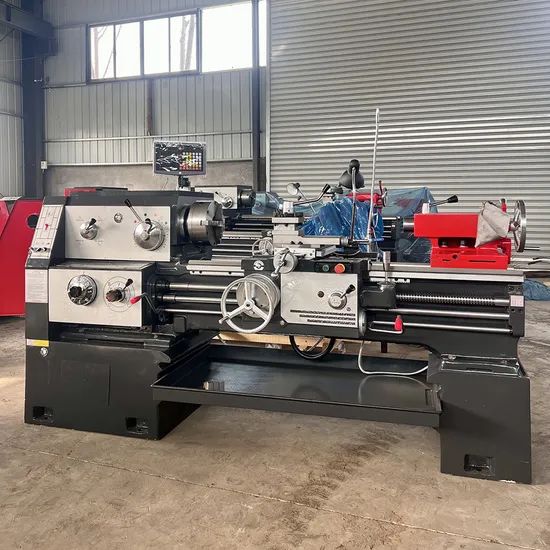

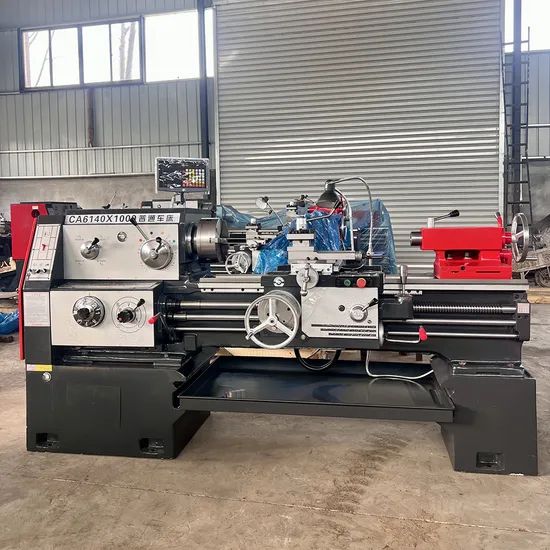

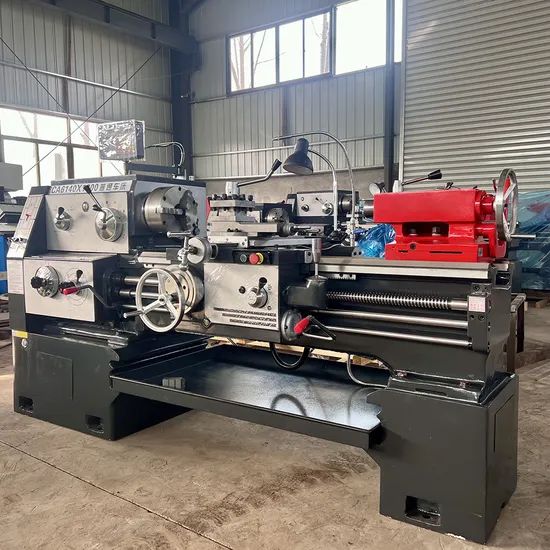

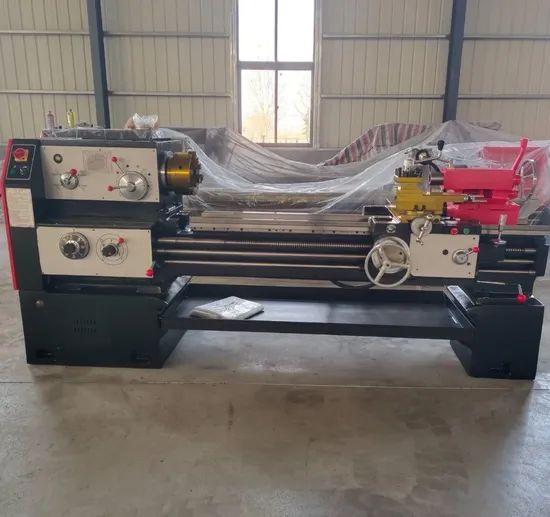

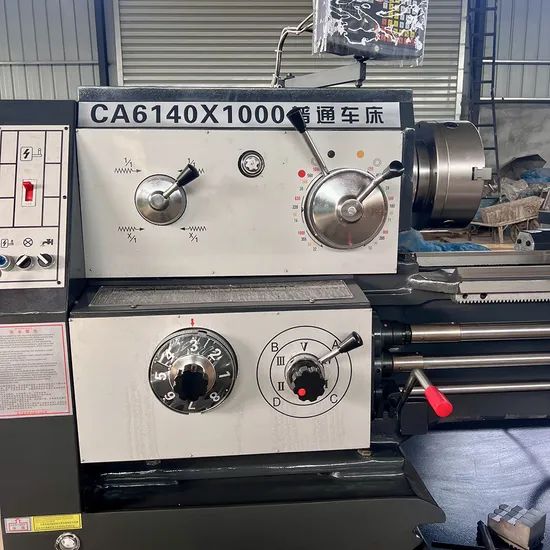

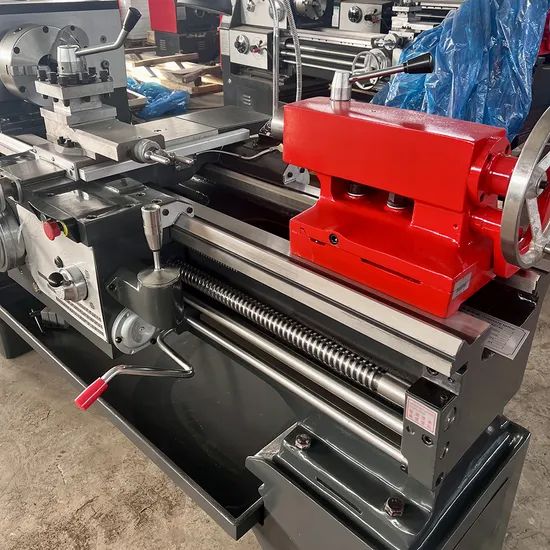

CA6140/6240/6150/6250 Horizontal Manual Lathe Metal Turing Lathe Machine
These lathes are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, Whitworth, module diametrical pitch threads as well as taper turning, facing, drilling broaching for oil grooves and keyways, etc. The workpiece produced on the machine can achieve the working accuracy of grade IT6-7 and surface roughness Ra 1.6um.Gap-bed lathes are especially suitable for flat and odd workpieces.
Owing to increasing the bore of the spindle the lathes are more convenient to machining shaft parts and suitable for kinds of mechanical working shops.
| Specification | Unit | CA6140 | CA6240 | CA6150 | CA6250 |
| Max. swing over bed | mm | 400 | 400 | 500 | 500 |
| Max. length of workpiece | mm | 650/750/900/1000/1400/1500/1900/2000 | |||
| Max. Swing over carriage | mm | 210 | 210 | 300 | 300 |
| Distance from spindle center to bed plane guide rail | mm | 205 | 205 | 250 | 250 |
| Spindle Bore | mm | 52 | |||
| Spindle taper | Mohs 6 / A6 | ||||
| No. of longitudinal feed | kind | 64 | |||
| Longitudinal feed range - normal | mm/rev | 0.08-1.59 | |||
| Longitudinal feed range - fine | mm/rev | 0.028-0.054 | |||
| Longitudinal feed rang - coarse | mm/rev | 1.71-6.33 | |||
| No. of cross traverse feed | kind | 64 | |||
| cross traverse feed - normal | mm/rev | 0.04-0.79 | |||
| cross traverse feed - fine | mm/rev | 0.014-0.027 | |||
| cross traverse feed - coarse | mm/rev | 0.86-3.16 | |||
| Longitudinal rapid movement speed of tool post | m/min | 4 | |||
| Rapid traverse speed of tool post | m/min | 2 | |||
| Max. stroke of upper tool holder | mm | 140 | 140 | 140 | 140 |
| Max. horizontal stroke of tool holder | mm | 320 | 320 | 320 | 420 |
| Turret turntable rotation angle | - | ±90° | |||
| Size of tool shank | mm | 25×25 | |||
| Vertical distance between center line of spindle and button of tool | mm | 26 | |||
| Tailstock spindle diameter | mm | 75 | |||
| Taper of tailstock spindle center hole | - | Mohs 5 | |||
| Max. stroke of tailstock spindle | mm | 150 | |||
| Screw pitch | mm | 12 | |||
| Range of metric threads | mm | 44 kinds, 1-192 | |||
| Range of Inch threads TPI | 20 kinds, 2-24 | ||||
| Range of moudle threads | mm | 39 kinds,0.25-48 | |||
| Range of diametral threads DP | DP | 37 kinds,1-96 | |||
| Bed rail width | mm | 400 | |||
| Bed rail hardness | RC | RC52 | |||
| Main motor | kW | 7.5 | |||
| Net weight(MM) | 750 | 1990 | 2060 | ||
| 1000 | 2070 | 2140 | |||
| 1500 | 2220 | 2290 | |||
| 2000 | 2570 | 2640 | |||
| Size(length*width*height)MM | 750 | 2418*1000*1267 | 2418*1037*1312 | ||
| 1000 | 2668*1000*1267 | 2668*1037*1312 | |||
| 1500 | 3168*1000*1267 | 3168*1037*1312 | |||
| 2000 | 3668*1000*1267 | 3668*1037*1312 | |||
The lathe machine will be packed with a metal base and plywood case, suitable for all kinds of international transportation, such as by sea, air, etc.
Delivery time:7-15 days, fast to deliver
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.
Henan Rowdai Machinery Equipment Co., LTD
we are located in Zhengzhou city, Henan Province. We are specialized in the manufacture of CNC machine center, Lathe machine,CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto,mould,construction machinery, aviation, high speed railway and energy industry. We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1:How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you choose the exact model. You can also send us the product drawing, we will choose the most suitable machines for you.
2: What about the quality of the machine? And after-sales service?
A: Our machine warranty period is 1-2 years, and we provide free technical service.
3: What are your trade terms?
A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.
4: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;
5: What's the MOQ?
A: 1 set
