Horizontal Pipe Hose Wrapping, Winding Rolling, Packing Machine
Piece
Negotiable
Product information
High-quality Horizontal Pipe Hose Wrapping, Winding Rolling, Packing Machine supplied by Comflex Industrial Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Motor:
1.5kw
Power:
2.5kw
Speed:
20-30s/PCS
Production Capacity:
200 Sets/Month
Voltage:
220/380V
Reducer:
400W
Max. Load Capacity:
400kg
Min. Load Capacity:
50kg
Specifications
Motor:
1.5kw
Power:
2.5kw
Speed:
20-30s/PCS
Production Capacity:
200 Sets/Month
Voltage:
220/380V
Reducer:
400W
Max. Load Capacity:
400kg
Min. Load Capacity:
50kg
Model NO.:
ALPHA
Type:
Automatic Wrapping Machine
Specification:
Customized
Driven Type:
Electric
Trade Term:
FOB, CFR, CIF, EXW
Inclusion Degree:
Fully Wrapped Winding Machine
Trademark:
HLT
Structure:
Horizontal Winding Machine
Product Name:
Hose Packing Machine
Electronic Control:
Knob
Payment Term:
LC, T/T, Western Union
Application:
Machinery
Working Mode:
Manual
Drive Form:
Rollwe Drive
Series:
S Series Horizontal Winding Machine
Automatic Grade:
Semi-Automatic
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Transport Package:
Standard
Film Frame Structure:
Tensile Resistance
Origin:
Wuxi, Jiangsu, China(Mainland)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Certificates:
Flexible Metal Hose Forming Machine
Product descriptions from the supplier

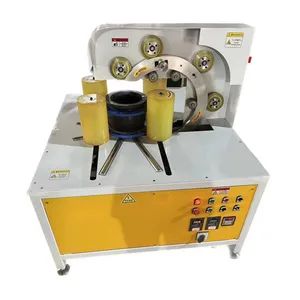

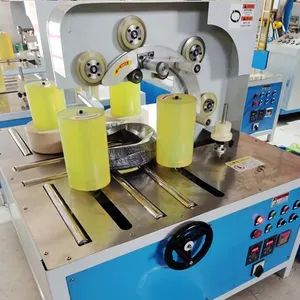

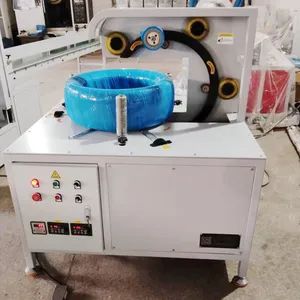

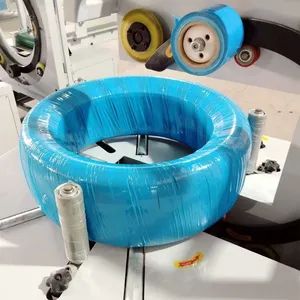

Horizontal Pipe Hose Wrapping /Winding /Rolling Packing Machine
Hose Coil wrapping machine and coil packing machine is a special ring type of efficient equipments for coils through eye packaging. There are different types coil packer which is able to provide a nic packing solution for coils..For soil packing machine or coil wrapping machine, the speed of ring and rollers are adjustable to accommodate materials by inverters. It is the most efficiency equipment for coil objects packaging, which meets the requirement for higher packaging rates and minimal space and lower labor costs.
Our coil packing machine is excellent for the typical steel factory environment, it provides consistent, repeatable stretch wrapping performance by paper, stretch film. In order to meet different needs, we have designed several machines for you to choose from.
| Model | JL-ws650 | JL-WS1350 | JL-sp400 |
| Dimension | 1300*1300*1250 | 1600*1600*1600 | 1300*900*1400 |
| Max. load capacity | 50kg | 100kg | 150kg |
| Drive form | roller drive | roller drive | roller drive |
| Packing speed | 20-30s/pcs | 20-30s/pcs | 20-30s/pcs |
| Voltage/power | 220/380V | 220/380V | 220/380V |
Machine Name:Horizontal wrapping machine
Machine:L1300mm* W1300mm* H1250mm approx.
Height of the workbench:750mm(customizable)
Applicable Products:Max Outer diameter within 650mm,Height within 300mm ,Packing inner diameter:300mm or more
Heaviest load-bearing:50 kg
Drive form: Roller drive
Voltage/power:220V(380V Optional)Dual frequency converter(1.5KW) Total power(2.5KW approx.)
Packing speed: Adjustable(20-30 s/pc)
Working mode: manual
Electronic control: knob
Motor: national standard
Machine:L1300mm* W1300mm* H1250mm approx.
Height of the workbench:750mm(customizable)
Applicable Products:Max Outer diameter within 650mm,Height within 300mm ,Packing inner diameter:300mm or more
Heaviest load-bearing:50 kg
Drive form: Roller drive
Voltage/power:220V(380V Optional)Dual frequency converter(1.5KW) Total power(2.5KW approx.)
Packing speed: Adjustable(20-30 s/pc)
Working mode: manual
Electronic control: knob
Motor: national standard
Name: Horizontal wrapping machine
Overall dimensions: L1600mm* W1600mm* H1600mm approx.
Desktop height: 800mm (can be customized)
Applicable products: Maximum outer diameter within 1350mm, height within 470mm, packaging inner diameter within 420mm
Maximum load capacity:400 kg
Drive form; roller drive
Voltage/power: 220V (380V optional) Dual inverter (1.5KW) Total power (2.5KW approx.)
Packaging speed: adjustable (20-30 seconds for one piece)
Working mode: manual
Electronic control: knob
Motor: national standard
Overall dimensions: L1600mm* W1600mm* H1600mm approx.
Desktop height: 800mm (can be customized)
Applicable products: Maximum outer diameter within 1350mm, height within 470mm, packaging inner diameter within 420mm
Maximum load capacity:400 kg
Drive form; roller drive
Voltage/power: 220V (380V optional) Dual inverter (1.5KW) Total power (2.5KW approx.)
Packaging speed: adjustable (20-30 seconds for one piece)
Working mode: manual
Electronic control: knob
Motor: national standard
Name: Single hose wrapping machine
Overall dimensions: L1300mm* W900mm* H1400mm approx.
Desktop height: 750mm (can be customized)
Applicable products: Maximum diameter within 400mm, height over 200mm, Minimum diameter 100mm
Maximum load capacity: 150 kg
Drive form; roller drive
Voltage/power: 220V (380V optional) Dual inverter (1.5KW) Total power (2.5KW approx.)
Packaging speed: adjustable (20-30 seconds for one piece)
Working mode: manual
Reducer: 400w
Motor:1.5kw
Overall dimensions: L1300mm* W900mm* H1400mm approx.
Desktop height: 750mm (can be customized)
Applicable products: Maximum diameter within 400mm, height over 200mm, Minimum diameter 100mm
Maximum load capacity: 150 kg
Drive form; roller drive
Voltage/power: 220V (380V optional) Dual inverter (1.5KW) Total power (2.5KW approx.)
Packaging speed: adjustable (20-30 seconds for one piece)
Working mode: manual
Reducer: 400w
Motor:1.5kw
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have beenexported to many countries, such asIndonesia,Vietnam,UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...
1. How can we guarantee quality?
Provide the sample before machine production;
With final Inspection before shipment;
2. Why should you buy from us not from other suppliers?
High quality control for machine quality, Superior after-sales service.
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union
Language Spoken: English,Russian
Welcome Your Inquiry!
