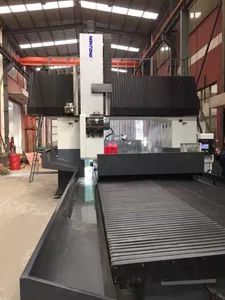

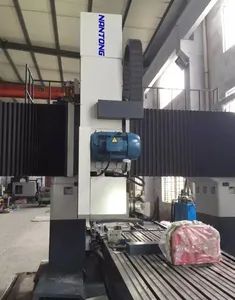

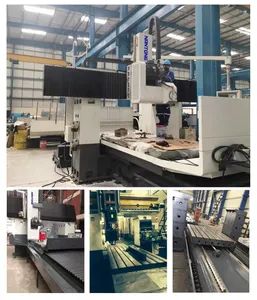

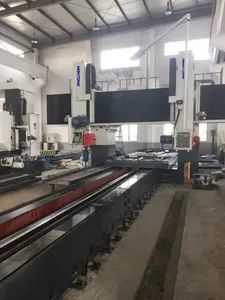

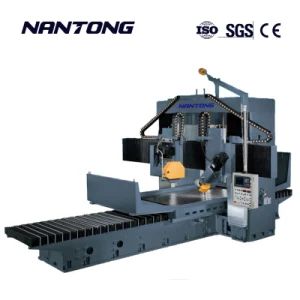

Horizontal Spindle CNC Surface Grinding Machine
Piece
Negotiable
Product information
High-quality Horizontal Spindle CNC Surface Grinding Machine supplied by NANTONG YIJI MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
300 Sets/Year
Automatic Grade:
Automatic
Controlling Mode:
CNC
Transport Package:
Container
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, ISO 9001
Abrasives:
Grinding Wheel
Precision:
High Precision
Specifications
Production Capacity:
300 Sets/Year
Automatic Grade:
Automatic
Controlling Mode:
CNC
Transport Package:
Container
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, ISO 9001
Abrasives:
Grinding Wheel
Precision:
High Precision
Payment Term:
LC, T/T
Origin:
Nantong
Condition:
New
Port Of Loading:
Shanghai Port
Cylindrical Grinder Type:
Universal Cylindrical Grinder
Trademark:
nantong
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-02-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
30
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CQC, ISO, SGS
Product descriptions from the supplier
High quality surface guideway grinding machine
1.High speed
2.High quality
3.Easy operation
2.High quality
3.Easy operation
4.High safety
Machine Parameters
| Models | NT-1512 | NT-2012 | NT-2512 | NT-3012 | NT-4012 |
| Working Surface of table. WxL | 1200x1500 | 1200x2000 | 1200x2500 | 1200x3000 | 1200x4000 |
|
Max. grinding surface WxL |
1300x1600 | 1300x2100 | 1300x2600 | 1300x3100 | 1300x4100 |
| Max. Horizontal travel of table. | 1700 | 2200 | 2700 | 3200 | 4200 |
| Distance between two columns | 1600 | ||||
| Distance between table surface and spindle center | 950 | ||||
| Table speed | 5~25 M / min (16~80 fpm) | ||||
| Automatic crossfeed of spindle seat (60HZ) | 0~25 | ||||
| Downfeed handwheel min scale | 0.005 *0.002 | ||||
| Crossfeed handwheel (1 gra)min scale(PNC) | AHD:0.02 / PNC:0.005 *0.002 | ||||
| Longitudinal travel adjustable (from-to) | 200~1700 | 200~2200 | 200~2700 | 200~3200 | 200~4200 |
| Crossfeed travel adjustable (from-to) | 50~1400 | ||||
| Spindle motor | 20HPx4P *30Px4P | ||||
| Hydraulic pump motor | 15HP x 6P | 20HP x 6P | |||
| Crossfeed motor | AHD:1/4HPx6P / PNC:AC SERVO | ||||
| Downfeed motor | AHD:SERVO MOTOR/ PNC:AC SERVO | ||||
| Grinding wheel (ODxTxID) | 510 x 50 x 127 *510 x 75 x 203.2 | ||||
| Spindle speed 60/50HZ | 1250 RPM | ||||
| Flow rate of coolant pump | 90 L / min | ||||
| Max. load capacity | 3000 kgs | 4000 kgs | 5000 kgs | 6000 kgs | 8000 kgs |
| Net Weight | 20000 kgs | 23000 kgs | 26000 kgs | 29000 kgs | 35000 kgs |
Machine Configuration
| Structure |
| Base Table |
| Lubrication System |
| Movements |
| Spindle |
| V3 Motor Set |
| Control System |
| Hydraulic system |
Main Features
Machine lathe bed and table adopts - sliding guide table reciprocating motion driven by independent hydraulic station can jump step-less speed convenient operation station is equipped with the oil temperature is device system oil small rise
Grinding head lateral movement adopts linear rolling guide Ball screw drive Vertical movement with rectangular slide guide The vertical turbine shaft servo motor reducer ball screw pair drive To use electronic hand-wheel knife and micro feed
Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Welcome your inquiry!
