Hot Sale High-Quality Glass Cutter Condition New Trademark OEM Control System PLC HS Code 8464901100 Structure

Product Working Principle

Advantages of Product Operation and Control System

• Simple and Safe Operation: The machine is simple and safe to operate, featuring fast processing, high accuracy, and labor saving.
• Reliable Control System: The control system of the loading mechanism is controlled by a microcomputer (PLC programmable controller), and the cutting system adopts a CNC numerical control operating system, making the entire control system reliable, simple to operate, and highly automated.

Advantages of Product Movement and Cutting Functions

• Flexible Movement and Positioning: The machine can move around in the workshop and rotate 360 degrees. It can automatically locate the angle and position of the glass and integrates linear cutting and heterosexual cutting. The whole process from film loading to cutting is fully controllable.
• Advanced Control System: The equipment adopts the latest generation control system, which truly realizes the linkage between the equipment and the computer, with high accuracy and fast speed.

Advantages of Product's Latest Functions

Advantages of Product Stability and Components

• Stable Operation: High - performance motors and gear racks are used to ensure the stability of the machine itself.
• High - Quality Cutting Components: The cutter wheel is imported from Germany with a high - hardness cutter wheel. The cutter head is equipped with a protection device to effectively prevent the cutter from colliding.

Advantages of Product Expansion Functions

Summary of Product Unique Advantages

1. Efficient Handling and Cutting: The innovative mechanical transmission and suction - cup adsorption method can easily handle large and thick glass, quickly completing the conversion from vertical handling to horizontal cutting, greatly improving production efficiency.
2. Intelligent Automated Control: The combination of the PLC programmable controller and the CNC numerical control operating system, as well as the linkage between the latest generation control system and the computer, together with functions such as automatic laser positioning, graphic scanning, and automatic typesetting, reduce manual intervention, minimize human errors, and improve cutting accuracy and production automation.
3. High Flexibility: It can move freely in the workshop and rotate 360 degrees, automatically locate the glass, adapt to cutting requirements at different angles and positions, and integrate various cutting functions to meet diverse production needs.
4. Stable and Durable: High - performance motors and gear racks ensure the stable operation of the machine. The imported high - hardness cutting wheel and the cutter - head protection device extend the service life of the machine and reduce maintenance costs.
5. Strong Expandability: It can be equipped with an automatic labeling function and a cymbal table to achieve assembly - line operation, facilitating enterprises to expand functions according to production needs and improving overall production efficiency.

Details Showing


	Smart suction After one-touch start of the glass, the machine automatically raises the boom, automatically walks and rotates to find the position and angle of the glass, and is equipped with a suction monitoring system to automatically lift the glass to the cutting table after the glass is sucked, automatically scan and cut the glass sheet.
	Smart typography Input the glass size, the size of the glass to being cut and the cutting shape into the control panel, leaving the left work to this machine, highly improved the work efficiency and time saving.
	Automatic cutting The cutter head is made of German Boler head and can be rotated freely in 360 degrees to cut any shape. Computer control, automatic cutting according to optimized layout.

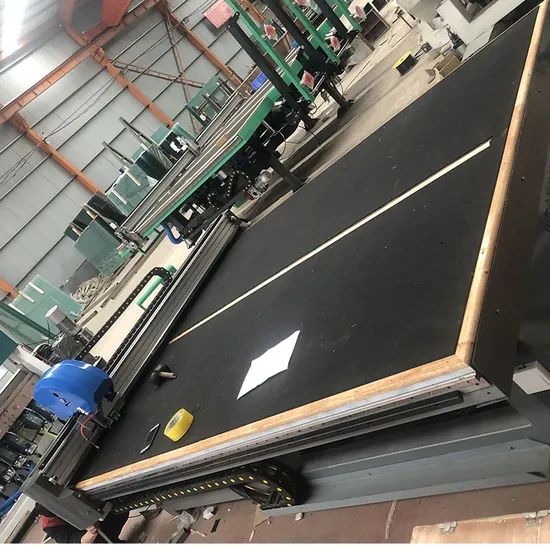

	Air floating platform The machine has an air floating system, and more than one hundred air holes are evenly arranged on the cutting table to ensure the stability of the airflow. It is very easy to push and pull the glass.

How to know one glass cutting machine is good or not?

Everyone would like to get a good glass cutting machine. But how to know it is good or not?

Today, we are going to share with you some information and hope it is helpful to you.

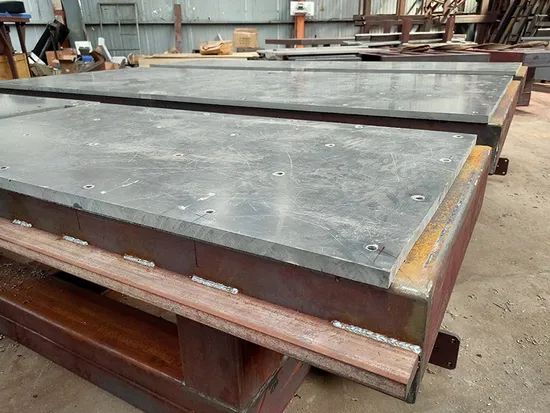

Firstly, let's see the countertops

All the countertops are made of PVC resin plate, with high hardness, no deformation, waterproof, and oil-proof. Don't choose the foam board, because the disadvantage of it, is easy to deform. Also, the shortcomings of density board are fear of water & oil, high humidity, and easy deformation. The entire surface of our PVC resin board is processed by a processing center, and the surface is very smooth. The unprocessed countertop has poor flatness. When cutting 3mm thick glass, the glass is easy to crack. The thinnest glass thickness that our machine can cut is 2mm.

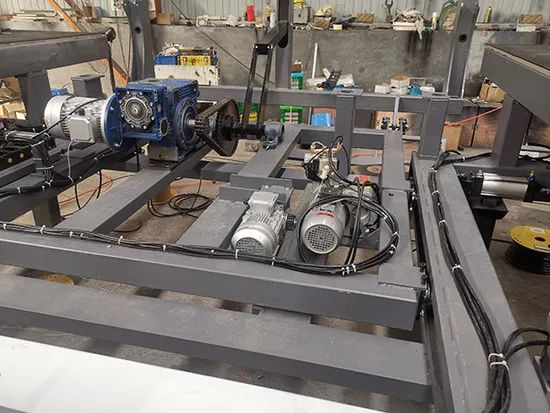

Now, let's move on to the whole frame structure

The whole frame is annealed after welding. The purpose of annealing treatment is to release the internal stress of steel welding and prevent deformation during later use, thereby affecting the cutting accuracy. Without annealing heat treatment, the cutting accuracy will be greatly reduced.

The supporting surface of the whole machine for installing the linear guide rail is processed, and the beam is also annealed steel beam. If you use aluminum beams, it will lead to poor cutting accuracy and poor stability. The cutting accuracy of our cutting machine can be guaranteed to be ≤0.2mm.

When the machine sucks glass, it works with a telescopic arm, and the machine does not move back and forth. We designed the linear guides on both sides to be used flat, and the linear guides used in the flat can bear even force, long life, and good stability. If it is used upright, only the upper side is stressed, and the machine makes a lot of noise when cutting glass.



Lastly, let's see the configurations of the main parts

• Japan Panasonic Sensor
• German Bohle cutter head
• American Honeywell Electrical components - Relay
• Two motorheads to drive the cutting head
• Taiwan Meanwell Power Supply
• Taiwan AIRTAC air cylinder

Okay, everybody, please join with me to check the machine now.
