Hot Sale Small Laser Marking Machine with 20W/30W/50W Output Power
Piece
Negotiable
Product information
High-quality Hot Sale Small Laser Marking Machine with 20W/30W/50W Output Power supplied by Shanghai San Laser Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Marking Depth:
0.01-1mm
Repeat Positioning Accuracy:
0.01mm
Line Width:
0.03mm
Working Area:
100X100mm/150X150mm/175X175mm
Laser Output Power:
20W/30W/50W
Model NO.:
20W/30W/50W
Production Capacity:
5000 Pieces/Year
Specification:
550x215x330mm
Specifications
Marking Depth:
0.01-1mm
Repeat Positioning Accuracy:
0.01mm
Line Width:
0.03mm
Working Area:
100X100mm/150X150mm/175X175mm
Laser Output Power:
20W/30W/50W
Model NO.:
20W/30W/50W
Production Capacity:
5000 Pieces/Year
Specification:
550x215x330mm
Printing Speed:
800 Characters(Depending on The Material and Print
HS Code:
8456110090
Cooling System:
Air Cooling
Number Of Lines Of Characters To Beengra:
Any Line Within The Effective Marking Range
File Format:
BMP/Dxf/Hpgl/JPEG/Plt
Transport Package:
Carton
Origin:
China
Font:
Chinese, English, Numbers, Traditional Chinese...
Barcode:
Code39/Code128/Code126/Qr
Technical Class:
Continuous Wave Laser
Marking Line Type:
DOT Matrix, Vector Integrated Machine
Trade Term:
FOB, Others, EXW, FCA, CFR, CIF, DDP, DAP, CIP
Laser Wavelength:
Fiber Laser
Deflection Shock Mirror:
High-Precision Two-Dimensional Scanning System
Laser Visibility:
Invisible
Operating System:
Linux System
Applicable Material:
Metal
Type:
Optical Fiber Laser Marking Machine
Positioning Method:
Red Light Positioning and Focusing
Port Of Loading:
SHEHZHEN
Trademark:
SanLaser
Marking Method:
Scanning Marking
Laser Classification:
Solid Laser
Payment Term:
T/T, PayPal, Western Union, Small-amount payment, wechat
Marking Speed:
≤7000mm/S
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-02-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union, Small-amount payment, wechat
Preferred Trade Term:
FOB, Others, EXW, FCA, CFR, CIF, DDP, DAP, CIP
Port Of Loading:
SHEHZHEN
Certificates:
CE, Product Inspection Report
Product descriptions from the supplier

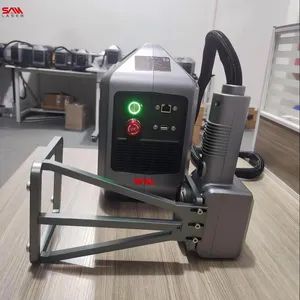

Mini Handheld Fiber Laser Marking Machine: A Revolutionary Compact Solution
Introducing our cutting-edge industrial-grade small laser marking machine, crafted with the most sophisticated integrated technology. After a rigorous development cycle extending over two years and comprehensive on-site verification by 100 customers, this exceptional series has been launched. Effortlessly operable, our lightweight 6 kg micro-marking machine triumphantly replaces cumbersome 150 kg traditional marking equipment, effectively addressing the last-mile after-sales challenge. The adoption of standardized mass production techniques ensures unparalleled quality consistency, significantly enhances cost-effectiveness, and heralds a new era of miniaturization in the laser marking industry. By substantially reducing logistics and after-sales costs, it presents a formidable competitive edge for manufacturing companies, streamlining processes and optimizing expenses.
Application:
This machine is particularly ideal for precision engraving tasks and high-accuracy products. It finds extensive application across various sectors including precision equipment, automotive parts, hardware, tools, accessories, electronic components, food packaging, integrated circuits (IC), electrical appliances, mobile communications, and jewelry, ensuring versatile functionality and exceptional quality.
This machine is particularly ideal for precision engraving tasks and high-accuracy products. It finds extensive application across various sectors including precision equipment, automotive parts, hardware, tools, accessories, electronic components, food packaging, integrated circuits (IC), electrical appliances, mobile communications, and jewelry, ensuring versatile functionality and exceptional quality.
Support Languages
Arabic, English, Persian, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Thai, Traditional Chinese, Turkish, Vietnamese, Polish, Czech, Romanian, Slovak
| Product performance standards | |
| Serial number | Name |
| GB 7247-87 | Radiation satety of laser products,the need for equipment classification and user guidance |
| GB10320-88 | Electrical Safety of Laser Equipment and Facilities |
| ISO9000-3 | International software standards |
| IEC 536 | Classification of protection against electric shock for electrical and electronic equipment |
| Technical parameter table | |
| Laser | Fiber laser generator(second generation) |
| Output power | 20W/30W/50W |
| Marking range | 100x100mm,150x150mm,175x175mm |
| Deflection shock mirror | High-precision two-dimensional scanning system |
| Laser wavelength | 1064mm |
| Marking speed | ≤7000mm/s |
| Operating system | Linux system |
| Marking line type | Dot matrix,vector integrated machine |
| Line width | 0.03mm |
| Repeat positioning accuracy | 0.01mm |
| Positioning method | Red light positioning and focusing |
| Number of lines of characters to beengraved | Any line within the effective marking range |
| Printing speed | 800 characters(depending on the material and printing content) |
| Font | Standard fonts for Chinese,English,numbers,Traditional Chinese,etc. |
| File format | BMP,DXF,HPGL,JPEG,PLT |
| Barcode | CODE39,CODE128,CODE126,QR |
| Power supply | 110V/220VAC,333Wh15Ah |
| Machine power consumption | ≤250W |
| Whole machine operating temperature | 0-40° |
| Overal machine weight | 4.5-7.0kg(plug-in version 4.5-6kg,battery version 5.5-7kg) |
| Laser source | Fiber laser generator |
| Output power | 20 w/30 w/50 w |
| Maximum linear marking speed | <=7000 mm/s |
| Laser wavelength | 1064 nm |
| Marking range | 100*100mm,150*150mm,175*175mm |
| Operating system | Linux system |
| Line width | 0.03mm |
| Repeatability | 0.01mm |
| File format | BMP DXF HPGL JPEG PLT |
| Barcode | CODE39 CODE128 CODE126 QR |
| Power supply | 110V/220VAC 333WH15AH |
| Power consumption | <=250W |
| Operating temperature | 0-40° |
* Highly Experienced Team
Our expert technicians leverage over 12 years of hands-on experience, delivering exceptional service in every interaction.
*100% Customer Satisfaction and Feedback
We ensure prompt responses to all inquiries, providing guidance through videos, images, and various tools to adeptly resolve any issue.
* Guaranteed After-Sales Support
Through robust partnerships with industry giants such as MAX, RAYCUS, and others, we guarantee rapid after-sales service and steadfast support, ensuring customer satisfaction and trust.
Q1: I'm new to laser machines. How do I choose the right one?
A: Don't worry! Just tell us what materials you want to process (e.g., wood, metal, acrylic) and your intended applications (e.g., cutting, engraving). Based on your needs, we'll recommend the best machine model and provide a perfect solution.
Q2: What if I don't know how to operate the machine after receiving it?
A: We provide an English manual and instructional videos with the machine. If you need further assistance, our engineers offer free remote guidance via WeChat, Skype, or video call. For on-site support (charges apply), we can also arrange an engineer to assist you.
Q3: What if the machine has issues during the warranty period?
A: Simply send us photos or videos of the problem, and we'll provide free replacement parts (if covered under warranty). Additionally, we offer lifelong free technical support - just contact us anytime for help!
