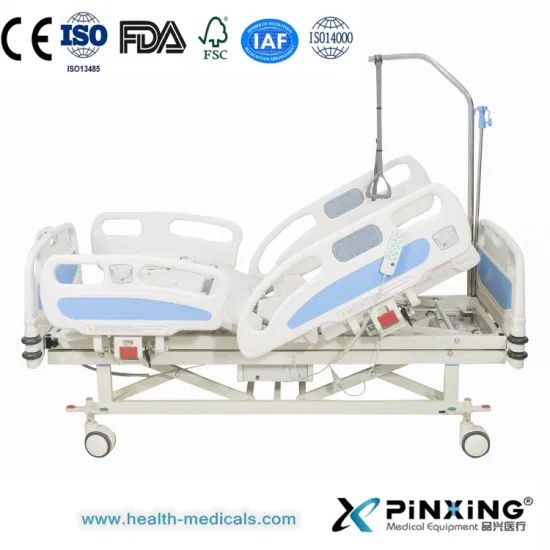

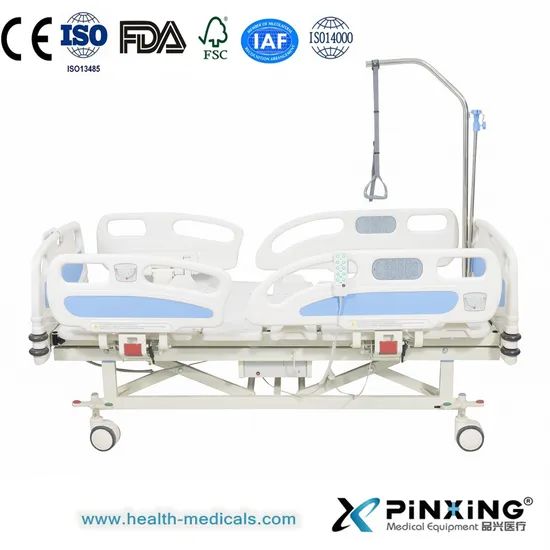

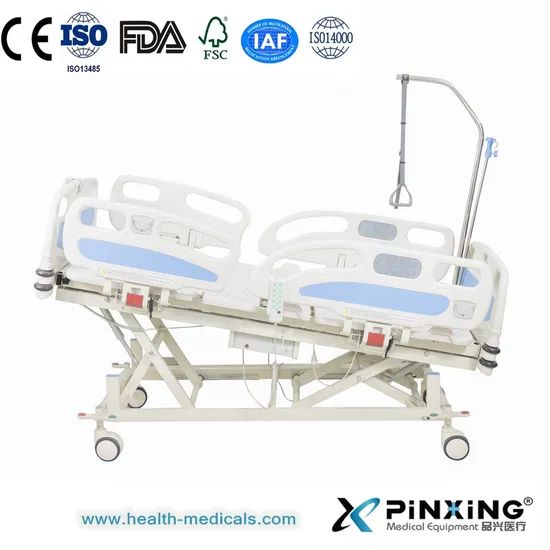

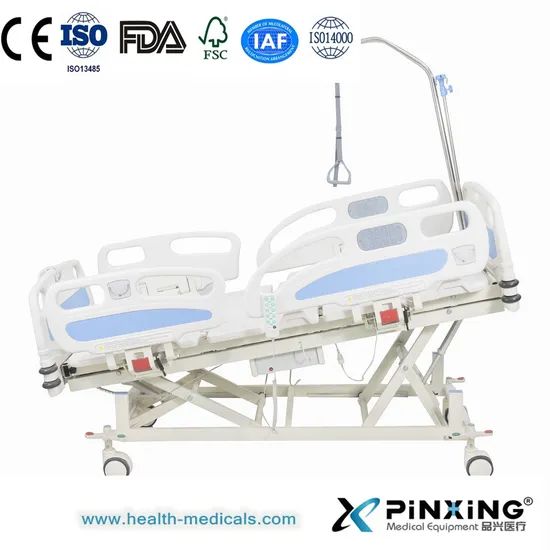

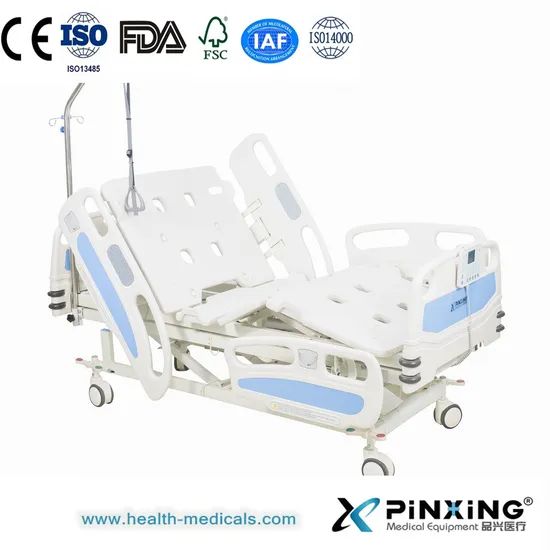

Hot-Selling Brand Medical Automatic 5 Functions Electrical Bed

Hot-selling brand medical automatic 5 functions electrical bed

Intensive Care Bed with Built-in Siderail Control Panel and Weighing Scale System DY5895

Product Description:

Electronic Adjustment:

1. Backrest Angle:                                 0° ~ 78°
2. Footrest Angle:                                 0° ~ 33°
3. Trendelenburg Angle:                      0° ~ 10°
4. Reverse Trendelenburg Angle:       0° ~ 10°
5. Height:                                     from 450 mm to 850 mm(+-3%)

from 580 mm to  970 mm(+-3%,with weighting scale system)
Physical characteristics:

1. Bed Dimensions:2160×1030 mm(+-3%)
2. Bed Weight:                             155KG~170KG(with weighting scale system)
3. Max Load:                                400 KG
4. Dynamic load:                         250KG

Specifications and Functions:

1. Bed frame made of 30*60mm powdered coating cold rolled tube.
2. High-quality motors electronic for adjustments of:  backrest, footrest, height, Trendelenburg and Reverse Trendelenburg;
3. External wired nurse control and patient control.Remote control is optinal.

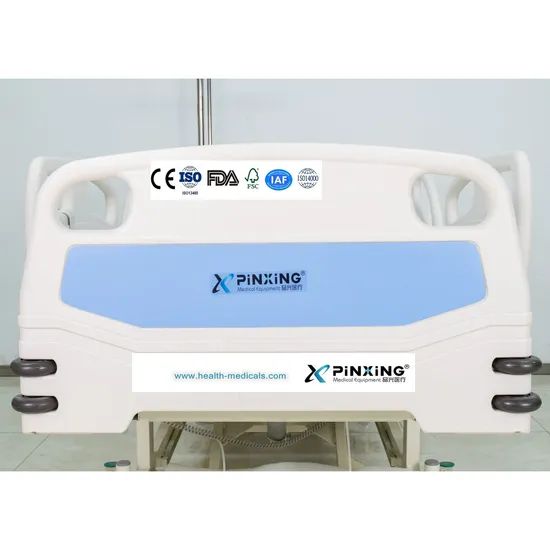

4. Lockable and detachable PP head and foot boards with bumpers.
5. It has unique design with crashproof bumps which effectively protect beds from damage during the move;
6. Easily cleanable, lockable and upgrading side rails with inserted angle indicator for backrest adjustment and Trendelenburg positions.When lowered, the side rails height will be lower than the mattress.
7. 4 section PP mattress-support board is waterproof, rustproof and readily accessible for cleaning and maintaining which required no tools.
8. Drainage bag hooks at both sides
9. Electrcal CPR button
10. IV pole sockets located at four corners
11. Protective plastic corner bumpers
12. Four  360° swivel, central lockable castors. Castor diameter of 150mm.
13. Standard lamination color of Head&foot board and siderail are light blue.
14. Conformity:  CE 42/93/EEC,ISO 13485

Optional Accessories:

About:

• Shanghai Pinxing Sceinece and Technology Co.,ltdwas eatablished in 1996,focused on researching and developing emergency rescue medical equipments and hospital furnitures,such as portable operation lamp,operating table,hospital beds,emergency strectchers,homecare furniture.

• Pinxing Medical Equipment Co.,ltd,a wholly-owned subsidiary of Pinxing Sceinece and Technology Co.,ltd,was established in 2002. The company was named high-tech enterprises, and passed the ISO13485, ISO14000:14001,CE quality management system certification.

• Up to now,Pinxing has obtained more than 100 patent certificates.Leading the trends of the hospital furnitures and emergency rescue medical equipment industry.

Pinxing Medical Equipment Co.,ltd,a wholly-owned subsidiary of Pinxing Sceinece and Technology Co.,ltd,was established in 2002.Having a professional workshop of the production process and quality inspection process,such as robot welding machines, numerical control machine, laser cutter, advanced processing equipment, etc. Pinxing Medical is committed to producing high quality hospital and homecare furnitures,emergency rescue medical equipment and such as beds,bedside locker,stretcher,chairs etc. As a global supplier,Pinxing is to create added value for customers around the world.
