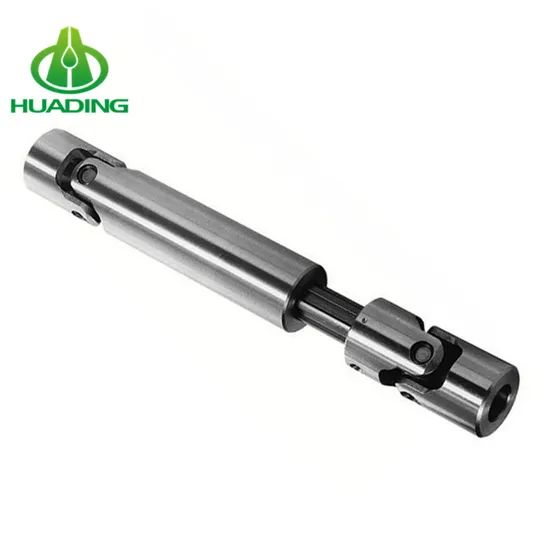

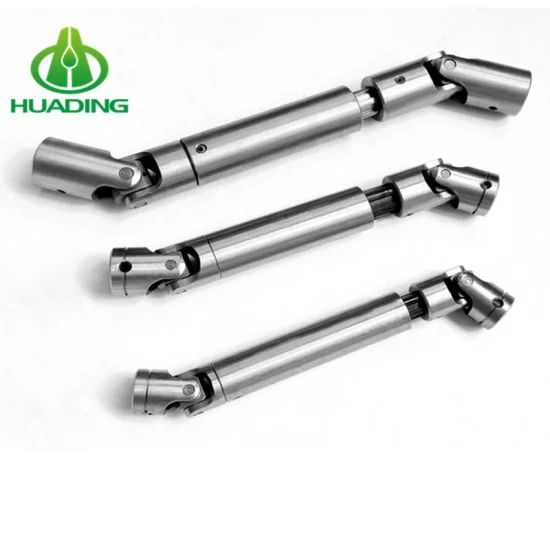

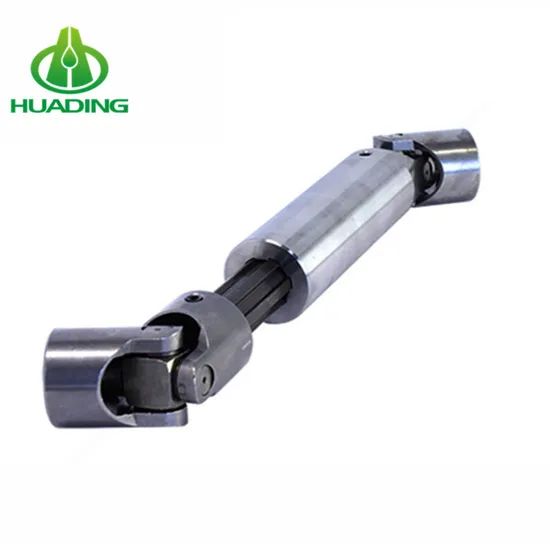

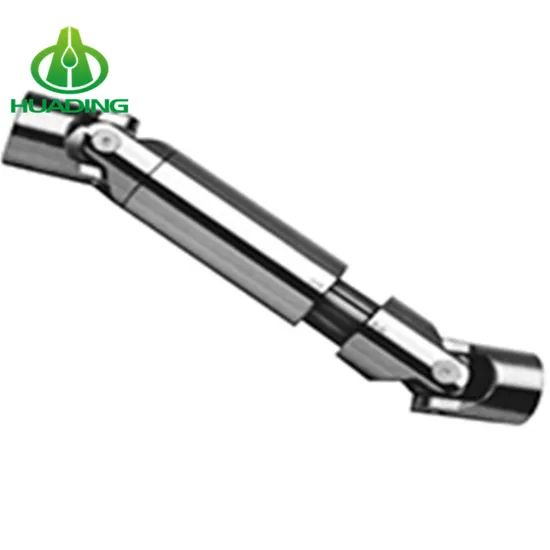

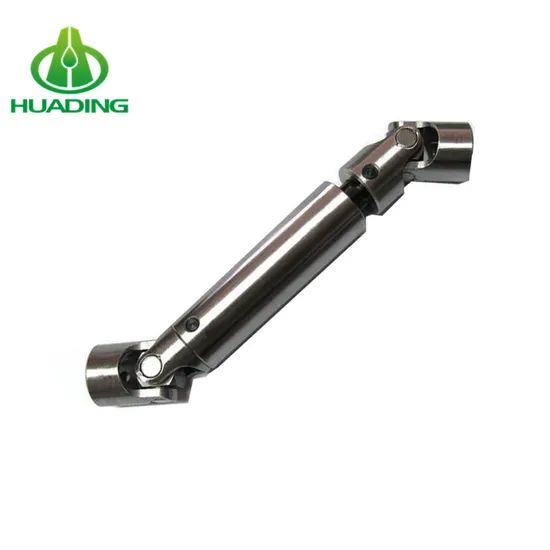

Huading Ws Type Telescopic Universal Joints
1 Piece
$1,5001 Piece
$75Product information
High-quality Huading Ws Type Telescopic Universal Joints supplied by Jingjiang Huading Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing ranges from $75 to $1,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10000pieces/Year
Delivery Time:
20-45day
Material:
35CrMo
HS Code:
8483600
Origin:
China
Length Compensation:
Customer Required
Transport Package:
Depend on Your Quantity
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Production Capacity:
10000pieces/Year
Delivery Time:
20-45day
Material:
35CrMo
HS Code:
8483600
Origin:
China
Length Compensation:
Customer Required
Transport Package:
Depend on Your Quantity
Trade Term:
FOB, CIF, CFR, EXW
Structure:
Flexible
Trademark:
Huading
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Shanghai Port
Size:
Standard Size
Type:
Universal Coupling
Model NO.:
WS
Bore Diameter:
as Your Requirement
Torque:
as Your Requirement
Speed:
as Your Requirement
Specification:
as your requirement
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-07-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
24
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, Others, ISO45001:2018
Product descriptions from the supplier
Small Type Double Joints Universal Joint Coupling(
Features:
1. It is suitable for transmission coupling space on the same plane of two-axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.
2. The WSD type is a single joint universal coupling, and the WS type is a double joint universal coupling.
3. Each section is between the largest axis angle of 45º.
4. The finished hole H7, according to the requirements of keyseating, has six square holes and a square hole.
5. The angle between the two axes is allowed in a limited range as the work requirements change.
| NO | Tn/N·m |
d(H7) | D | L0 | L | L1 | m/kg | I/kg·m2 | ||||||||||
| WSD | WS |
WSD | WS | WSD | WS | |||||||||||||
| Y | J1 | Y | J1 | Y | J1 | Y | J1 | Y | J1 | Y | J1 | Y | J1 | |||||
| WS1 WSD1 |
11.2 | 8 | 16 | 60 | - | 80 | - | 20 | - | 20 | 0.23 | - | 0.32 | - | 0.06 | - | 0.08 | - |
| 9 | ||||||||||||||||||
| 10 | 66 | 60 | 86 | 80 | 25 | 22 | 0.2 | 0.29 | 0.05 | 0.07 | ||||||||
| WS2 WSD2 |
22.4 | 10 | 20 | 70 | 64 | 96 | 90 | 26 | 0.64 | 0.57 | 0.93 | 0.88 | 0.1 | 0.09 | 0.15 | 0.15 | ||
| 11 | ||||||||||||||||||
| 12 | 84 | 74 | 110 | 100 | 32 | 27 | ||||||||||||
| WS3 WSD3 |
45 | 12 | 25 | 90 | 80 | 122 | 112 | 32 | 1.45 | 1.3 | 2.1 | 1.95 | 0.17 | 0.15 | 0.24 | 0.22 | ||
| 14 | ||||||||||||||||||
| WS4 WSD4 |
71 | 16 | 32 | 116 | 82 | 154 | 130 | 42 | 30 | 38 | 5.92 | 4.86 | 8.56 | 0.48 | 0.39 | 0.32 | 0.56 | 0.49 |
| 18 | ||||||||||||||||||
| WS5 WSD5 |
140 | 19 | 40 | 144 | 116 | 192 | 164 | 48 | 16.3 | 12.9 | 24 | 20.6 | 0.72 | 0.59 | 1.04 | 0.91 | ||
| 20 | 52 | 38 | ||||||||||||||||
| 22 | ||||||||||||||||||
| WS6 WSD6 |
280 | 24 | 50 | 152 | 124 | 210 | 182 | 52 | 38 | 58 | 45.7 | 36.7 | 68.9 | 59.7 | 1.28 | 1.03 | 1.89 | 1.64 |
| 25 | 172 | 136 | 330 | 194 | 62 | 44 | ||||||||||||
| 28 | ||||||||||||||||||
| WS7 WSD7 |
560 | 30 | 60 | 226 | 182 | 296 | 252 | 82 | 60 | 70 | 148 | 117 | 207 | 177 | 2.82 | 2.31 | 3.9 | 3.38 |
| 32 | ||||||||||||||||||
| 35 | ||||||||||||||||||
| WS8 WSD8 |
1120 | 38 | 75 | 240 | 196 | 332 | 288 | 92 | 396 | 338 | 585 | 525 | 5.03 | 4.41 | 7.25 | 6.63 | ||
| 40 | 300 | 244 | 392 | 336 | 112 | 84 | ||||||||||||
| 42 | ||||||||||||||||||
Jingjiang Huading Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the design and manufacture of various types of coupling. There are 86 employees in our company, including two senior engineers and no fewer than 20 mechanical design and manufacture, heat treatment, welding, and other professionals.
Our company supplies different kinds of products: high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide good quality products at a reasonable price.
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
Our company supplies different kinds of products: high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide good quality products at a reasonable price.
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
1. Design Services
Our design team has experience in universal joints relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2. Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3. Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4. Research & Development
We usually research the new needs of the market and develop new models when there are new cars in the market.
5. Quality Control
Every step should be a special test by Professional Staff according to the standard of ISO9001 and TS16949.
Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artwork in PDF or AI format.
Q 3:How long is your delivery time?
Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples? Is it free or extra?
Yes, we could offer the sample but not for free. Actually, we have an excellent price principle when you make the bulk order the cost of the sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.
Q 6: What is the MOQ?
A: Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Q 9: What's your payment?
A: T/T.
