Hwanai Copper Terminal Wire Lug DT MOQ100 30D Long Life OEM Accept


Wuhan Hwanai Metal Casting Co., Ltd. focuses on manufacturing and shipping power line components, boasting more than two decades of industry expertise. Powered by state-of-the-art equipment and cutting-edge production methods, the company employs a competent leadership group and more than 500 experienced technicians. Each phase—from sourcing raw materials to processing and quality control—follows global quality benchmarks and sector-specific rules, guaranteeing superior product integrity and dependable operation.

We emphasize cutting-edge innovation and research, consistently integrating emerging technologies and refined methodologies to boost product capabilities and deliver customer-focused offerings. Moreover, we invest in brand development and worldwide promotion, engaging regularly at global exhibitions, sectoral conferences, and similar platforms to deepen ties with international stakeholders.

We will build on our industrial foundation to strengthen our key advantages, penetrate global markets, and collaborate closely with international partners to shape an even more promising tomorrow.

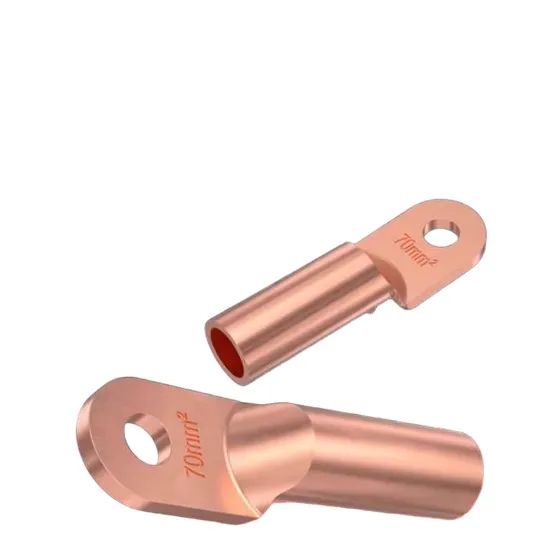

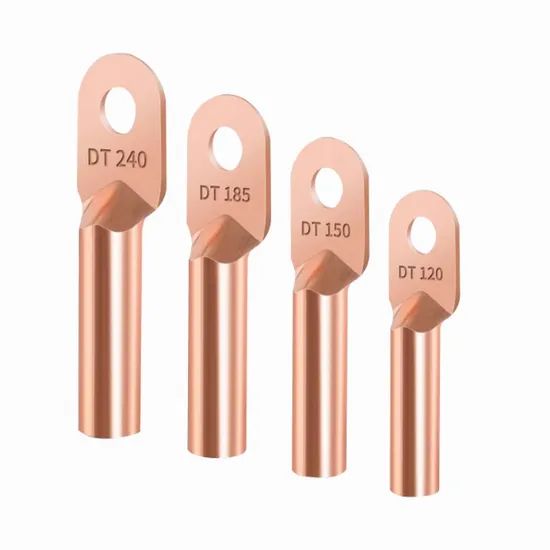

Copper Terminal Lug / Copper Electrical Connector

1. Product Overview & Definition
A copper terminal lug serves as a core electrical part that firmly joins a copper wire to a designated location—like a switchgear terminal, transformer, busbar, another cable, or a ground reference. It ensures stable, low-impedance, and physically strong connections within power transmission and distribution networks.

2. Key Features & Design
Material: Manufactured from high-conductivity, high-purity electrolytic copper (typically meeting ASTM B124 or equivalent standards). This ensures excellent electrical performance and current-carrying capacity.

Tin Plating: The vast majority of copper lugs are electro-tin plated. This plating provides crucial benefits:

Corrosion Resistance: Protects the underlying copper from oxidation and corrosion, which can increase resistance and cause overheating.

Improved Contact: Creates a superior, low-resistance contact surface.

Compatibility: Prevents galvanic corrosion when connected to other tin-plated or aluminum components (though for direct Al-Cu connection, a bimetallic lug is preferred).

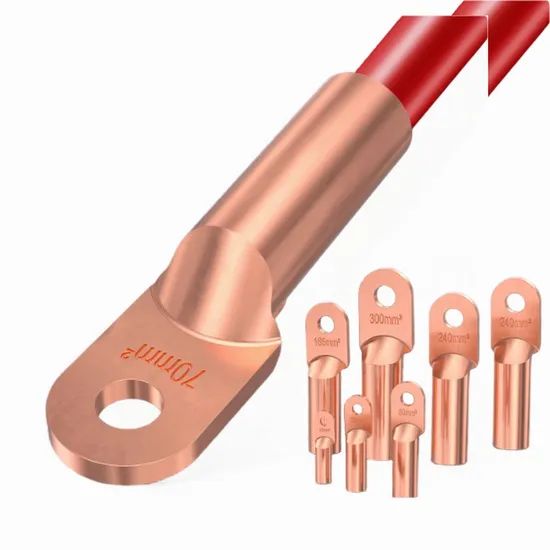

Compression Connection: The lug's barrel (tube) is fused permanently to the exposed copper wire via a specialized crimping instrument and matching dies. This cold fusion forms a sealed joint that withstands vibration, temperature changes, and mechanical loosening.

Various Configurations: Available in multiple styles to suit diverse application requirements:

Ring Tongue: Features a fully enclosed ring. This is the most secure and vibration-resistant type, ideal for permanent connections on equipment terminals.

Fork Tongue (Spade): Features a U-shaped fork. Allows for easy installation and removal without completely removing the mounting bolt, useful for maintenance.

Pin Tongue: A straight pin designed for insertion into clamp-type terminal blocks.

Butt Splice: A tube used to join two copper cables end-to-end in a straight line.

3. Advantages & Benefits

Excellent Conductivity: Pure copper construction ensures minimal electrical resistance and power loss (I²R losses).

Exceptional durability: The compression joint offers strong mechanical support, typically surpassing the cable’s own tensile capacity. It maintains performance under repeated temperature changes and mechanical shock.

Durability and Long Life: Tin plating provides protection against environmental factors, ensuring stable performance over a long service life.

Safety: Provides a secure and standardized method for terminating cables, reducing the risk of loose connections, arcing, and overheating.

Versatility: Wide range of sizes and styles available to match different cable cross-sections (mm² or AWG/kcmil) and application needs.

4. Applications

Copper terminal lugs are ubiquitous in electrical systems where copper wiring is used:

Power Distribution: Connecting cables to switchgear, panelboards, circuit breakers, transformers, and disconnect switches in commercial and industrial settings.

Grounding Systems: Terminating grounding conductors to grounding bars or rods.

Industrial Machinery: Wiring control panels, motors, and other equipment.

Renewable Energy: Interconnections within solar combiner boxes, inverter terminals, and wind turbine control systems.

Telecommunications and Data Centers: Providing reliable connections in power distribution units (PDUs).

5. Installation Notes

Correct Sizing: It is critical to select a lug that matches the exact cross-sectional area of the copper conductor.

Proper Tooling: Use a calibrated compression tool and the manufacturer-specified die. Using the wrong tool or die can result in an unreliable connection.

Cable Preparation: Strip the cable insulation to the precise length indicated on the lug barrel. Ensure the conductor is clean and undamaged.

Torque Specification: To secure the lug to a terminal, apply the correct tightening force using a torque wrench as per the manufacturer’s recommended setting. This maintains ideal electrical contact while preventing harm to either the lug or the terminal.

We do quality-inspection before shipment for each order of goods

1. Over 20 years production experience
2. Over 500 skillful workers
3. QA & QC production management
4. Professional export team
5. High cost-effective
6. Stable quality
7. Many workshops with strong production ability for fast delivery.
