Hwanai Single Wire Cooper Clamp MOQ 100PCS Origin China Model NO. JDT OEM Acceptable Shelf Life Long Trademark Hwanai Delivery 30 Days


      Wuhan Hwanai Metal Casting Co., Ltd. specializes in the production and export of power line hardware, with over 20 years of experience in the industry. Equipped with modern production facilities and advanced manufacturing techniques, our factory has a skilled management team and over 500 skillful workers. From raw material procurement to production processing and final inspection, every step strictly adheres to international quality standards and industry regulations, ensuring high product quality and reliable performance.

We prioritize technological innovation and R&D, continuously adopting new technologies and advanced processes to enhance product performance and introduce market-driven solutions. Additionally, we focus on brand building and global marketing, actively participating in international trade shows, industry forums, and other events to strengthen collaboration with our global partners.

Moving forward, we will continue leveraging our industrial strengths to enhance core competitive ability, expand into international markets, and work hand-in-hand with global customers to create a brighter future together.

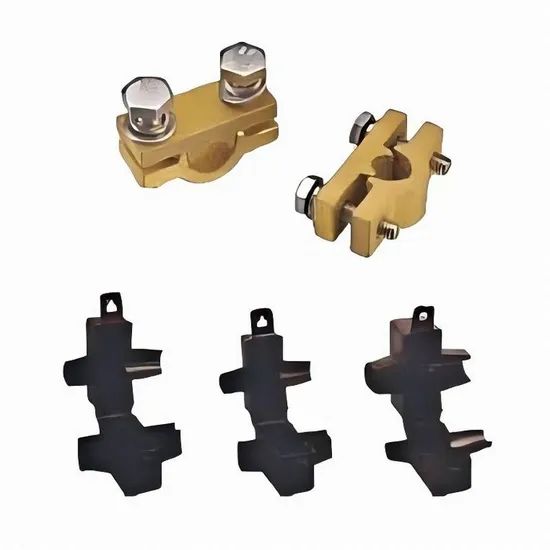

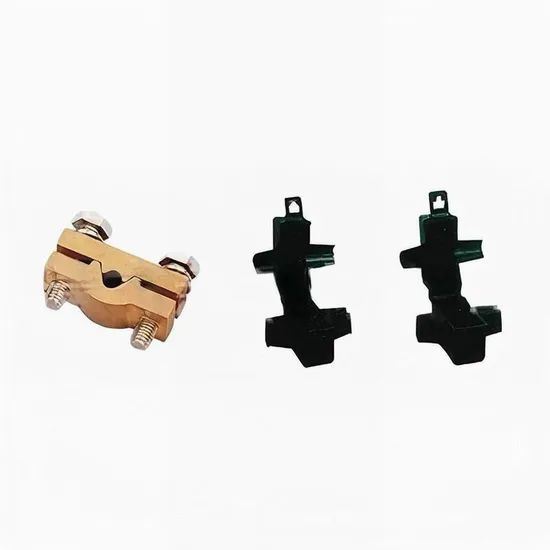

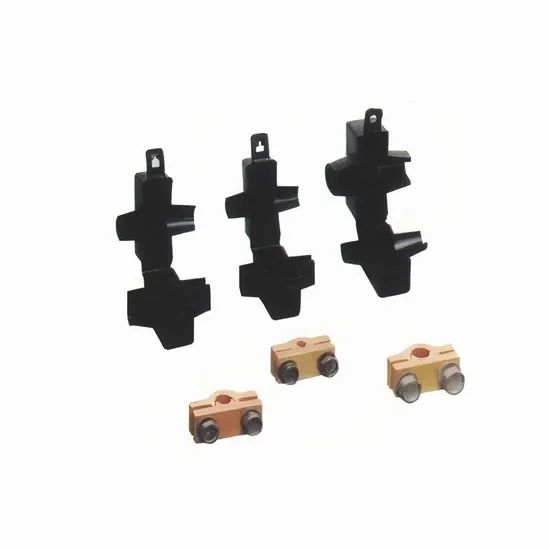

Copper Single-Wire Clamp

(Also known as: Copper Single-Bore Clamp, Monobloc Copper Connector)

A Copper Single-Groove Clamp is a fundamental electrical connector used in overhead power distribution systems. Designed for splicing or terminating single-conductor cables, it features a streamlined, one-channel design that ensures secure mechanical grip and low-resistance electrical contact between conductors or to equipment terminals.

Key Features & Functions:
Material:

High-purity electrolytic copper (C11000/C10200) for superior conductivity (≥98% IACS) and corrosion resistance.

Optional tin/silver plating to prevent oxidation in harsh environments.

Design:

Single-groove channel: Accommodates one conductor (e.g., ACSR, AAAC, copper cable).

Compression-type or bolted-type construction for reliable, gas-tight connections.

Smooth radius design to minimize corona effect in HV applications.

Applications:

Tap connections on distribution lines (≤ 33 kV).

Service drops, jumpers, and transformer terminations.

Grounding conductor connections.

Technical Standards:
Complies with IEC 61238 (Compression and mechanical connectors), ASTM B124 (Copper forgings), and UL 486A-B (Wire connectors).

Rated for continuous current up to 600A (varies by size) and fault current withstand per IEEE 837.

Advantages:
Low Resistance: Minimizes power loss (< 20 μΩ/m) and overheating.

Corrosion Resistance: Ideal for coastal/industrial zones (salt/fog resistance).

Lightweight & Compact: Simplifies installation on poles or confined spaces.

Maintenance-Free: Cold-flow copper design maintains contact pressure over decades.

Installation Guidelines:
Surface Prep: Clean conductor with wire brush to remove oxides.

Alignment: Insert conductor fully into the groove.

Fastening:

Bolted type: Tighten hex nuts to specified torque (e.g., 25 N·m).

Compression type: Crimp with calibrated die (e.g., 12-ton hydraulic tool).

Inspection: Verify no gap exists between clamp/conductor; measure contact resistance.

Variations:
Insulated Versions: PVC-coated for safety in crowded line sections.

Bi-Metallic Design: Copper-aluminum interface for mixed-metal systems.

Shielded Type: Integrated stress cone for HV cable terminations.

We do quality-inspection before shipment for each order of goods

1. Over 20 years production experience
2. Over 500 skillful workers
3. QA & QC production management
4. Professional export team
5. High cost-effective
6. Stable quality
7. Many workshops with strong production ability for fast delivery.
