Hydraulic Fabric Bursting Strength Testing Machine Origin China Weight 125kg Certificate CE Display Digital HS Code 90248000
1 Set
$5,8001 Set
$10,300Product information
High-quality Hydraulic Fabric Bursting Strength Testing Machine Origin China Weight 125kg Certificate CE Display Digital HS Code 90248000 supplied by Quanzhou Gester Instruments Co., Ltd.. Bulk wholesale pricing ranges from $5,800 to $10,300 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Accuracy Grade:
0.5
Production Capacity:
100set/ Month
Net Weight:
125kg
Weight:
125kg
Package Gross Weight:
180.000kg
Delivery Time:
20-30 Days After Receive The Payment
Specification:
550*450*700mm
Package Size:
76.00cm * 56.00cm * 98.00cm
Specifications
Accuracy Grade:
0.5
Production Capacity:
100set/ Month
Net Weight:
125kg
Weight:
125kg
Package Gross Weight:
180.000kg
Delivery Time:
20-30 Days After Receive The Payment
Specification:
550*450*700mm
Package Size:
76.00cm * 56.00cm * 98.00cm
HS Code:
90248000
Maxcapacity:
<1000KN
Power Supply:
AC 220V 50/60Hz 500W
Power Source:
AC220V
Certificate:
CE
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Control:
Computer Control
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Display:
Digital
Load Way:
Electronic Load
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
GESTER
Model NO.:
GT-C12A
Payment Term:
LC, T/T, Western Union
Type:
Material Testing Machine
Oil Cylinder Position:
No Have
Loading Method:
Static Load
Payment Methods:
Support payments in USD
Transport Package:
Wooden Package
Port Of Loading:
Xiamen Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
68
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Xiamen Port
Certificates:
ISO9001:2015
Product descriptions from the supplier

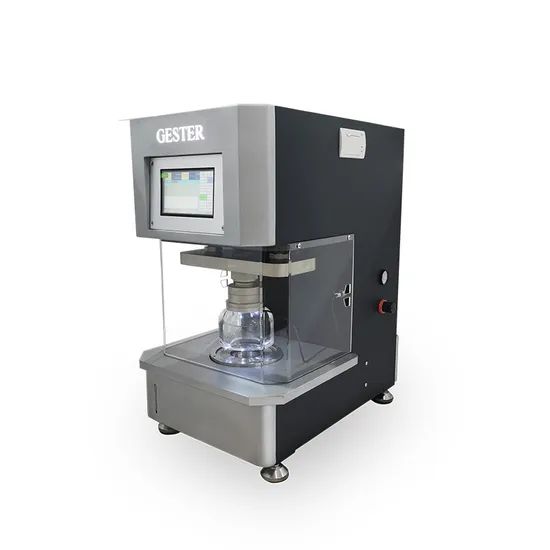

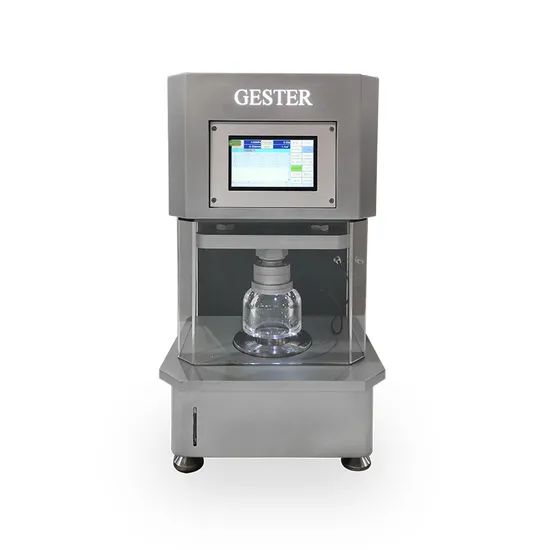

GT-C12A Brusting Strength Tester
Applications
Hydraulic bursting strength tester is applied to determine the bursting strength and distension at burst of woven, knitted and non woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.
Features
1. This machine use hydraulic method, meet multinational standards and equipped with several changeable test clamp.

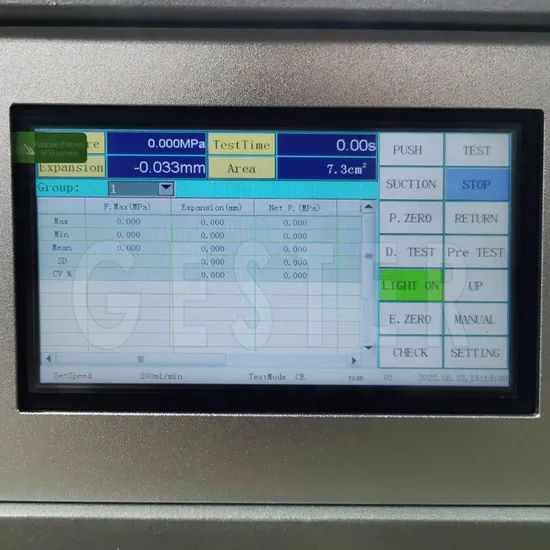

2. The simple interface touching screen controller is easy and simple to handle.
3. The specimen was clamped firmly by the pneumatic force which can also save effort.

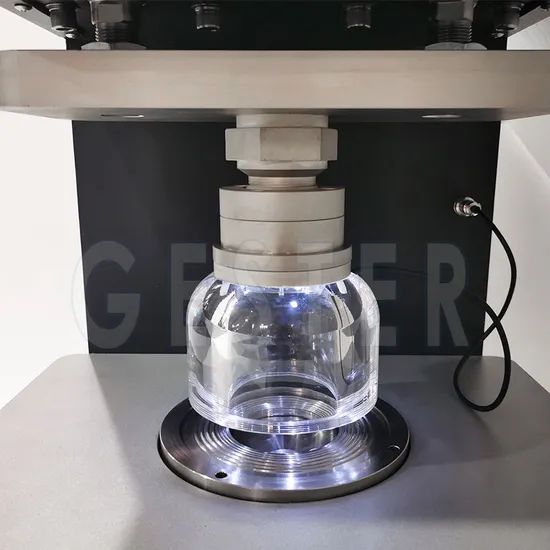

4. The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily.
5. The machine can induct the burst automatically which is much more sensitive and reliable.
6. The bursting distension can go up to 75mm.
7. The AC servo drive system with low noise and wide range of applications.
4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
8. The tester bring saving and printing functions and support on-line operation.
9. Provide on-line interfaces, professional detection software which can be used to analysis testing result.
Standards
ISO 13938.1, FZ/T 60019, FZ/T 01030, ASTM D3786, D751 BS 4768, WOOLMARK TM 29
Key Specifications
Why choose us
GESTER, the SGS audited supplier, has pass ISO 9001 & UKAS certificate. We can offer CE certificate, Calibration certificate by ISO 17025 authorized testing lab.
Applications
Hydraulic bursting strength tester is applied to determine the bursting strength and distension at burst of woven, knitted and non woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.
Features
1. This machine use hydraulic method, meet multinational standards and equipped with several changeable test clamp.
2. The simple interface touching screen controller is easy and simple to handle.
3. The specimen was clamped firmly by the pneumatic force which can also save effort.
4. The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily.
5. The machine can induct the burst automatically which is much more sensitive and reliable.
6. The bursting distension can go up to 75mm.
7. The AC servo drive system with low noise and wide range of applications.
4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
8. The tester bring saving and printing functions and support on-line operation.
9. Provide on-line interfaces, professional detection software which can be used to analysis testing result.
Standards
ISO 13938.1, FZ/T 60019, FZ/T 01030, ASTM D3786, D751 BS 4768, WOOLMARK TM 29
Key Specifications
| Model | GT-C12A-1 | GT-C12A-2 |
| Range | 2.00Mpa | 10.000Mpa |
| The min. Division value | 0.001Mpa | 0.003Mpa |
| Test area | 7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm), 50cm2 (Φ79.8mm), 100 cm2 (Φ112.8mm) can be option |
|
| Thickness of rubber diaphragm | ≤2mm | |
| Pressure speed | 100ml/min - 500ml/min | |
| Maximum expansion height | ±1 mm, when the height at burst up to 70 mm | |
| Accuracy | Kpa, kgf/ cm2, atm, mmHg, lb/in2 free shift | |
| Test method | Constant Rate Bursting, Constant Expansion, Constant Pressure, Constant Time Bursting |
|
| Output | Printer ,display output, and can be connected to the computer | |
Why choose us
Gester Instruments Co.,LTD is professionally engaged in production and R&D of physical properties testing equipment. We specialize in providing the total solutions of Toys and Baby Stuff Testing Equipment, Textiles &Garments Testing Equipment, Footwear Testing Equipment, Protectiveand Mask Testing Equipment.GESTER is a key national enterprise in instrumentation industry over 20years of professional experience in manufacturing testing machines.All the products meet with: ISO, ASTM, EN, AATCC, BS,DIN, JIS and other requireable standards.
GESTER, the SGS audited supplier, has pass ISO 9001 & UKAS certificate. We can offer CE certificate, Calibration certificate by ISO 17025 authorized testing lab.
