Hydraulic Press Press Brake Press Brake Wc67y-63-2500
Piece
Negotiable
Product information
High-quality Hydraulic Press Press Brake Press Brake Wc67y-63-2500 supplied by Anhui Chizhou Household Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Distance Between Hous:
2000mm
Working Table Length:
2500mm
Throat Depth:
300mm
Specification:
300x150x240cm
Max Open Height Between Working Table Su:
380mm
Production Capacity:
5000sets/Month
Main Motor:
7.5kw
Nominal Pressure:
800kn
Specifications
Distance Between Hous:
2000mm
Working Table Length:
2500mm
Throat Depth:
300mm
Specification:
300x150x240cm
Max Open Height Between Working Table Su:
380mm
Production Capacity:
5000sets/Month
Main Motor:
7.5kw
Nominal Pressure:
800kn
Type:
Double Column Hydraulic Press
Trade Term:
FOB, CIF
Certification:
ISO9001, CE
Payment Term:
LC, T/T, D/P, Western Union
Origin:
Made in China
Condition:
New
Transport Package:
Plywood Case
Port Of Loading:
Shanghai Port
Model NO.:
WC67Y-63-2500
Trademark:
White eagle
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
1994-06-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
122
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier

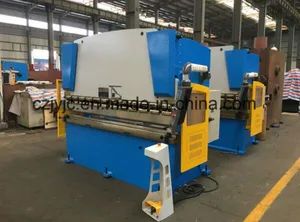

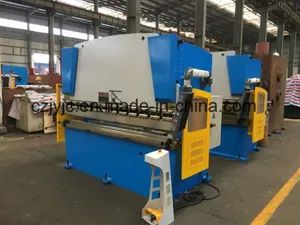

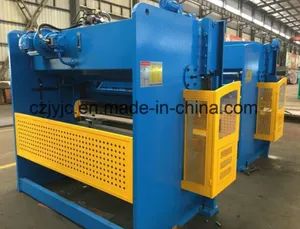

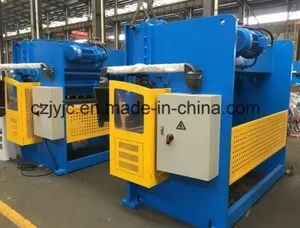

Hydralic Press Brake WC67Y 63*2500 DRO
1.Specification
2.Main Application
This machine is used to bend various kinds of metal plates. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces. And it can also be used for punching when adequately equipped.
This machine is suitable for manufacturing aero planes, ships, automobiles and electric appliance, owing to its high efficiency in production.
3.Functions and Features
This machine possesses the high efficiency of production and certain accuracy in bending metal plates.
It is necessary to select upper die of different shape and lower die with different width V-groove for bending steel plates of different thickness, shape of size.
With the help of the bending pressure chart or the calculating formula, the bending pressure can be figured out.
By adopting hydraulic driving, it is possible to prevent serious overload accidents caused by changing of plate thickness or by inappropriate selection of V-shaped lower die. The machine is characterized by smooth running, little noise and easy operation, and its rated pressure in the whole working process is maintained stable.
1.Specification
| NO. | Name | Specification | Unit | Remark | |
| 1 | Nominal pressure | 800 | KN | ||
| 2 | Working table length | 2500 | mm | ||
| 3 | Distance between hous | 2000 | mm | ||
| 4 | Throat depth | 300 | mm | ||
| 5 | Ram travel | 120 | mm | ||
| 6 | Max open height between working table surface and ram | 380 | Mm | ||
| 7 | Adjustment to ram trap | 120 | mm | ||
| 8 | Speed of ram travel | No load | 80 | m/s | |
| Full load | 9 | m/s | |||
| return | 60 | m/s | |||
| 9 | Axial plunger pump | type | CP0-20-P-10R | actualuse 26MPa | |
| flow | 20 | ml/r | |||
| pressure | 25 | MPa | |||
| 10 | Main motor | type | YE2-132M-4 | B35 | 50HZ |
| power | 7.5 | Kw | |||
| speed | 1440 | rpm | |||
| 11 | Motor for adjusting ram | type | Y2-6324 | B14 | 50HZ |
| power | 180 | W | |||
| speed | 1400 | rpm | |||
| 12 | Motor for adjusting back | type | Y271-4 | ||
| Power | 370 | Rpm | |||
| speed | 1400 | W | |||
| 13 | Overall dimension | Length | 2800 | mm | |
| Width | 1500 | mm | |||
| height | 2380 | mm | |||
2.Main Application
This machine is used to bend various kinds of metal plates. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces. And it can also be used for punching when adequately equipped.
This machine is suitable for manufacturing aero planes, ships, automobiles and electric appliance, owing to its high efficiency in production.
3.Functions and Features
This machine possesses the high efficiency of production and certain accuracy in bending metal plates.
It is necessary to select upper die of different shape and lower die with different width V-groove for bending steel plates of different thickness, shape of size.
With the help of the bending pressure chart or the calculating formula, the bending pressure can be figured out.
By adopting hydraulic driving, it is possible to prevent serious overload accidents caused by changing of plate thickness or by inappropriate selection of V-shaped lower die. The machine is characterized by smooth running, little noise and easy operation, and its rated pressure in the whole working process is maintained stable.
