Hzyl 8000 Laboratory Test Instrument Power Transformer Dielectric Oil Spectrometer

1.Meet ASTM D6595, ASTM D6728, NB/SH/T0865-2013, HB20094.1-2012 testing standards;
Concurrently assess 24 elements (Al, Ba, B, Ca, Cd, Cr, Cu, Pb, Mg, Mn, Mo, Ni, P, Si, Ag, Na, Sn, Ti, V, Zn, Fe, K, Li, Sb);
Analyzes up to 19 elements including Al, B, Cd, Cr, Cu, Pb, Mn, Mo, Ni, Si, Ag, Na, Sn, Ti, V, Fe, K, Li, Sb, and others: detection limit 0–1000 ppm; additionally covers Ba, Ca, Mg, P, Zn, and five more: range 0–5000 ppm
Optical fiber transmits optical input signals, employing a Paxing-Longe configuration, Roland circular optical arrangement, and two concave holographic diffraction gratings; each grating features an engraved line density of at least 2700 lines per millimeter and a focal length of no less than 500 millimeters;
5. Spectral range: 190~800nm;
Equipped with a high-efficiency 12 CCD optical setup, each pixel features 3648 bits and measures 8×200um, enabling greater sensitivity to spectral energy due to increased pixel count;
7. Optical system thermostat control: 38 ºC ± 0.1 ºC, effectively ensure the accuracy and stability;
8. The new 'digital arc light source' control, with small size, light weight, stable excitation and other advantages;
9. Sampling volume: about 2mL, sample testing speed, single test time ≤ 30 seconds;
Excitation chamber: features error identification; continuous tracking of oil cup, disc electrode, and discharge gap positions; built-in exhaust system; excitation door equipped with safety linkage; adjustable electrode distance;
11. Equipped with external computer and printer, external electrode grinder, easy to clean, can avoid spilling the test bench;
Powered by an in-house spectral analysis expert system featuring data handling, trend monitoring, and forecasting capabilities, it enables comprehensive assessment of current equipment performance, anticipates future operational states, and offers a solid foundation for optimal operation and maintenance decisions;
Operation software: Features a Chinese-language user interface; displays intensity, intensity ratio, and concentration in ppm; accesses spectral curves based on concentration levels; supports both automatic curve fitting and manual adjustments; enables creation, saving, and printing of data reports; includes statistical processing and trend monitoring (statistics such as standard deviation, relative standard deviation, mean, maximum, and minimum values). (Statistics encompass, but are not limited to, standard deviation, relative standard deviation, mean, maximum/minimum values, etc.)
14. Interface requirements: standard data serial port, USB interface;
15. Power supply: 220V ± 10%, 50Hz;
16. Size: length 860mm * width 470mm * height 620mm;
17. Weight: 95Kg;
18. Packaging requirements: equipment with a special transport box, easy to move outdoor site use;

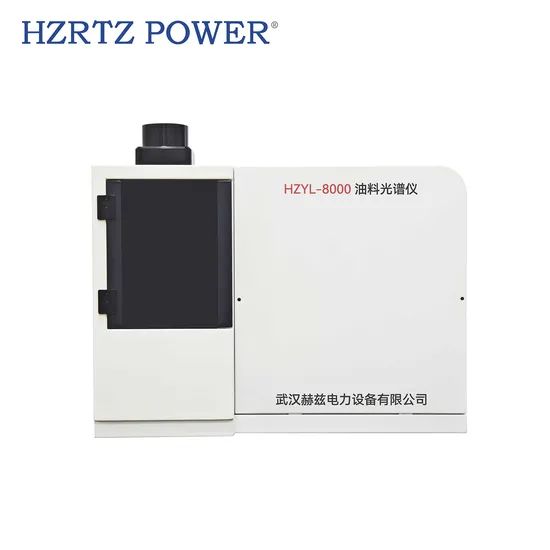

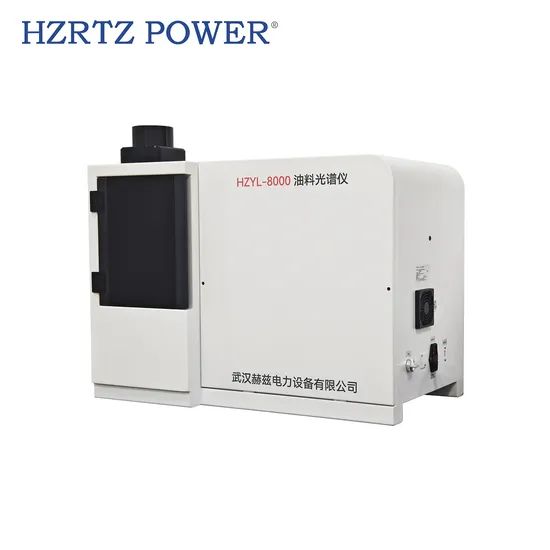

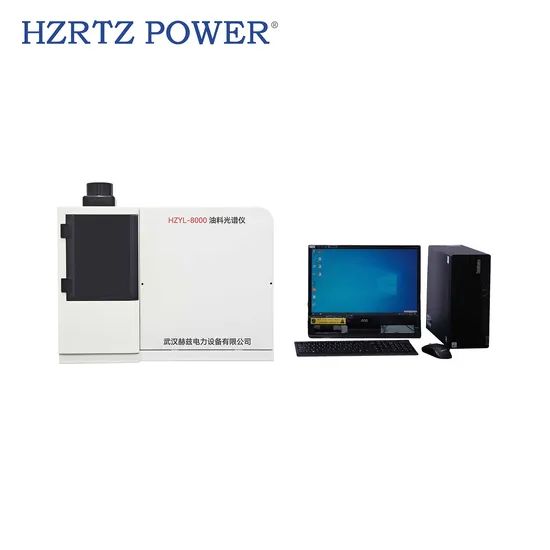

Product Photos

Q1:Is your company a sales or a manufacturer?
We are an integrated trade and manufacturing company with our own factory.

Can our brand be tailored to match our identity, or can the machine’s pre-installed software be modified to meet specific needs?
Yes, we accept OEM/ODM/OBM and can customize the built-in software of the product according to the customer's special requirements.

Q3:What is the usual lead time? How long can we receive the order after placing it?
Stock items typically arrive within 5 to 7 business days through the quickest international shipping option. Delivery times might differ based on order volume, presence of custom requests, and the selected shipping speed.

Q4:How can we ensure that the product will not be damaged during transportation, considering the large size of the product?
Our products are securely protected by expertly designed inner and outer packaging during shipping. To guarantee immediate usability, we provide a backup unit for any delicate or unique components.

How do you manage post-purchase support? What steps do you take if a product turns out defective or if a user is unsure about its usage?
If product defects arise from non-human factors, a one-year coverage begins upon delivery, along with ongoing technical assistance. All other post-purchase concerns are resolved by our expert team within 24 hours. The package includes a user guide and a setup tutorial.
