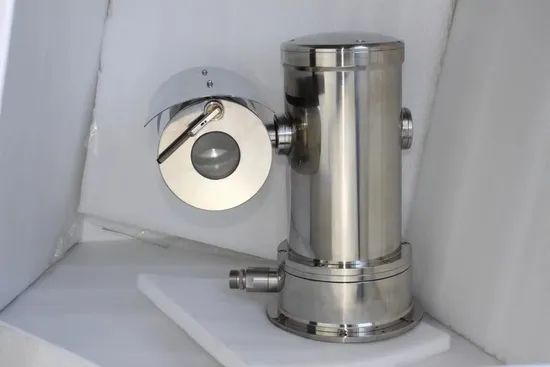

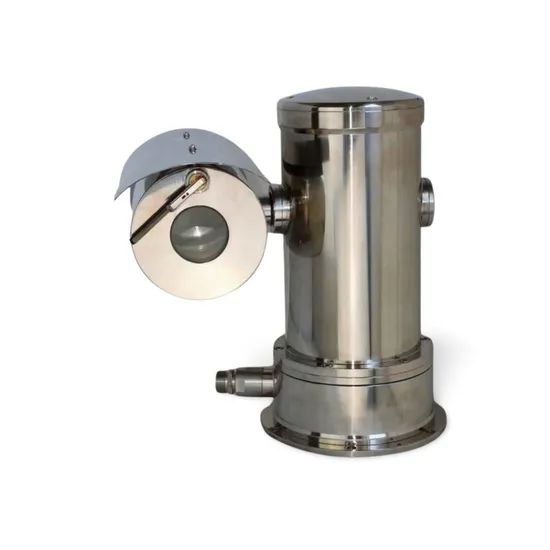

IP68 Stainless Steel Explosionproof PTZ Camera for CCTV Sensor CCD Origin China Model NO. 120X Type CCTV Camera HDMI Format

This product adopts a more advanced manufacturing process, making the quality and performance of the product in a leading position. The product can be used alone in the environment with flammable and explosive gas and combustible dust. This product is a day and night network HD integrated machine, the Windows are made of tempered glass, durable at the same time, to ensure clear picture quality. Precision motor drive, responsive, smooth operation, accuracy deviation less than 0.1 degrees, no image jitter at any speed, support power state memory function, power on automatically return to the head and lens state before power, support lightning protection, surge prevention, surge prevention; 360° continuous rotation in horizontal direction, +90°-90° in vertical direction, no monitoring blind area.
1.304/316L stainless steel shell

1. Toughened coating high-strength glass window
2. Stable, high reliability, dustproof and waterproof level up to IP68
3. Support digital wide dynamic
4. With wiper function
5. optional camera 8. Pre-position 12
6. can be equipped with spray device
7. High sensitivity, true day and night conversion function

Product Overview:
Precision motor drive, responsive, smooth operation, accuracy deviation less than 0.1 degrees, no image jitter at any speed
• Support power failure state memory function, automatic return to the head and lens state before power failure
• Support lightning protection, surge prevention, surge prevention
• horizontal 360° continuous rotation, Vertical direction +90°-90°, no monitoring blind area • Horizontal preset point speed up to 40°/s, vertical preset point speed up to 40°/s
• Horizontal keying speed 0.1° -30°/s, vertical keying speed 0.1° -30°/s
• Support 128 preset bits
• Supports 3 cruise scans, each of which can add 8 preset points. Horizontal scanning, vertical scanning, random scanning 3 scanning modes
• Support the proportional multiplier function, rotation speed can be automatically adjusted according to the lens multiplier
• Support software to modify the baud rate, address code
• Input voltage: 220VAC/DC24V, factory support only one of the input voltage range: ±10%
• Working current: < 450mA (220VAC), < 4000mA (DC24V)
• Power consumption: about 100W
• Communication mode: RS-485
• Communication rate: adjustable
• Communication protocol: PELCO-D/P, ONVIF2.0
• Electrical connection: 3-core power supply, 2-core shielded control signal, super five types of cable support H.265 efficient compression algorithm, greatly reduce the bit rate
• 2 million pixels progressive scan 1/2.8" CMOS
• Maximum resolution up to 1920×1080
• 20 times optical magnification, focal length 4.7-94mm
• Minimum illumination: Color[email protected]
• Support ICR infrared filter type automatic switching
• Focus fast, accurate wide dynamic 120db
• Support 3D-DNR, low bit rate
• Full features: heartbeat, PTZ control, alarm, audio, user management.
