Ibr Trapezoid 840 Roofing Sheets Metal Panel Roll Forming Machine
1 Set
$9,8002 Set
$7,000Product information
High-quality Ibr Trapezoid 840 Roofing Sheets Metal Panel Roll Forming Machine supplied by Cangzhou Dixin Roll Forming Machine Co., Ltd.. Bulk wholesale pricing ranges from $7,000 to $9,800 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty:
12 Months
Step Of Forming Roller:
13steps
Production Capacity:
20 Set Per Month
Material Of Frame:
300h Steel
Voltage:
380V/60Hz/3phase
Power Of Main Motor:
4kw
Motor Power Of Hydraulic Station:
4kw
Diameter Of Shaft:
75mm
Specifications
Warranty:
12 Months
Step Of Forming Roller:
13steps
Production Capacity:
20 Set Per Month
Material Of Frame:
300h Steel
Voltage:
380V/60Hz/3phase
Power Of Main Motor:
4kw
Motor Power Of Hydraulic Station:
4kw
Diameter Of Shaft:
75mm
HS Code:
84552210
Line Speed:
About 12 M/Min
Origin:
Botou Hebei China
Certification:
CCC, ISO9001, CE
Customized:
Customized
Trademark:
DX
Specification:
DX 1000
Drive Type Of Roll Forming Machine:
Drive by Chain
Trade Term:
FOB, CIF, CFR, EXW
Oil Pump Of Hydraulic Station:
Gear Oil Pump (High Grade)
Feature:
High Efficiency
Power Source:
Hydraulic Pressure
Name:
Ibr Roof Roll Forming Machine
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Forging Forming Method:
Mold Forging
Condition:
New
Port Of Loading:
Tianjin Port, Qingdao port
Advantage:
Use Widely
Transport Package:
Water-Proof Packaging, Covered with Plastic Film
Model NO.:
ibr roof roll forming machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-05-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
48
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port, Qingdao port
Certificates:
BV Agreement Manufacture, German BV Assessed Supplier, German TUV Assessed Factory, GOV Agreement of Operate factory, GOV Tax No., Italy CE, Made-in China Sales Agreement, SGS Agreement, SGS Audited Supplier, SGS Paper Books, SGS Production Capacity&Workflow, SGS Supplier Assessment Report, SGS Working Building, SGS Workshop Building
Product descriptions from the supplier

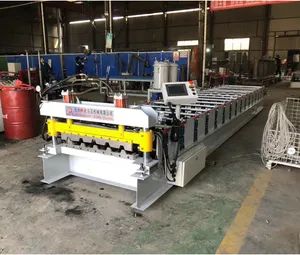

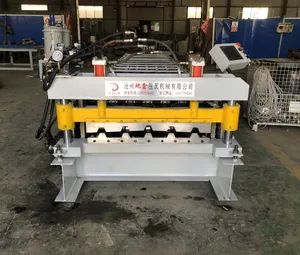

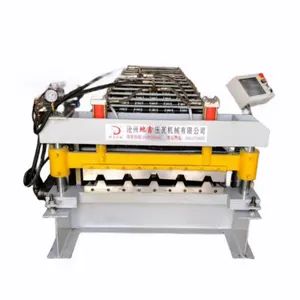

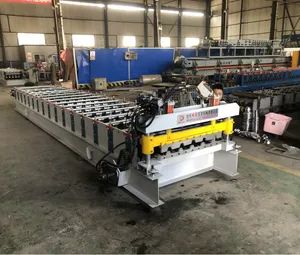

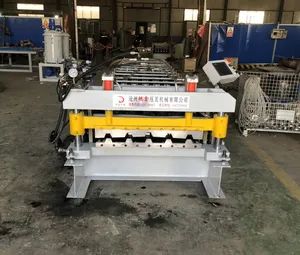

Ibr Trapezoid 840 Roofing Sheets Metal Panel Roll Forming Machine
The advantage of IBR sheet includes beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
1.Panel drawing for your reference.
Equipment detailed parameters:
| 1.Processing material | aluzinc/galvanized steel/colored steel coil |
| 2.Material thickness | 0.3-0.8mm |
| 3.Feeding width: | 1000mm |
| 4.Effective width | 840mm |
| 5.Main motor power | 4kw |
| 6.hydraulic pump power | 4kw |
| 7. Shaft diameter | 75mm |
| 8.Forming steps | 13steps |
| 9.Main frame | 300H Steel frame |
| 10. Side plate thickness | 16mm |

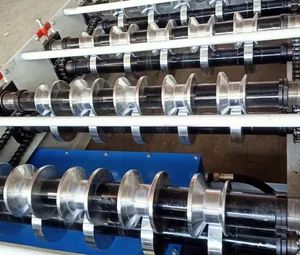

| 11.Roller material | 45# forged steel, with hard chrome plating |
| 12.Control systerm | PLC control system with touch screen |
| 13.Cutting blade material | Cr12 |
| 14.Working speed | About 10-12m/min |
| 15. Transmission way | 1 inch chain drive |
| 16. Machine size (mm) | About 6800*1500*1400mm |
| 17. Machine weight | About 2.5ton |
| 18.Power supply | 380v,3phase,50hz or accodring to customer request |
Working flow:
Uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- receiving table
a. Need one 20 or 40 ft container, according to your final drawing.
b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is
covered with anti-rust oil.
c. Spare parts in carton box.
We know well the requirements for the customers from different countries and have an outstanding export teams who will take care of your requests. Our experts and skilled workers complete the work with great precision.
We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.
Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
