Icp-6800 Metal Analyzer Icp Oes Spectrometer Origin China Weight 0-100Kg Frequency 50±1HZ Model NO. ICP-6800 HS Code
1 Piece
$14,588Product information
High-quality Icp-6800 Metal Analyzer Icp Oes Spectrometer Origin China Weight 0-100Kg Frequency 50±1HZ Model NO. ICP-6800 HS Code supplied by Macylab Instruments Inc.. Bulk wholesale pricing is $14,588 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Weight:
0-100Kg
Package Size:
180.00cm * 80.00cm * 85.00cm
Package Gross Weight:
300.000kg
Production Capacity:
5000
Frequency:
50±1HZ
HS Code:
9027300000
Power Source:
AC220V±22V
Element:
Analytic Instrument for Trace Element
Specifications
Weight:
0-100Kg
Package Size:
180.00cm * 80.00cm * 85.00cm
Package Gross Weight:
300.000kg
Production Capacity:
5000
Frequency:
50±1HZ
HS Code:
9027300000
Power Source:
AC220V±22V
Element:
Analytic Instrument for Trace Element
Performance:
Automation
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Display:
Computer Screen
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, CIF, CFR
Dispersive Element:
Grating Spectrometer
Advantage:
High Sensitive
Model NO.:
ICP-6800
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Light Number:
Monochromator
Principle:
New Spectrometer
Analysis:
Photoelectric Colorimetry
Certification:
RoHS, ISO9001, CE
Port Of Loading:
Shanghai Port
Detection Method:
Spectrophotometer
Function:
Storage, Cleared
Payment Methods:
Support payments in USD
Wavelengths:
UV Spectrometer
Transport Package:
Wood
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-02-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
43
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
RoHS
Product descriptions from the supplier

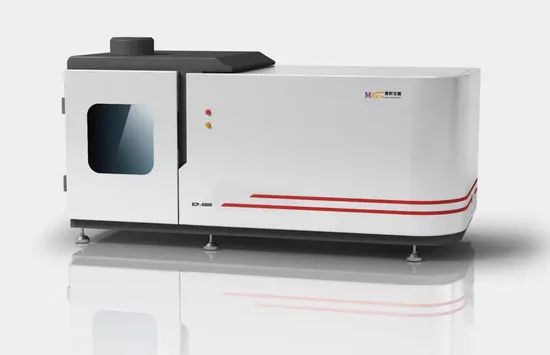

Inductively coupled plasma emission spectrometer(ICP6800) developed by Macylab Instruments with many years of technology accumulation. It is used to measure traces and traces of various substances (dissolvable in hydrochloric acid, nitric acid, hydrofluoric acid, etc.),and the content of metal elements or non-metallic elements. It is stable and reliable and with high degree of automation and easy operation.
At present, instruments are widely applied in various fields such as rare earth, geology, metallurgy, chemical industry, environmental protection, clinical medicine, petroleum products, semiconductor, food, biological samples, criminal science, agricultural research and so on.
Application Environment
CONTENT RANGE
Shipping/Storage Ambient Temperature 15ºC-25ºC
Shipping/Storage Relative Humidity ≤70%
Atmospheric pressure 86-106 kPa
Power Supply 220±10V 50-60MHz
Working Humidity ≤70%
Working Temperature 15ºC-30ºC
RFPower technical parameter:
Circuit type: solid-state RF power supply, with function of automatch
Frequency: 27.12MHz±0.05%
Frequency Stability: <0.1%
Power Output: 800W-1200W
Power Output Stability: <0.3%
Escaped RF radiation: 30cm away from the instrument, electric field: E<2V/m
Sampling System Technical Parameter:
Output working coil inner diameter :25mm
Torque tube: Three concentric, external diameter 20mm
Coaxial nebulizer:Outer diameter 6mm
Double barrel atomizing chamber: Outer diameter 34mm
Gas Flow Controls
1. Plasma Argon Flowmeter:(100-1000)L/h (1.6-16L/min)
2. Auxiliary Argon Flowmeter:(10-100)L/h (0.16-1.66L/min)
3. Carrier Argon Flowmeter(10-100)L/h (0.16-1.66L/min)
4. Pressure Maintaining Valve(0-0.4MPa)
5. Cooling Water:Temperature: 20-25ºC, Rate of Flow>5L/min, Hydraulic Pressure>0.1MPa
Spectrometer
Optics:Czerny-Turner type
Focal length: 1000 mm
Grating: Ion Beam Etching Holographic Grating, 3600L/mm or 2400L/mm
Reciprocal linear dispersion: 0.26nm/mm
Resolution:≤ 0.007nm (3600 line grating);≤0.015nm (2400line grating)
| Element | WL(nm) | Limit | Element | WL(nm) | Limit | |
| La | 408.672 | <3.0 | Cr | 267.716 | <5.0 | |
| Ce | 413.765 | <5.0 | Al | 396.152 | <5.0 | |
| Pr | 414.311 | <5.0 | Zr | 343.823 | <5.0 | |
| Nd | 401.225 | <5.0 | Ag | 328.068 | <3.0 | |
| Sm | 360.946 | <10.0 | Sr | 407.771 | <1.0 | |
| Eu | 381.967 | <1.0 | Au | 242.795 | <5.0 | |
| Gd | 342.247 | <10.0 | Pt | 265.945 | <5.0 | |
| Tb | 350.917 | <3.0 | Pd | 340.458 | <5.0 | |
| Dy | 353.170 | <3.0 | Ir | 224.268 | <10.0 | |
| Ho | 345.600 | <3.0 | Rh | 343.489 | <10.0 | |
| Er | 337.271 | <3.0 | Ru | 240.272 | <5.0 | |
| Tm | 313.126 | <3.0 | Ba | 455.403 | <1.0 | |
| Yb | 369.419 | <1.0 | As | 228.812 | ≤15 | |
| Lu | 261.541 | <3.0 | Sb | 206.833 | ≤15 | |
| Y | 371.030 | <1.0 | Bi | 223.061 | ≤10 | |
| Sc | 335.373 | <1.0 | Hg | 253.652 | ≤15 | |
| Ta | 226.230 | <5.0 | Pb | 220.353 | ≤15 | |
| Nb | 313.340 | <5.0 | Ga | 294.364 | ≤10 | |
| Mn | 257.610 | <3.0 | Se | 203.985 | ≤10 | |
| Mg | 279.553 | <1.0 | Sn | 242.949 | ≤20 | |
| B | 249.773 | <10.0 | Te | 214.281 | ≤10 | |
| Zn | 213.856 | <3.0 | Ta | 226.230 | ≤5.0 | |
| Co | 228.616 | <3.0 | Th | 283.730 | ≤10 | |
| Si | 251.611 | <10.0 | Tl | 276.787 | ≤30 | |
| Ni | 232.003 | <5.0 | Re | 227.525 | ≤5 | |
| Cd | 226.502 | <3.0 | Ge | 209.426 | ≤15 | |
| Fe | 239.562 | <3.0 | Os | 225.585 | ≤1 | |
| Ca | 393.366 | <1.0 | W | 207.911 | ≤10 | |
| Mo | 281.615 | <5.0 | Cu | 324.754 | <3.0 | |
| V | 310.230 | <5.0 | Li | 670.784 | ≤3 | |
| Be | 313.041 | <1.0 | Na | 588.995 | ≤20 | |
| Ti | 334.941 | <3.0 | K | 766.490 | ≤60 |
Wavelength range: 3600 line grating:(190nm~500) nm;2400 line grating: (190nm~800) nm
Minimum pace of stepping motor: ≤0.0006 nm
Exit Slit:12μm;Entrance Slit:10μm
Photoelectric Converter Performance
Photomultiplier tube specification: R293/R928
Negative HV on PMT: 0-1000V;Stability: <0.05%
Overall Performance
Wavelength range of scanning: 195nm~500nm(3600L/mm line grating);195nm~800nm(2400L/mm line grating)
Repeatability: RSD(Relative Standard Deviation)≤1.5%
Stability: RSD(Relative Standard Deviation) ≤2%
Detection Limits (µg/L):
Macy(China) Instruments Inc is part of Shanghai Macylab Instrument Inc, is a high-tech enterprise with independent intellectual property rights . Macy hold the pioneering concept "technology - because you change " , and as a business purpose, and constantly explore, bold innovation. Especially in the field of analytical instruments ,Macy constantly develop advanced products that enable Macy to become a high-quality instrument resource supplier and leader.
Established in Shanghai in 2012, Macylab Instruments Inc. has three R&D(research and development)and production bases in Shanghai, Beijing and Jiangsu, and three wholly-owned subsidiaries,The company's main products are ultraviolet visible spectrophotometer, atomic absorption spectrometer, atomic fluorescence photometer, ICP-AES/ICP-MS, inductively coupled plasma emission spectrometer, ultra micro spectrophotometer
Q1: Why choose Macy Lab?
A1: Professional manufacturer with more than 10 years experience
Mainly exported to the European and American markets, and we are also involved in other markets.
Q2: Are you a factory or a trading company?
A2: We are professional manufacturer of UV/Vis Spectrophotometers, Atomic Absorption Spectrophotometer, Micro-volume UV/VIS spectrophotometers , ICP item and Nucleic Acid Automatic Extraction System. And we have three R&D and production bases in Shanghai, Beijing and Jiangsu, and three wholly-owned subsidiaries.
Q3: OEM , ODM acceptable or not?
A3: Absolutely, yes.
Q4: What can i get the price?
A4: Usually we quote within 12 hours after we get your enquiry
Q5:What are your Delivery terms?
A5: We accept FOB,EXW,CFR . You can choose the one which is most convenient or cost-effective for you.
Q6: What about the after-sale service?
A6: Our spectrophotometer consumables are fully equipped, good after-sales service system and one-year warranty commitment, which can solve customer's worries.
We can ensure our customers to purchase the components and parts within 5 years. And the product updates and replacement will not be affected.
Q7: What about the M.O.Q?
A7: Usually we don' t have M.O.Q, we can offer even only 1 unit, while , you are welcome to order in bulk, and we are quite pleasure to offer a big discount.
Q8: Sample order is OK?
A8: Sample order is no problem.
Q9: What' s kind of shipment for customer choosing?
A9: Usually ship by sea, by air.
We can also provide reasonable solutions according to your transportation requirements.
Q10: Are your operation keypad, interface, software and manual in English version?
A10: Yes, its operation keypad, interface, software and manual in switching interface between Chinese and English.
Q11: What areas and applications can it be used?
Q11: It can be used for qualitative or quantitative meansurements for water solution in the following areas: metallurgy, pharmacy, food, health, institutes, biological chemistry, life science, petrochemical industry, mining, quality control, environmental protection, etc.
Q12: Which payment can be acceptable ?
A12: We could accept the payment by T/T, Paypal, Western Union,L/C, etc.
Q13: What is the delivery time?
A13: Normally 15-30 days,specific delivery date would depend on the production season and order quantity.
Q14: Can I get a sample?
A14: Yes,please contact our staff for more information.
Q15: How about OEM and ODM?
A15: More than 10 years experience in OEM and ODM.
Q16: What kinds of models do you make ?
A16: We specializing in various optical analyzer. Including Atomic Absorption Spectrophotometer,Ultraviolet and Visible Spectrophotometer,Atomic fluorescence photometer,ICP-AES/ICP-MS
Q17: What standard accessories are included?
A17: Main unit, 4 pcs of 1cm glass cuvette(all models) and 2 pcs of 1cm quartz cuvette(UV models), With user manual and power cable.
Q18: Is PC software included?
A18:The PC software(CFR 21 or regular one) is optional. Also the thermal printer is available on requested.
Q19: Why the reading is red and reach its maximum value 3.00Abs?
A19: Probably you use the glass cuvette in UV range.
Q20: Why the wavelength calibration or self checking fail?
A20: The deuterium lamp is turned off or there is something wrong with the D2 lamp, like the fuse, triode or the lamp itself.
Q21: Why is the reading is not as accurate as before?
A21: Do the wavelength calibration before testing or restore the device to its default factory settings.
Q22: Why PC software can not be installed successfully?
A22: Close your anti-virus software on the computer and do it again.
Q23: Why the software can not be connected successfully?
A23: Please return to its initial interface and don't enter any menu when connecting to PC software. And the device can not be operated once connected to software. Secondly, unload the previous/old version PC software if there is.
Q24: Can the data transferred to USB or PC?
A24: Yes, you can transfer the saved data on the device to a USB then copy it to PC, or you can save the data directly on the PC via software.
Q25: Why the Abs value is negative(lower than zero).
A25: Do the blanking or change the reference sample.
