Indoor HD Advertising Media P4 SMD Indoor LED TV Display
1 Square Meter
$700Product information
High-quality Indoor HD Advertising Media P4 SMD Indoor LED TV Display supplied by Shenzhen Jingcan Opto-Tec Co., Ltd.. Bulk wholesale pricing is $700 per Square Meter with a minimum order of 1 Square Meter. Inquiry for latest prices.
Warranty:
1-2 Years
Scanning Mode:
1/16 Scan
Lifetime:
100, 000hours
Production Capacity:
10000 PCS/Month
Refresh:
1920Hz-3840Hz
Pixel Configuration:
1R,1G,1B
Specification:
256X128MM
Pixel Pitch:
4mm
Specifications
Warranty:
1-2 Years
Scanning Mode:
1/16 Scan
Lifetime:
100, 000hours
Production Capacity:
10000 PCS/Month
Refresh:
1920Hz-3840Hz
Pixel Configuration:
1R,1G,1B
Specification:
256X128MM
Pixel Pitch:
4mm
Pixel Density:
62500dots/Sq.M
Mtbf:
6500hours
HS Code:
8528591090
Certification:
CE, RoHS
Origin:
China
Trade Term:
FOB, CIF, CFR
IP Rating:
IP43
Trademark:
KENSUN
Model NO.:
KS-SMD-P4-CTM
LED Lamp:
Kinglight/Natiionstar/HS
Payment Term:
LC, T/T, PayPal
Display Type:
LED Video Display
Transport Package:
Plywood Case/Flight Case
Power Supply:
Rong Electrics/MW/G-Energy
Port Of Loading:
Shenzhen Port
Application:
Stage Performance, Advertising, Shopping Guide
System Operating Platform:
Win10/Win7
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-03-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
11
Preferred Payment Term:
LC, T/T, PayPal
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
P4 indoor led display
Production description:
| P4 Indoor Led Module | |
| Pixel pitch | 4mm |
| LED configuration | SMD2121 black |
| Module size | 256mmWx128mmHx12mmD |
| Pixel density(sq.m) | 62500dots |
|
Pixel resolution |
64x32 |
| Port type | HUB75 |
| Brightness | ≥1000nits |
| Pixel configuration | 1R1G1B |
| Drive type | constant drive |
| Scan Mode | 1/16 scan |
| P4 Indoor Led Display | |
| Cabinet size | no cabinet,modules installation |
| Quantity of module | 0 |
| Power supply | 5V 40A 200W |
| Module type | Magnet led module |
|
Weight |
26kgs/sq.m |
| Best viewing distance | >4m |
| Best viewing angle | 160 degrees(H)x140 degrees(V) |
| Pixel configuration | storage:-35ºC-+85ºC [-31ºF-+185ºF] |
| Working Temperature | -20ºC-+60ºC [-4ºF-+140ºF] |
| Operation humidity | 20%-90% |
| Protection classification | IP45 |
|
Control System Parameter: |
|
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc |

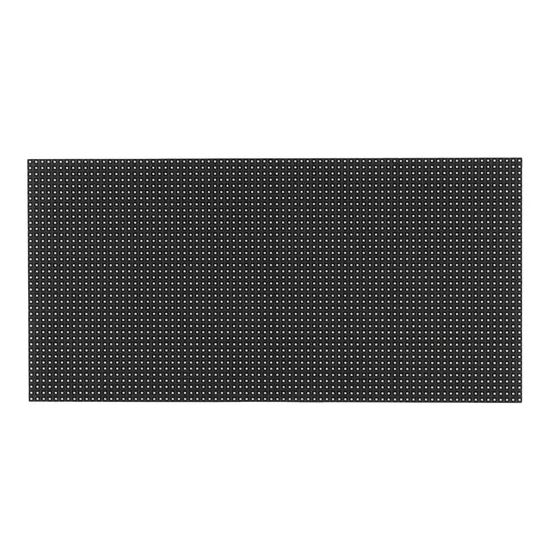

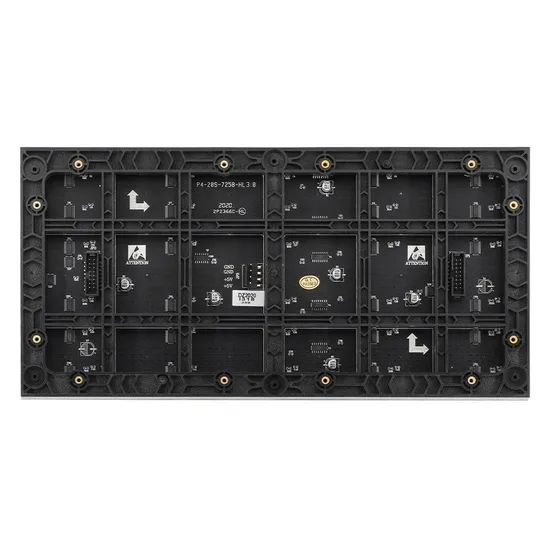

P4 Indoor Led Module
P4 indoor iron simple cabinet

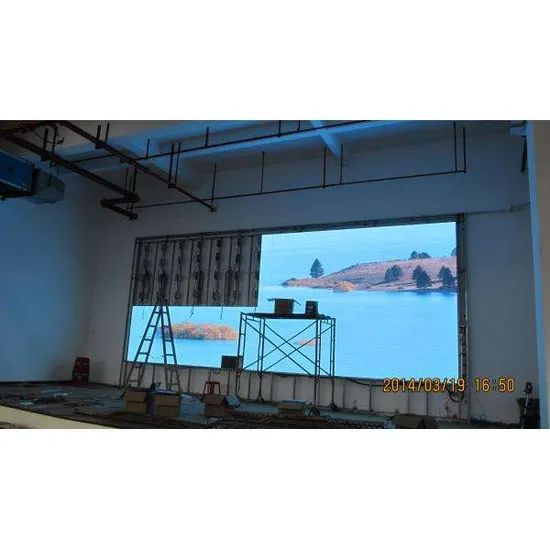

P4 indoor led display project
we would like to know more details before sending the quotation:
1. What is screen size ..
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. How to control the led screen,with computer or by wifi,3G or 4G
5. Any special requests such as display contents,brand of LED,power supply,driving IC,packages etc
Also can choose other items for your projects according to detail requirements:
1. What is screen size ..
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. How to control the led screen,with computer or by wifi,3G or 4G
5. Any special requests such as display contents,brand of LED,power supply,driving IC,packages etc
Also can choose other items for your projects according to detail requirements:
| OutdoorAdvertising LED Screen | |||||
| Model No. | P2.5 | P5 | P6 | P3 | P3.91 |
| Pixel Pitch | 2.5mm | 5mm | 6mm | 3mm | 3.91mm |
| Pixel Density (dots/sq.m) |
160000 | 40000 | 27777 | 111111 | 65536 |
| LED component | SMD2121 | SMD3528 | SMD3528 | SMD2121 | SMD2121 |
| Module Size | 160x160mm | 320 x160mm | 192X192mm | 192x192mm | 250x250mm |
| Module Resolution (dots/sq.m) |
64x 64 | 64x32 | 32X32 | 64x64 | 64x64 |
| Panel Size | 480x480 mm | 640 x 640mm | 576xx 576mm | 576xx 576 mm | 500 x 500 mm |
| Panel Weight | 7 kgs | 12kgs | 9.2 kgs | 9.2kgs | 7.5kgs |
| Brightness | ≥1000nits | ≥1000nits | ≥1000nits | ≥1000nits | ≥1000nits |
| Best viewing distance | ≥2.5m | ≥5m | ≥6m | ≥3m | ≥3.91m |
| Maximum power consumption | ≤1000W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤1000W/sq.m | ≤1000W/sq.m |
| Driving method | 1/32 | 1/16 | 1/16 | 1/32 | 1/16 |
| Control method | Synchronous control system ( connect with computer or video processor) | ||||
| Uniformity | 97% | ||||
| Working voltage | AC220V/110V±10% | ||||
| Working temperature | -20ºC~+50ºC±10% | ||||
| Working humidity | 10% ~90% | ||||
| MTBF | 10,000 hours | ||||
| Frame Frequence | 50/60Hz | ||||
| Refresh Frequence | >2000Hz | ||||
| IP grade | IP45 | ||||
Our service:
We're aware that you have choices about where to buy your technology and we believe we're the best choice.
Our stuff is better because we stand behind it and we're better.
We know technology can be daunting, so we offer a variety of services to help your self-service or digital project succeed in the field.
OEM services: Shenzhen Jingcan Opto-Tec Co.,Ltd can make your own design and requirements. We are strong designing power and rich experience in OEM&ODM industry, we are able customize your own product without any difficulty .We offer full suggestions on parts installed.
Replacement & Repair: Choose from a variety of response and coverage times for ongoing break-fix maintenance. We can also inventory spare parts for your units and attend to those mission-critical items that mean the difference between success and failure of your application in the field.
Packaging&Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
Company information:
JINGCAN OPTO-TEC CO.,LTD was established in 2013, we are a professional LED media/video display exporter and manufacturer. Our company is located in Shenzhen,the focus of high end LED display technology professionals in China. Top management with LED display experience over 80% . So far, our LED display is widely used in advertising media,sports venues and road traffic, stock exchange,financial information shows the information publicity and dislay of port terminals and airport terminals, and business propaganda in shopping and shopping centers.Exported to Germany,UK,USA, South Korea,North Korea,Thailand,Italy,Russia,Malaysia and other countries and regions. At any time, we are the best one of your reliable choice.
Company Culture
Corporate vision: led screen culture enter quality life
Corporate mission: culture is the soul, innovation is the foundation
Corporate values: being honest and unselfish
Do things to pursue excellence/ Innovation-driven development / Quality as life / Customers are always first
Certifications:
FQA:
1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 1-3years after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in export led display for almost 8 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC, ****** onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $82,000, and it is still going up.
5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
