Inductively Coupled Plasma Mass Spectrometry Spectrometer Spectrograph Analyze
1 Set
$37,387Product information
High-quality Inductively Coupled Plasma Mass Spectrometry Spectrometer Spectrograph Analyze supplied by Macylab Instruments Inc.. Bulk wholesale pricing is $37,387 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty:
1 Year
Package Size:
180.00cm * 80.00cm * 85.00cm
Package Gross Weight:
350.000kg
Specification:
360*
Production Capacity:
50PCS/Month
HS Code:
9027300090
Transport Package:
Carton
Origin:
China
Specifications
Warranty:
1 Year
Package Size:
180.00cm * 80.00cm * 85.00cm
Package Gross Weight:
350.000kg
Specification:
360*
Production Capacity:
50PCS/Month
HS Code:
9027300090
Transport Package:
Carton
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Principle:
Classic Spectrometer
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, CIF, CFR
Dispersive Element:
Grating Spectrometer
Advantage:
High Resolution
Model NO.:
ICP-6800
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
Macylab
Light Number:
Monochromator
After Sales Service:
Online Technical Support
Certification:
RoHS, ISO9001, CE
Port Of Loading:
Shanghai Port
Detection Method:
Spectrophotometer
Payment Methods:
Support payments in USD
Wavelengths:
Visible Spectrometer
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-02-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
43
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
RoHS
Product descriptions from the supplier
| Shipping/Storage Ambient Temperatur: | 15ºC-25ºC | Atmospheric Pressure: | ≤70% |
|---|---|---|---|
| Power Supply: | 220±10V 50-60MHz | Working Humidity: | ≤70% |
| Working Temperature: | Away From The Instrument, Electric Field: E<2V/m | Name: | ICP-6800 Inductively Coupled Plasma Optical Emission Spectrophotometer |
| High Light: |
inductively coupled plasma optical emission spectrophotometer,ICP -6800 inductively coupled plasma optical emission spectrophotometer |
||

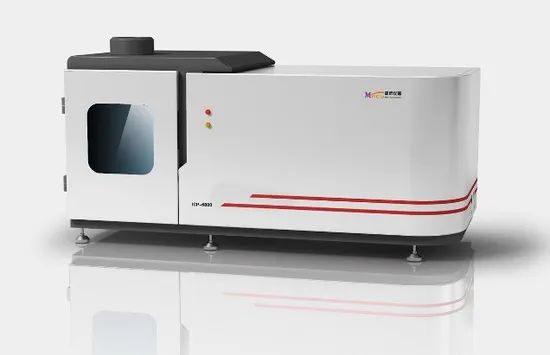

ICP-6800 Inductively Coupled Plasma Optical Emission Spectrometer(standard)
| ICP-6800 Inductively Coupled Plasma Optical Emission Spectrometer(standard) |
Inductively coupled plasma emission spectrometer(ICP6800) developed by Macylab Instruments with many years of technology accumulation. It is used to measure traces and traces of various substances (dissolvable in hydrochloric acid, nitric acid, hydrofluoric acid, etc.),and the content of metal elements or non-metallic elements. It is stable and reliable and with high degree of automation and easy operation.
At present, instruments are widely applied in various fields such as rare earth, geology, metallurgy, chemical industry, environmental protection, clinical medicine, petroleum products, semiconductor, food, biological samples, criminal science, agricultural research and so on.
Performance stability
The use of all-solid-state rf power supply, with small size, high efficiency, stable output power, with a variety of protection functions and many other advantages, the load using fully automatic matching technology, matching speed, improve the efficiency of the use of power supply and the stability of the instrument, and make the whole ignition process simple and convenient.
Injection automation

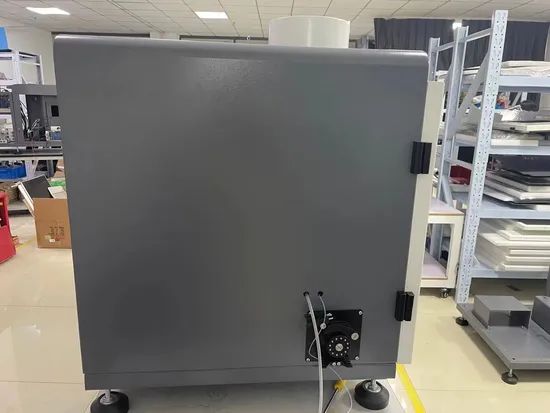

The instrument is equipped with a four-channel twelve-roller high-precision peristaltic pump, which can guarantee the precision of injection and prevent liquid accumulation at the same time. The speed of the peristaltic pump can be adjusted continuously to meet various test requirements of customers.
Flow control parameters
Adopt imported high precision mass flow controller.
High precision constant temperature system
The whole optical path of adopt the precision constant temperature protection system. The temperature control can be set in real time according to the actual ambient temperature of the customer's laboratory, without the need to turn on the air conditioner continuously for a long time. Temperature control precision ≤±0.1%, precision constant temperature protection system to ensure the stability of the optical path and makes the test data more stable.
RFPower technical parameter
| Circuit type |
solid-state RF Power supply, with function of automatch |
| Frequercy |
27.12MHz±0.05% |
| Frequency Stablity |
<0.1% |
| Power Output |
800W-1200W |
| Power Output Stability |
<0.3% |
| Escaped RF radiation |
30cm away from the instrument, electric fiekd: E<2V/m |
Sampling System Technical Parameter
| Output working coil imer diameter |
25mm |
| Torpue tube |
Three concentric, extemal diameter 20mm |
| Coaxial nebulizer |
Outer dameter 6mm |
| Double barrel atomizing chamber |
Outer diameter 34mm |
Gas Flow Controls
| Plasma Argon Flowmeter |
(100-1000)L/h(1.6-16L/min) |
| Auxiliary Argon Fiowmeter |
(10-100)L/h(0.16-1.66L/min) |
| Auxiliary Carrier Argon Flowmeter |
(10-100)L/h(0.16-1.66L/min) |
| Pressune Maintaining Value |
(0-0.4MPa) |
| Cooling Water:Temperature |
20-25ºC,Rate of Flow>5L/min,Hydraulic Pressure>0.1MPa |
Spectrometer
| Optics |
Czerny-Turner type |
| Focal length |
1000 mm |
| Grating |
Ion Beam Etching Holographic Grating, 3600L/mm or 2400L/mm |
| Reciprocal linear dispersion |
0.26nm/mm |
| Resolution |
≤0.007nm(3600 line grating); ≤0.015nm(2400 line grating) |
| Wavelength range |
3600 line grating:(190nm~500) nm; 2400 line grating:(190nm~800) nm |
| Minimum pace of stepping motor |
≤0.0006 nm |
| Exit Slit |
12μm |
| Entrance Slit |
10μm |
Photoelectric Converter Performance
| Photomultiplier tube specification |
R293/R928 |
| Negative HV on PMT |
0-1000V |
| Stability |
<0.05% |
Overall Performance
Wavelength range of scanning: 195nm~500nm(3600L/mm line grating);195nm~800nm(2400L/mm line grating)
Repeatability: RSD(Relative Standard Deviation)≤1.5%
Stability: RSD(Relative Standard Deviation) ≤2%
Detection Limits (µg/L):
| Element | WL(nm) | Limit | Element | WL(nm) | Limit | |
| La | 408.672 | <3.0 | Cr | 267.716 | <5.0 | |
| Ce | 413.765 | <5.0 | Al | 396.152 | <5.0 | |
| Pr | 414.311 | <5.0 | Zr | 343.823 | <5.0 | |
| Nd | 401.225 | <5.0 | Ag | 328.068 | <3.0 | |
| Sm | 360.946 | <10.0 | Sr | 407.771 | <1.0 | |
| Eu | 381.967 | <1.0 | Au | 242.795 | <5.0 | |
| Gd | 342.247 | <10.0 | Pt | 265.945 | <5.0 | |
| Tb | 350.917 | <3.0 | Pd | 340.458 | <5.0 | |
| Dy | 353.170 | <3.0 | Ir | 224.268 | <10.0 | |
| Ho | 345.600 | <3.0 | Rh | 343.489 | <10.0 | |
| Er | 337.271 | <3.0 | Ru | 240.272 | <5.0 | |
| Tm | 313.126 | <3.0 | Ba | 455.403 | <1.0 | |
| Yb | 369.419 | <1.0 | As | 228.812 | ≤15 | |
| Lu | 261.541 | <3.0 | Sb | 206.833 | ≤15 | |
| Y | 371.030 | <1.0 | Bi | 223.061 | ≤10 | |
| Sc | 335.373 | <1.0 | Hg | 253.652 | ≤15 | |
| Ta | 226.230 | <5.0 | Pb | 220.353 | ≤15 | |
| Nb | 313.340 | <5.0 | Ga | 294.364 | ≤10 | |
| Mn | 257.610 | <3.0 | Se | 203.985 | ≤10 | |
| Mg | 279.553 | <1.0 | Sn | 242.949 | ≤20 | |
| B | 249.773 | <10.0 | Te | 214.281 | ≤10 | |
| Zn | 213.856 | <3.0 | Ta | 226.230 | ≤5.0 | |
| Co | 228.616 | <3.0 | Th | 283.730 | ≤10 | |
| Si | 251.611 | <10.0 | Tl | 276.787 | ≤30 | |
| Ni | 232.003 | <5.0 | Re | 227.525 | ≤5 | |
| Cd | 226.502 | <3.0 | Ge | 209.426 | ≤15 | |
| Fe | 239.562 | <3.0 | Os | 225.585 | ≤1 | |
| Ca | 393.366 | <1.0 | W | 207.911 | ≤10 | |
| Mo | 281.615 | <5.0 | Cu | 324.754 | <3.0 | |
| V | 310.230 | <5.0 | Li | 670.784 | ≤3 | |
| Be | 313.041 | <1.0 | Na | 588.995 | ≤20 | |
| Ti | 334.941 | <3.0 | K | 766.490 | ≤60 |
plication F
| Application Fields |
Inductively coupled plasma emission spectrometer(ICP6800) developed by Macylab Instruments with many years of technology accumulation. It is used to measure traces and traces of various substances (dissolvable in hydrochloric acid, nitric acid, hydrofluoric acid, etc.),and the content of metal elements or non-metallic elements. It is stable and reliable and with high degree of automation and easy operation.
At present, instruments are widely applied in various fields such as rare earth, geology, metallurgy, chemical industry, environmental protection, clinical medicine, petroleum products, semiconductor, food, biological samples, criminal science, agricultural research and so on.
