Industrial Device Ralay Raplace 21 Protection Modes Industrial Torque Motor Controller
Piece
Negotiable
Product information
High-quality Industrial Device Ralay Raplace 21 Protection Modes Industrial Torque Motor Controller supplied by Jiangsu Sfere Electric Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Storage Temperature:
-30℃~80℃
Package Gross Weight:
0.500kg
Transport Package:
1 PC/CTN, Standard Export Packing or as for Accura
Package Size:
17.00cm * 17.00cm * 16.00cm
Production Capacity:
30000PCS/Per Month
Frequency:
45-65Hz
Specification:
96*96*96mm
Rated Voltage:
AC 100V/380V
Specifications
Storage Temperature:
-30℃~80℃
Package Gross Weight:
0.500kg
Transport Package:
1 PC/CTN, Standard Export Packing or as for Accura
Package Size:
17.00cm * 17.00cm * 16.00cm
Production Capacity:
30000PCS/Per Month
Frequency:
45-65Hz
Specification:
96*96*96mm
Rated Voltage:
AC 100V/380V
Rated Current:
AC 1A/ 5A
Material:
Aluminum Alloy
Certification:
CCC, CE, UL
Certificate:
CE, ISO9001
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Product Name:
Data Acquisition Gateway Lora Industrial
Trademark:
ELECNOVA
Trade Term:
FOB, CIF, CFR, EXW
Standard:
IEC-62053
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Display:
LCD
Type:
Multi-Function Energy Meter
Condition:
New
Communication:
RS-485, Modbus-RTU
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Model NO.:
WDH-31-580
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1998-01-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
598
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

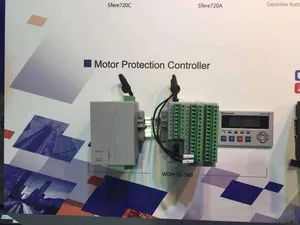

Product Name: Hot sale industrial device WDH-31-580 ralay raplace 21 protection modes industrial torque Motor Controller
The WDH-31-580 serves as a safeguard for low-voltage AC motors, designed for use in motor systems operating at frequencies up to 50Hz and voltages up to 800A. It integrates monitoring, control, protective measures, and communication capabilities to deliver robust motor protection.
Product Components
--Basic module
--Display module
--Residual CT(optional)
--External CT(optional):SHI-ZT40
5P10:500A/5A,800A/5A.corresponding conteoller rated current of 5A
|
Product Name
|
Hot sale industrial device WDH-31-580 ralay raplace 21 protection modes industrial torque Motor Controller | |
|
System
|
Rated voltage of motor
|
AC 380V or AC 660V,50Hz
|
|
Rated current of motor
|
0.1A~800A
|
|
|
Insulation resistor
|
≥100MΩ
|
|
|
|
Working range
|
AC 100~415V
|
|
Power consumption
|
≤3VA
|
|
|
|
Operating temperature
|
-20ºC~+60ºC
|
|
Relative humidity
|
≤93%RH
|
|
|
Storage temperature
|
-25ºC~70ºC
|
|
|
IP degree
|
Front:IP64,Rear:IP20
|
|
|
Protection Accuracy
|
Current/voltage
|
±1% of setting value
|
|
Thermal capacity
|
±1% of setting value
|
|
|
Delayed acting time
|
When delayed acting value <2s:±100ms
When delayed acting value ≥ 2s:±5%
|
|
|
Control Relay
|
Contact capacity
|
AC 250V/5A
|
|
Signal Relay
|
Contact capacity
|
AC 250V/5A
|
|
Analog Output
|
Mode
|
DC 4~20mA,RL≤350Ω
|
|
Insulation
|
|
≥2kVAC
|
|
|
THREE-PHASE CT
|
EXTERNAL CT
|
RESIDUAL CURRENT CT
|
||
|
Model
|
SHI01-I/SHI30-I/SHI200-I
|
SHI3000-I
|
SHI-ZT40
|
SHI-ZT30
|
SHI-ZT100
|
|
Diameter(mm)
|
20
|
30
|
42X30
|
31
|
100
|
|
Dimension(mm)
|
93X45X96
|
185X36X72
|
75X44X102
|
75X44X98
|
185X44X190
|
*Low Voltage three phase AC motor
*MCC cabinet or motor independent control cabinet
*Reversing and Reduced Voltage
*Advanced automation or control(such as conveyor system or well recovery pumps)
*Fire pumps and fans
*MCC cabinet or motor independent control cabinet
*Reversing and Reduced Voltage
*Advanced automation or control(such as conveyor system or well recovery pumps)
*Fire pumps and fans
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
For orders under $3000, full payment is required prior to dispatch; for amounts exceeding $3000, 30% is due upfront, 70% before shipping, or an agreed-upon arrangement between both parties.
