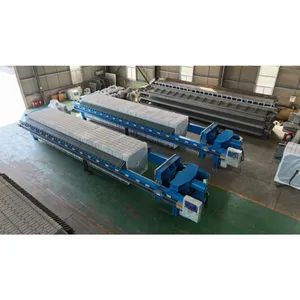

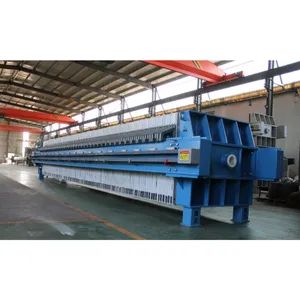

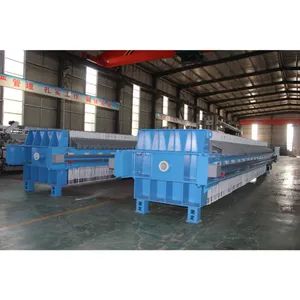

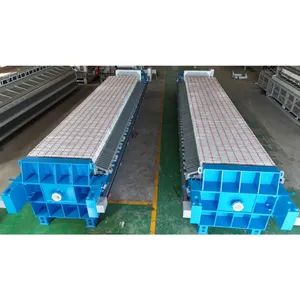

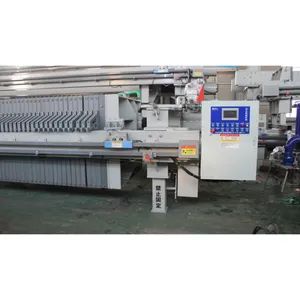

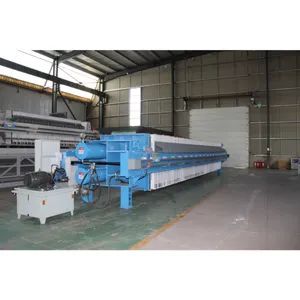

Industrial-Grade Filter Press for Fast and Reliable Filtration
Set
Negotiable
Product information
High-quality Industrial-Grade Filter Press for Fast and Reliable Filtration supplied by Hebei Shuangcheng Environmental Protection Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Size:
1400.00cm * 220.00cm * 200.00cm
Production Capacity:
170 Pieces/Year
Package Gross Weight:
27000.000kg
HS Code:
8421291090
Type:
Chamber Filter Press
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Specifications
Package Size:
1400.00cm * 220.00cm * 200.00cm
Production Capacity:
170 Pieces/Year
Package Gross Weight:
27000.000kg
HS Code:
8421291090
Type:
Chamber Filter Press
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Hebei China
Pressure:
Hydraulic Pressure
Trademark:
JINGWANG (or as customized)
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Purpose Four:
Marble Cutting Wastewater Treatment
Purpose Three:
Metallurgical Industry
Purpose One:
Mining Industry
Model NO.:
Quick Opening Filter Press
Purpose Two:
Sand and Gravel Factory
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
45
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
Certificates
Product descriptions from the supplier
The filter press is a powerful and efficient equipment in the field of industrial solid-liquid separation, and its remote control operation characteristics have brought great convenience to modern industrial.
The high-efficiency energy-saving quick-opening pressure filter is based on the automatic plate-pulling pressure filter, with the addition of a mechanical hand, extended oil cylinder, and an increased interval, which can pull out multiple filter plates for unloading at one time. It is suitable for materials that are easy to dewater and high-frequency work, with the most significant features being its compact structure, stable performance, high efficiency, and low operating cost. The efficiency of the plate-pulling process is by 3-6 times, and it has significant advantages for equipment with a large number of filter plates and high work frequency.
The box-type structure of this filter press is composed of multiple filter plates, forming filter chambers between the plates, with a total area of up 500 square meters, providing ample space for large-scale solid-liquid separation. The clear flow design allows for a clear path of the filtrate, making it for operators to directly observe the status of the filtrate, such as flow rate and clarity, to judge the progress and effect of filtration. The automatic platen pulling device is to enhancing work efficiency. At the end of a filtration cycle, this device can automatically pull the filter plates in sequence, smoothly discharging the filter cake formed in the filter chamber, a significant amount of labor and time costs, and allowing the equipment to quickly enter the next round of work. It is widely used in chemical industry, light industry, petroleum, pharmaceutical food, resource development, metallurgical coal, environmental protection, and wastewater treatment: chemical wastewater, metallurgical wastewater, electroplating wastewater, leather wastewater, and dyeing wastewater, pharmaceutical wastewater, aquaculture wastewater, slaughterhouse wastewater, sand washing wastewater, building pile driving wastewater, stone cutting wastewater etc., and is deeply welcomed by users.
Our company produces various models of box filter press, hydraulic filter press, diaphragm filter press, fully automatic filter press and filter press accessories, with reliable quality and complete specifications.
Product Accessories
Product Application
Product Application
The high-efficiency energy-saving quick-opening pressure filter is based on the automatic plate-pulling pressure filter, with the addition of a mechanical hand, extended oil cylinder, and an increased interval, which can pull out multiple filter plates for unloading at one time. It is suitable for materials that are easy to dewater and high-frequency work, with the most significant features being its compact structure, stable performance, high efficiency, and low operating cost. The efficiency of the plate-pulling process is by 3-6 times, and it has significant advantages for equipment with a large number of filter plates and high work frequency.
The box-type structure of this filter press is composed of multiple filter plates, forming filter chambers between the plates, with a total area of up 500 square meters, providing ample space for large-scale solid-liquid separation. The clear flow design allows for a clear path of the filtrate, making it for operators to directly observe the status of the filtrate, such as flow rate and clarity, to judge the progress and effect of filtration. The automatic platen pulling device is to enhancing work efficiency. At the end of a filtration cycle, this device can automatically pull the filter plates in sequence, smoothly discharging the filter cake formed in the filter chamber, a significant amount of labor and time costs, and allowing the equipment to quickly enter the next round of work. It is widely used in chemical industry, light industry, petroleum, pharmaceutical food, resource development, metallurgical coal, environmental protection, and wastewater treatment: chemical wastewater, metallurgical wastewater, electroplating wastewater, leather wastewater, and dyeing wastewater, pharmaceutical wastewater, aquaculture wastewater, slaughterhouse wastewater, sand washing wastewater, building pile driving wastewater, stone cutting wastewater etc., and is deeply welcomed by users.
Our company produces various models of box filter press, hydraulic filter press, diaphragm filter press, fully automatic filter press and filter press accessories, with reliable quality and complete specifications.
- Specifications include: 630 type, 800 type, 1000 type, 1250 type 1500 type, 1600 type, 2000 type.
- The maximum filtration area is up to 1000sqm.
- Filter plate materials are divided into cast iron, reinforced polypropylene, glass fiber polypropylene, etc.
- There are various forms fluid flow: open flow, closed flow, washable, non-washable, central feed, corner feed, etc.
| Technical Date:Work Journey 750,Maximum Journey 1000. | |||||||||
| U-Plastic plate & frame(Thickness70,Filter Cloth Thickness 1mm/plate) | |||||||||
| Filtration area | Number of Plate | Cake thickness(mm) | Chamber volume | Unit weight(kg) | Anchor center(mm) | Length | Width | Heigth | |
| 220 | 57 | 35 | 3.92 | 16883 | 6110 | 7615 | 2470 | 1830 | |
| 250 | 65 | 4.47 | 17996 | 6680 | 8185 | 2470 | 1830 | ||
| 300 | 77 | 5.27 | 19637 | 7550 | 9055 | 2470 | 1830 | ||
| 350 | 91 | 6.21 | 21516 | 8550 | 10055 | 2470 | 1830 | ||
| 400 | 103 | 7.04 | 23786 | 9420 | 10925 | 2470 | 1830 | ||
| 450 | 117 | 7.98 | 25102 | 10430 | 11935 | 2470 | 1830 | ||
| 500 | 129 | 8.80 | 26745 | 11290 | 12795 | 2470 | 1830 | ||
| U-Plastic plate & frame(Thickness75,Filter Cloth Thickness 1mm/plate) | |||||||||
| 220 | 57 | 40 | 4.48 | 17148 | 6400 | 7905 | 2470 | 1830 | |
| 250 | 65 | 5.11 | 18321 | 7020 | 8525 | 2470 | 1830 | ||
| 300 | 77 | 6.03 | 20022 | 7940 | 9445 | 2470 | 1830 | ||
| 350 | 91 | 7.11 | 22010 | 9020 | 10525 | 2470 | 1830 | ||
| 400 | 103 | 8.04 | 23701 | 9940 | 11445 | 2470 | 1830 | ||
| 450 | 117 | 9.12 | 25687 | 11020 | 12525 | 2470 | 1830 | ||
| 500 | 129 | 10.05 | 27390 | 11945 | 13450 | 2470 | 1830 | ||
| U-Plastic plate & frame(Thickness80,Filter Cloth Thickness 1mm/plate) | |||||||||
| 220 | 57 | 40 | 4.48 | 17339 | 6700 | 8205 | 2470 | 1830 | |
| 250 | 65 | 5.11 | 18616 | 7350 | 8855 | 2470 | 1830 | ||
| 300 | 77 | 6.03 | 20539 | 8340 | 9845 | 2470 | 1830 | ||
| 350 | 91 | 7.11 | 22775 | 9480 | 10985 | 2470 | 1830 | ||
| 400 | 103 | 8.04 | 26148 | 10470 | 11975 | 2470 | 1830 | ||
| 450 | 117 | 9.12 | 28388 | 11620 | 13125 | 2470 | 1830 | ||
| 500 | 129 | 10.05 | 30306 | 12600 | 14105 | 2470 | 1830 | ||
