Industrial Pressure Sensor Transmitter with Integrated Thermocouple Technology
1 Piece
$0.1Product information
High-quality Industrial Pressure Sensor Transmitter with Integrated Thermocouple Technology supplied by Cheemi Technology Co., Ltd.. Bulk wholesale pricing is $0.1 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Pressure Range:
0..10MPa to 0..150MPa
Production Capacity:
10000PCS/Month
Certification:
CE RoHS ISO
Model NO.:
CMPT124B-111T
Trademark:
Cheemi
Origin:
China
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Pressure Range:
0..10MPa to 0..150MPa
Production Capacity:
10000PCS/Month
Certification:
CE RoHS ISO
Model NO.:
CMPT124B-111T
Trademark:
Cheemi
Origin:
China
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Measuring Medium:
Liquid;Gas
Port Of Loading:
Shanghai Port
Accuracy Grade:
±1.0%Fs
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-02-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, Others, ISO9001:2015
Product descriptions from the supplier

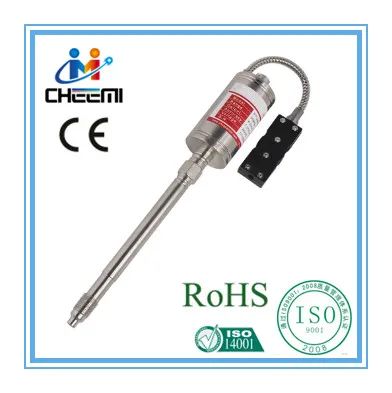

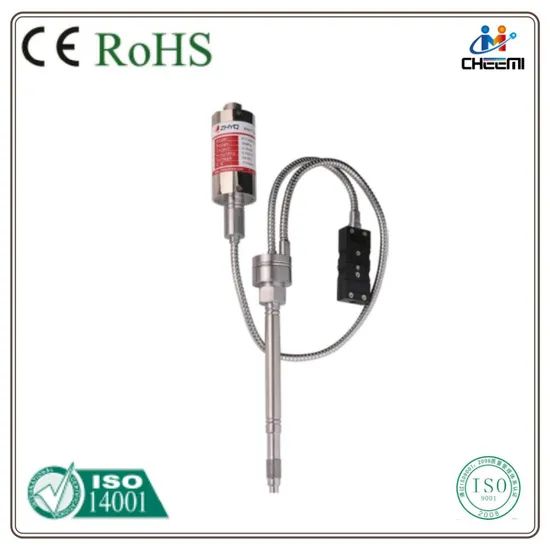

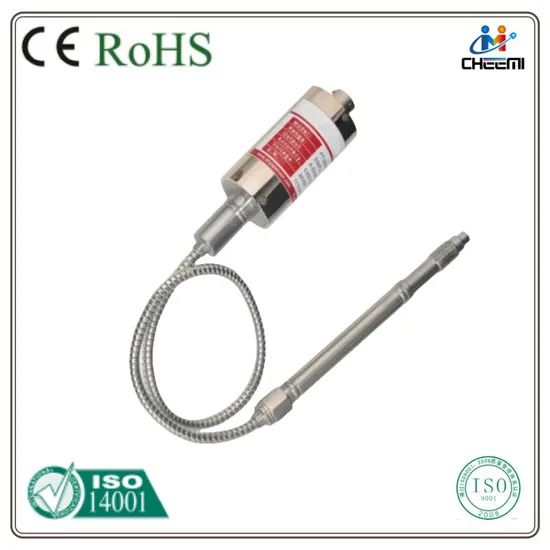

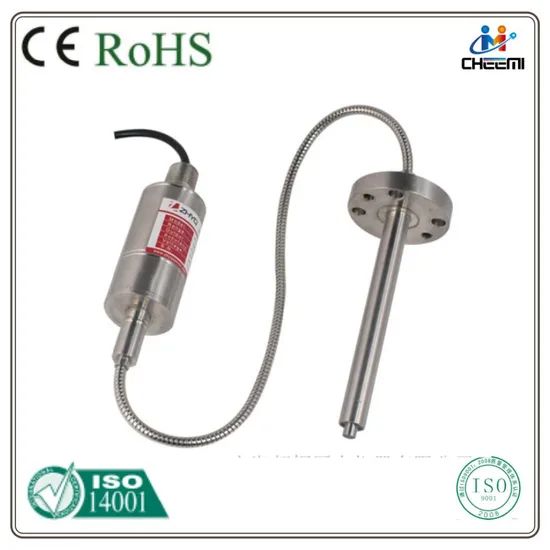

The model CMPT124B-111T comes with thermocouple, it can measure the pressure and temperature at one point. This series can be used together with the N Series Intelligent Digital Pressure Instrument of ZHYQ or other brand instrumentation. Zero & full span can be adjustable, with amplify signal can be connected with PLC. With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and etc.
Stainless steel Seal
Simple Installation
80% inner calibration
Excellent stability and repeatability ChemicalFiber Equipment
Plastic and Rubber manufacturing equipment
Measure and Control all kinds of melt fluid
| Technical Characteristics | |
| Model | CMPT124B-111T |
| Range | 0….10Mpa to 0….150MPa (0…1500psi to 0…20000psi) |
| Output | 0~5V; 1-5V; 0~10V; 4-20mA |
| Accuracy | ±1.0%FS |
| Input voltage | 24VDC |
| Repeatability | ±0.2% |
| Construction: | Wheatstone bridge |
| Bridge resistance | 350 ohms±10% |
| Overload pressure | 1.5×FSO |
| Internal calibration | 80%FSO±1% |
| Insulation Resistancel | 1000Megohms @50Vdc |
| Max. Diaphragm Temp | 350ºC |
| Electric connector | 5PIN, 6PIN |
| Process connector | 1/2″-20UNF, M14×1.5, M18×1.5(Customer design) |
| Thermocouple type: | J,K,E,PT100 Optional |
 |
|
Package
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
You can choose your own label(Screen Print or Laser Engraving).
Can be netural packing or OEM.
Shipping
Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Q1:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
Q2:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
Q3:Can you provide help for technical issues?
A:Yes,we have more than 10 years of research and development in the electronic industry. If you need technical help in the purchase process, please feel free to contact us.
Q4 : Can I get a lower price if I order large quantities?
A : Yes,it's negotiable.
Q5: How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q6: Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
