Industrial Refrigeration Valves Refrigeration Unit Valve Compressor Valve, Stop Valve Check Valve
Piece
Negotiable
Product information
High-quality Industrial Refrigeration Valves Refrigeration Unit Valve Compressor Valve, Stop Valve Check Valve supplied by Shandong Dofun Refrigeration Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Applicable Temperature:
-50 ~ +150
Production Capacity:
150000 Sets
Valve Rod Material:
304 Stainless Steel
Nominal Pressure:
4MPa, 6.3MPa
HS Code:
8481804090
Cooling Mode:
Air-Cooled
Structure Form:
Angle & Straight
Certificate:
CE, ISO, SGS, TUV, Bsi
Specifications
Applicable Temperature:
-50 ~ +150
Production Capacity:
150000 Sets
Valve Rod Material:
304 Stainless Steel
Nominal Pressure:
4MPa, 6.3MPa
HS Code:
8481804090
Cooling Mode:
Air-Cooled
Structure Form:
Angle & Straight
Certificate:
CE, ISO, SGS, TUV, Bsi
Transport Package:
Carton Box or Plywood Box Packaging
Application Fields:
Chemical
Origin:
China
System Type:
Closed System
Specification:
DN15-DN300
Trademark:
DOFUN
Fans Species:
Double-Speed Fan
Trade Term:
FOB, CIF, CFR, EXW
Color Of Valve Body:
Grey and Red
Payment Term:
LC, T/T, Western Union
Noise Level:
Low
Condition:
New
Applicable System:
Nh3, Freon and CO2
Type:
Nh3, Freon, CO2
Cooling Water:
Nh3, Freon, CO2
Port Of Loading:
Qingdao Port
Applicable Medium:
R12, R22, R502, R134A, R404A, R507, R717 and Other
Certification:
RoHS, UR, ISO, CE, CCC
Model NO.:
SVD
Sealing Method:
Totally Enclosed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-09-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
85
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
Others, CE
Product descriptions from the supplier
| Ammonia ,Freon,CO2 System Refrigeration Valve | |||||
| Valve Name | Model | Nominal Diameter | Nominal Pressure | Applicable Temperature | Applicable Medium |
| Stop Valve | SVD | DN15 - DN300 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | R12, R22, R502, R134a, R404a, R507, R717 CO2,and etc. |
| Check Valve | CVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Stop Check Valve | SCV | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Regulating Valve | TVD | DN15 - DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Filter | FVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Overflow Valve | OFD | DN20,DN25 | Pressure Adjustment Range: 2-6.5bar 3.5-8bar | -50ºC~+150ºC | |
| Liquid Level Switch | LS50 | DN20,DN25 | 2.8MPa | -50ºC~+65ºC | |
| Inlet Pressure Regulating Valve | IPRV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Inlet Pressure Regulating Valve(Solenoid Forced Close) | IPRV-1C | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Inlet Pressure Regulating Valve(Solenoid Forced Open) | IPRV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Outlet Pressure Regulating Valve | OPRV | DN25-DN65 | 2.8MPa | -50ºC~+120ºC | |
| Differential Pressure Regulating Valve | DPAV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Differential Pressure Regulating Valve(Solenoid Forced Open) | DPAV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Neck Flange Check Valve | NRVD | DN25-DN150 | 2.5MPa | -50ºC~+150ºC | |
| Solenoid Valve | DEVSC/ DEVS |
DN3-DN50 | 2.5MPa | -40ºC~+105ºC | |
| Motor Valve | DFMV | DN20-DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Pneumatic Solenoid Valve | DGPV | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Two-Step Open Solenoid Valve(Normally Close) | DGPV-2C | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Two-Step Open Solenoid Valve(Normally Open) | DGPV-2N | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Valve Station | DFCV | 4.0Mpa | -50ºC~+150ºC | ||
| Small Stop Valve | SVS | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC | |
| Gauge Valve Series | SVA | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC | |
| Motor Ball Valve | DBVD | DN25-DN150 | 4.0Mpa | -50ºC~+150ºC | |
| Cartridge Filter | CFVD | DN15-DN80 | 2.5MPa | -50ºC~+150ºC | |
| Double Stop Valve | DSVD | DSV1: DN25 | 4.0Mpa | -50ºC~+150ºC | |
| DSV2:DN20,DN25,DN32 | |||||

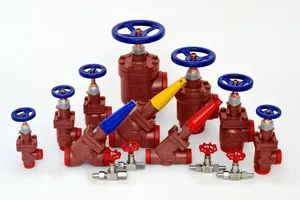

Stop Valve Picture:
Our Products:
Our Workshop:
Packing and Transport:
Small Valve plays A Big Role:
Our Certificate
Beautiful factory, and Hard-working DOFUN people.
Shandong DoFun Refrigeration Technology Co., Ltd. ( Hereinafter referred to as DOFUN) is located in LiaoCheng, an ancient canal capital with rich historical and cultural heritage as well as beautiful scenery.
The company covering an area of over 30 mu, and with an industrial park of over 50 mu in Yantai, has a registered capital of 50 million RMB. It owns a modern factory of over 10000 square meters and multiple world's advanced valve production lines and experimental text board. The main products conclude stop valve, check valve, stop check valve, overflow valve, motorized valve, throttle valve, filter and inlet pressure regulators etc. With strong technical force, excellent production equipment, complete detection means, strict system management, superior and reliable products and continuous products innovation, the valves of various materials produced by the company have been widely used in sectors of refrigeration, petrifaction, oil refining, nuclear power, chemical engineering, metallurgy, medicine, food, national defense, war and urban construction thereafter, DOFUN has gained great fame and affect at home and abroad, and received remarkable performance.
