Innovative 30MW Solar Module Manufacturing Line
Set
Negotiable
Product information
High-quality Innovative 30MW Solar Module Manufacturing Line supplied by Wuhan Ooitech Trading Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Half Cut:
1/2 1/3 1/4
Capacity:
100-600MW
Specification:
100-600MW Solar Panel Production Line
Solar Cell:
156-230mm
Warranty:
1year
Shift:
24h 3 Shift
Production Capacity:
5000
Factory Size:
8000m2
Specifications
Half Cut:
1/2 1/3 1/4
Capacity:
100-600MW
Specification:
100-600MW Solar Panel Production Line
Solar Cell:
156-230mm
Warranty:
1year
Shift:
24h 3 Shift
Production Capacity:
5000
Factory Size:
8000m2
HS Code:
8486209000
Automatic Production Line:
Assembly
Certification:
CE, ISO
Origin:
China
Transport Package:
Container
Transmission Type:
Conveyor
Laminator:
Double Chamber
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Rhythm:
Flow Production Line
After Sales Service:
Installation and Remote
Flexible Production:
Intelligent Manufacturing
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Trademark:
Ooitech
Model NO.:
Ooitech
Cell Type:
Perc Topcon Hjt IBC Hbc Sunpower
Port Of Loading:
SHANGHAI PORT, NINGBO PORT, SHENZHEN PORT
Production:
Solar Panel
Double Glass:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-04-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
SHANGHAI PORT, NINGBO PORT, SHENZHEN PORT
Certificates:
CE
Product descriptions from the supplier
The solar panel manufacturing setup is an essential step in producing photovoltaic modules, fundamental to modern renewable energy infrastructure. It integrates multiple advanced tools and systems, each tailored to carry out distinct stages in the assembly workflow. Central components within this setup are tabbing and stringing units, lamination systems, inspection devices, frame applicators, and connection systems. This entire system is engineered to maintain uniform performance, maximize output, and optimize panel functionality. An efficiently structured manufacturing system plays a significant role in fulfilling rising global needs for clean energy and advancing environmental sustainability.

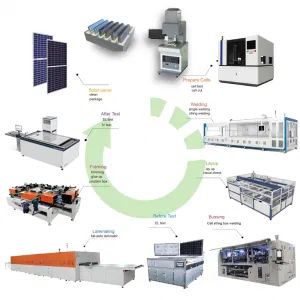

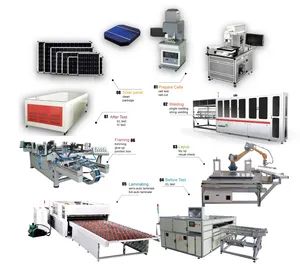

Solar panel production line including the following machines
Main Machines
Solar panel production line including the following machines

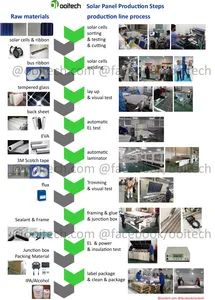

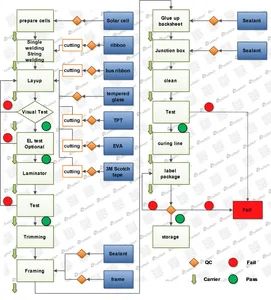

Step 1: Test solar cell efficiency: make sure the same power cell to be used in one solar panel;
Step 2: Cut complete solar cell into small pieces;
Step 3: Welding solar cell: welding solar cell to string solar cell;
Step 4: Cutting EVA/TPT: according to the solar panel size to cut the EVA and TPT in the designed size;
Step 5: Lay up: achieve solar string automatic laying on glass EVA, and transporting module to the next process;
Step 6: Visual inspection: check the dirty for the Raw materials;
Step 7: Defect check: uses the EL tester machine to identifying micro-cracks, broken finger wires, and other invisible defects in solar modules;
Step 8: Lamination: after EL tester checking the defects, use solar panel Laminate the raw material into solar panel;
Step 9: Trimming: when the Solar panel get cooling after coming out from laminator, It need Cutting the edges, we call Trimming;
Step 10: Glue: use sealant to glue up on aluminum frame;
Step 11: Framing: use the framing machine to install the aluminum frame;
Step 12: Glue: fill the sealant to aluminum alloy after framing;
Step 13: Install junction box: glue the junction box and install it on the solar panel;
Step 14: IV Test: use solar simulator to test the finished solar panel Electrical performance test like power, current etc and record;
Step 15: Test the panel withstand voltage insulation;
Step 16: Defect check: uses the EL tester machine to identifying micro-cracks, broken finger wires and other invisible defects of finished solar modules;
Step 17: Label;
Step 18: Clean the surface and package.

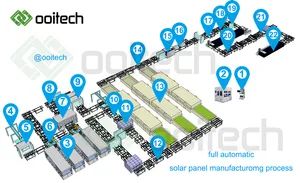

| Step | Device Name | Working Content |
| 1 | Solar Cell Tester | Test solar cell efficiency: make sure same power cell to be used in one solar panel. |
| 2 | Solar Cell Laser Scribing Machine | Cut Complete solar cell into small pieces. This machine use to produce small solar panel from 3w-140w. Big size solar panel from 150w-310w use complete solar cell. no need to use this machine |
| 3 | Automatic Solar cell tabber stringer | Automatic welding solar cell: Except manual welding, you can also use the Automatic machine welding solar cell to string solar cell. |
| 4 | Automatic Layup | Automatic layup: Automatic layup the string cells from the tabber stringer. |
| 5 | Cutting EVA / TPT Cutting station | Cutting EVA/TPT according to the solar panel size to cut the EVA and TPT in the designed size. |
| 6 | Automatic Bussing Machine | Online busbar ribbon welding Lay up the EVA and TPT, welding the busbar ribbon |
| 7 | Visual Inspection Work station | Visual inspect Check the dirty for the Raw materials by the mirrors |
| 8 | EL Defect Tester | Defect check: uses the EL tester machine to identifying micro-cracks, broken finger wires and other invisible defects in solar modules. |
| 9 | Solar panel laminator | Lamination: After EL tester checking the defects, use solar panel Laminate the raw material into solar panel. |
| 10 | Trimming worktable | Trimming: When the Solar panel get cooling after coming out from laminator, It need Cutting the edges, we call Trimming |
| 11 | Air glue gun | Glue Use sealant to glue up on aluminum frame |
| 12 | Semiautomatic solar panel laminator | Framing: Use the framing machine to install the aluminum frame |
| 13 | Manual | Install junction box Glue the junction box and install it on the solar panel. |
| 14 | Solar Panel Tester/ Solar Simulator |
IV Test: Use the solar panel tester to test the finished solar panel Electrical performance test like power, current etc and record |
| 15 | Label | |
| 16 | Withstand Voltage Insulation Meter | Test the panel withstand voltage insulation |
| 17 | Cleaning the surface and package |
Main Machines
The Non-Destructive Cutting (NDC) system is a thermal laser-based device employed in solar cell fabrication. It delivers sharp, damage-free cuts using focused laser energy, enhancing both accuracy and speed in panel assembly. This cutting technique significantly improves the efficiency and consistency of solar panel manufacturing. The NDC system can handle multiple materials such as silicon, glass, and metal. Thanks to its sophisticated design and exact cutting performance, it plays a vital role in producing top-tier solar panels.
Tabber stringer
a specialized device in solar panel manufacturing that joins individual solar cells into a functional unit. It applies thin metallic strips—referred to as tabbing—to both sides of the cells, linking them end-to-end to create a series circuit. This process maintains consistent electrical flow across the panel’s cells. The device plays a critical role in the solar panel assembly process and operates alongside key machines like the laminator and the performance tester. Consistent performance and reliability in the tabber stringer directly impact the final efficiency and durability of the solar panels.
a specialized device in solar panel manufacturing that joins individual solar cells into a functional unit. It applies thin metallic strips—referred to as tabbing—to both sides of the cells, linking them end-to-end to create a series circuit. This process maintains consistent electrical flow across the panel’s cells. The device plays a critical role in the solar panel assembly process and operates alongside key machines like the laminator and the performance tester. Consistent performance and reliability in the tabber stringer directly impact the final efficiency and durability of the solar panels.
|
Specifications |
Model |
OTHS-PBR |
|
Power supply |
AC380V 50Hz |
|
|
Power |
≤10kW |
|
|
Cycle time |
single string≤5s |
|
|
String arrangement accuracy |
±0.3mm |
|
|
Applicable module specification |
2450*1400mm |
|
|
Air consumption |
500L/min |
|
|
Dimensions(L*W*H) |
3200*2800*2200mm |
|
|
Functionality |
Compatibility |
Regular 60/72 cells, double glass, three junction boxes type and half-cell modules |
|
Operation Mode |
One button switch |
|
|
Noise level |
≤60dB |
|
|
HMI |
Chinese/English mode |
|
|
Feature |
Overall Machine |
1. Maximum module specification 2450*1400mm 2. Compatible with horizontal and vertical types 3. One button switch |
|
Cell string conveyor |
1. conveyor with narrow belt, avoid misjudging due to belt dirt 2. Servo drive, indifference docking with stringer |
|
|
CCD image system |
1. CCD image calculation 2. Adjust the fixing camera way in plane motion, improve higher photo accuracy 3. Camera image part can be drived by servo |
|
|
Robot action |
Absorbing string cell directly, saving time |
Solar cell holding tape is a specialized adhesive employed in the manufacturing of solar panels. It holds individual solar cells in place on a base substrate prior to the soldering stage that assembles the final solar module. Engineered to endure extreme heat, this tape forms a robust attachment that stops cells from shifting or relocating during the high-temperature soldering phase. Incorporating this tape enhances both the performance and consistency of solar panel fabrication by maintaining precise cell positioning and stable fixation.
156-210 Mbb 50-60s/Panel Auto Solar Cell String Bussing Machine
Detach the cell string from the glass, lift it into the air, and perform soldering connection for the head, central, and tail bus bars of the mid-wire module at a set elevation; features roll-fed bus bar action with upward bending of U and L terminals.
Fully Automatic Solar Panel Laminating Machine of Solar Panel Production Line
A fully automated solar panel lamination system is a dedicated tool integral to solar panel manufacturing. It joins several material layers into a robust and high-performance solar panel. The lamination process ensures structural integrity and optimal efficiency.cSolar panel construction relies on applying heat and mechanical pressure to bond glass, EVA encapsulant, and photovoltaic cells. An automated laminating system handles this operation with high accuracy and speed, minimizing defects and enhancing the output's consistency. Such equipment is commonly deployed in the renewable energy sector to manufacture reliable solar panels suitable for diverse uses.
Solar Panel EL Defect Tester with Visual Inspecting - Solar Panel Production Line
Used in testing the solar module Crack,breakage, Black Spot,Mixed Wafers,Process Defect,Cold Solder Joint phenomenon|
Equipment performance |
Description |
Remarks |
|
Testing cycle (s) |
≤24s |
|
|
Testing range (mm) |
Conventional modules, double-glazed modules, film-mounted modules and halved modules. 156 polycrystalline/monocrystalline 72-cell module: 1,956 * 992 * 40 mm (46 mm) 60-cell module: 1,650 * 992 * 40 mm (35 mm) |
Universal for before and after the layer |
|
Feeding method |
Feeding by the long edge, conveying by the belt, adjustable conveying spacing. |
|
|
Testing method |
Upward perpendicular projection of four cameras and imaging by three movements of the modules. |
|
|
Human-machine interface |
Testing mode: For normal testing on the production line, as well as for monitoring and volume production statistics. Assembly line mode: For transmission on the assembly line, without EL testing. Commissioning mode: Individual control for each module of the equipment for commissioning and maintenance |
|
|
Software |
EL tester 1) Automatic module barcode recognition 2) Monocrystalline auxiliary diagnosis 3) MES interfacing 4) Query 5) Other functions |
|
|
Image storage |
Save the EL pictures in the name of the module barcode and upload to MES system |
|
