Insulation Jacket Silicone Coated Fiberglass Cloth
10-99 Square Meter
$5.5100-999 Square Meter
$4.81000 Square Meter
$4Product information
High-quality Insulation Jacket Silicone Coated Fiberglass Cloth supplied by JIANGSU BOCHENG NEW TECH MATERIALS CO., LTD.. Bulk wholesale pricing ranges from $4 to $5.5 per Square Meter with a minimum order of 10 Square Meter. Inquiry for latest prices.
Temperature Resistance:
-70-260℃
Thickness:
0.08 mm - 1 mm
MOQ:
10 Square Meters
Production Capacity:
1000 Square Meters Per Day
Width:
1250mm
HS Code:
7019590000
Alkali Content:
Alkali Free
Samples:
Available
Specifications
Temperature Resistance:
-70-260℃
Thickness:
0.08 mm - 1 mm
MOQ:
10 Square Meters
Production Capacity:
1000 Square Meters Per Day
Width:
1250mm
HS Code:
7019590000
Alkali Content:
Alkali Free
Samples:
Available
Specification:
Can be customized
Transport Package:
Cartons
Advantages:
Chemical Corrosion Resistance
Origin:
China
Fiberglass Type:
E-Glass
Trade Term:
FOB, DDP, DAP, FCA, EXW
Material:
Fiberglass Yarn
Good Features:
High Insulating, Anti-Corrosion, Good Flexibility
Trademark:
K-fab
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Weave Type:
Plain Woven
Color:
Red, Black, White
Model NO.:
SC-1
Port Of Loading:
SHANGHAI PORT
Surface Treatment:
Silicon Coated
Product Name:
Silicone Coated Fiberglass Fabric
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-09-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, DDP, DAP, FCA, EXW
Port Of Loading:
SHANGHAI PORT
Certificates:
certificate
Product descriptions from the supplier
Fire Resistance Silicone Coated Fiberglass Insulation Fabric
Silicone rubber coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber. It is a newly-made-product with high properties and multiple applications.
Due to its unique and excellent resistance to high-temperatures, permeability and aging, in addition to its durability, this fiberglass fabric is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint (compensator) and etc.
Silicone rubber coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber. It is a newly-made-product with high properties and multiple applications.
Due to its unique and excellent resistance to high-temperatures, permeability and aging, in addition to its durability, this fiberglass fabric is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint (compensator) and etc.
Features:
1.used in the temperature from -70ºC to 300ºC
2.resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3.high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4.good flexibility and high surface friction
5.chemical corrosion resistance
2.resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years
3.high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
4.good flexibility and high surface friction
5.chemical corrosion resistance
Applications:
1. Electrical Burmese: Silicone cloth has a higher electrical insulation level, can withstand high voltage loads, and can be made into insulating cloth, casing and other products.

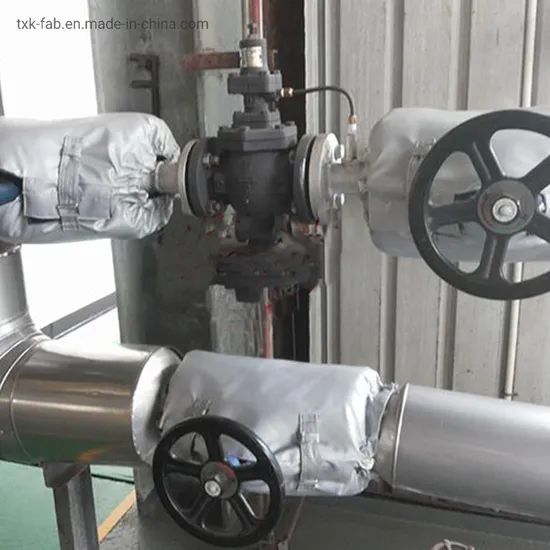

2. Non-metallic compensator: Silicone cloth can be used as a flexible connecting device for pipelines. It can solve the damage of thermal expansion and contraction to the pipeline. Silicone cloth has high temperature resistance, corrosion resistance, anti-aging performance, good elasticity and flexibility. , Can be widely used in petroleum, chemical, cement, energy and other fields.
3. Anti-corrosion aspect: Silicone rubber coated glass fiber cloth, which can be used as a pipeline and internal and external anti-corrosion layer for storage. It has excellent anti-corrosion performance and high strength. It is an ideal anti-corrosion material.
4. In terms of temperature resistance: as a fire blanket, fire curtain, temperature resistance and flame retardant material
5. Other fields: Silicone rubber coated glass fiber membrane structural materials can be used in building sealing materials, high-temperature anti-corrosion conveyor belts, packaging materials and other fields.
6. As a temperature-resistant, anti-corrosion conveyor belt, such as shoes
2. Non-metallic compensator: Silicone cloth can be used as a flexible connecting device for pipelines. It can solve the damage of thermal expansion and contraction to the pipeline. Silicone cloth has high temperature resistance, corrosion resistance, anti-aging performance, good elasticity and flexibility. , Can be widely used in petroleum, chemical, cement, energy and other fields.
3. Anti-corrosion aspect: Silicone rubber coated glass fiber cloth, which can be used as a pipeline and internal and external anti-corrosion layer for storage. It has excellent anti-corrosion performance and high strength. It is an ideal anti-corrosion material.
4. In terms of temperature resistance: as a fire blanket, fire curtain, temperature resistance and flame retardant material
5. Other fields: Silicone rubber coated glass fiber membrane structural materials can be used in building sealing materials, high-temperature anti-corrosion conveyor belts, packaging materials and other fields.
6. As a temperature-resistant, anti-corrosion conveyor belt, such as shoes
|
Item No |
thickness |
Breaking strength |
Bursting strength |
Nominal Weight |
Width |
|
KG015 |
0.17mm |
1100/900N/5cm |
2.1mpa |
280g/sqm |
1250mm |
|
KG025 |
0.25mm |
1800/1500N/5cm |
2.1mpa |
440g/sqm |
1250mm |
|
KG040 |
0.40mm |
2400/2200N/5cm |
2.4mpa |
580g/sqm |
1500mm |
|
KG060 |
0.60mm |
2600/2400N/5cm |
2.5mpa |
850g/sqm |
1500mm |
|
KG080 |
0.80mm |
3000/2800N/5cm |
2.6mpa |
1120g/sqm |
1500mm |
|
HG025 |
0.25mm |
1800/1500N/5cm |
2.1mpa |
440g/sqm |
1250mm |
|
HG040 |
0.40mm |
2400/2200N/5cm |
2.4mpa |
580g/sqm |
1500mm |
|
HG060 |
0.60mm |
2600/2400N/5cm |
2.5mpa |
850g/sqm |
1500mm |
|
HG080 |
0.80mm |
3000/2800N/5cm |
2.6mpa |
1120g/sqm |
1500mm |
|
HG045 |
0.4mm |
2600/2200N/5cm |
2.2mpa |
540g/sqm |
1500mm |
|
HG085 |
0.8mm |
3200/3000N/5cm |
2.2mpa |
1080g/sqm |
1500mm |
1.Is the silicone coated fiberglass fabric heat resistant?
Yes,it is.
2.What are the applications of the silicone fiberglass fabric ?
Electric insulation,pipeline flexible coupling,anti-corrosion sector ,sealing material,temperature resistant and anti-corrosion conveyor belt and packaging material.
