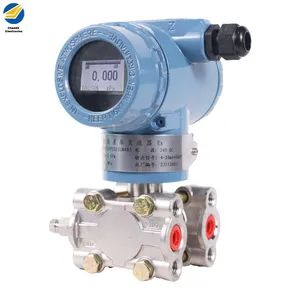

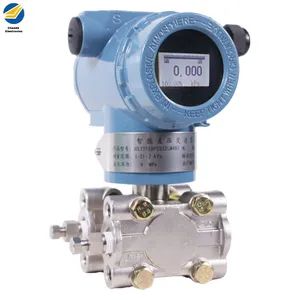

Intelligent Differential Pressure Transmitter Water Oil Pressure
Set
Negotiable
Product information
High-quality Intelligent Differential Pressure Transmitter Water Oil Pressure supplied by Wuxi Chaoda Electronic Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Storage Temperature:
-45 to 90℃
Accuracy Grade:
0.075%
Repeatability Error:
0.1%, 0.2%, 0.3%
Hysteresis:
0.1%, 0.2%, 0.3%
Package Size:
165.00cm * 151.00cm * 310.00cm
Package Gross Weight:
4.500kg
Production Capacity:
5000
Transport Package:
Box
Specifications
Storage Temperature:
-45 to 90℃
Accuracy Grade:
0.075%
Repeatability Error:
0.1%, 0.2%, 0.3%
Hysteresis:
0.1%, 0.2%, 0.3%
Package Size:
165.00cm * 151.00cm * 310.00cm
Package Gross Weight:
4.500kg
Production Capacity:
5000
Transport Package:
Box
Trademark:
CHD
Model NO.:
CHD-CYBSQ
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Power Supply:
DC 12-45V; Hart
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Measuring Medium:
Liquids, Gases and Vapors
Scope Of Use:
Liquids, Gases and Vapors
Payment Methods:
Support payments in USD
Constant Current Performance:
The Variation Is Less Than 0.075%
Connection Mode:
Thread, Single Flange, Double Flange
Port Of Loading:
shanghai
Basic Error:
±0.075%, 0.1%, 0.2%
End Base Consistency Error:
±0.1%, 0.2%, 0.3%
Pressure Range:
±2kpa ±6kpa 7to4000kp Optional
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
shanghai
Certificates:
Trademark registration certificate, Utility model patent certificate
Product descriptions from the supplier
Main Features:
1.Span shift function, span shift ratio 10:1
2.Damping: 0-30s adjustment, 0.1s/step
3.Zero/full span compensation and correction
4.Output current multi points correction
5.Multi pressure units option
6.Ultralow temperature LCD display (-40~70ºC)
7.Extraction of a root function for output current
8.Self-diagnosis and fault alarm output function
9.EEPROM non-volatile memory, prevent losing data due to outage or mistake
10.Remote transmission via HART
1.Span shift function, span shift ratio 10:1
2.Damping: 0-30s adjustment, 0.1s/step
3.Zero/full span compensation and correction
4.Output current multi points correction
5.Multi pressure units option
6.Ultralow temperature LCD display (-40~70ºC)
7.Extraction of a root function for output current
8.Self-diagnosis and fault alarm output function
9.EEPROM non-volatile memory, prevent losing data due to outage or mistake
10.Remote transmission via HART
| Sensor Material | Monocrystalline silicon |
| Measure Medium | Gas/Liquid/Steam |
| Output | 4~20mA+Hart / RS485 |
| Power Supply | 12~30VDC |
| Display | 5-digits LCD |
| Explosion-proof Performance | Explosion-proof, waterproof, sealed shell, Intrinsically-safe |
| Operating Temperature | -40ºC~70ºC |
| Medium Temperature |
-40ºC~100ºC(silicon oil) -40ºC~85ºC(fluorocarbon oil) -29ºC~149ºC(normal silicon oil) 15ºC~300ºC(high temp silicon oil) |
| Damping Adjustment | 0-30s, 0.1s/step |
| Measure Range |
Differential pressure: 0-0.125KPa to 0-7MPa Gage pressure: 0-0.125KPa to 0-42MPa Absolute pressure: 0-200KPa to 0-2.1MPa |
| Accuracy | 0.075% F.S. |
| Stability | ≤0.1%/year, 0.25%/3 years |
| Measure Range Ratio | 10:1 |
FAQ:
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
