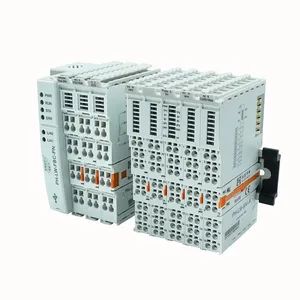

Intelligent Io Module with DIN-35 Rail Mounting & Communication Diagnosis
Piece
Negotiable
Product information
High-quality Intelligent Io Module with DIN-35 Rail Mounting & Communication Diagnosis supplied by Beijing Pinghe Chuangye Technology Development Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
100mm*12mm*67mm(LWH)
Function:
Automatic Control
Trademark:
Beijing Pinghe
Transport Package:
Box
Origin:
China
Signal:
Continuous
Customized:
Customized
Trade Term:
FOB, CIF, CFR, , EXW
Specifications
Specification:
100mm*12mm*67mm(LWH)
Function:
Automatic Control
Trademark:
Beijing Pinghe
Transport Package:
Box
Origin:
China
Signal:
Continuous
Customized:
Customized
Trade Term:
FOB, CIF, CFR, , EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Mathematical Model:
Linear
Condition:
New
Model NO.:
PH-LW-8AI-V
Material:
PVC
Port Of Loading:
Tianjin Port, Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-01-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
63
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, , EXW
Port Of Loading:
Tianjin Port, Shanghai Port
Certificates:
Others
Product descriptions from the supplier
SONA2024 2.2.1
Parameter
Product model | PH-LW-8AI-V |
Product description | 8-channel analog input module, voltage type |
Number of channels | 8 |
Signal type | Voltage/Singel end |
System bus input current rating | 20mA |
ADC resolution | 16Bit |
Measuring range | ±10V,0~10V,2~10V,±5V,0~5V,1~5V |
Input impedance | >400KΩ |
Input accuracy (full temperature range) | 0.20% |
Signal input limits | ±15V |
Input diagnostic | 2~10V,1~5V Support broken wire detection |
Input filtering | 1000Hz~50Hz configurable |
Reverse curcuit protection | Support |
Communication error diagnosis | Support |
Isolation mode | Optically isolated from the field layer |
Dimension installation parameters | |
Dimension standard | 100mm×12mm×67mm(LWH) |
Mounting type | DIN-35 rail |
Product Description
Company Profile
Beijing Pinghe was founded in January 2004 and is located in Beijing Zhongguancun Science and Technology Park with registered capital 80 million CNY. We are a national high-tech enterprise dedicated to industrial signal interface modules.
As a top brand recognized by the industry Beijing Pinghe has main focused on R&D production and sales in the industrial control area, possesses two big intelligent production bases. The products are broad-range used in the power, aerospace petrochemical, metallurgical power, energy and environmental protection, shipbuilding and bio-medicine industries. So far, more than 5 million pieces run stable in domestic and foreign markets, our excellent quality and outstanding service have been highly recognized and praised by a vast number of partners.
As a top brand recognized by the industry Beijing Pinghe has main focused on R&D production and sales in the industrial control area, possesses two big intelligent production bases. The products are broad-range used in the power, aerospace petrochemical, metallurgical power, energy and environmental protection, shipbuilding and bio-medicine industries. So far, more than 5 million pieces run stable in domestic and foreign markets, our excellent quality and outstanding service have been highly recognized and praised by a vast number of partners.
Packing & Delivery
Recommend products
FAQ
Q1: Can you put my brand name (logo) on these products or provide customized solutions?
A: Yes, we can support OEM/ODM service, the process of customization is following:
* Provide your specific requirement.
* Our engineer draws the design.
* You confirm the design draft.
* We start produce it.
Q2: What is the Minimum Order Quantity (MOQ)?
A: We can supply one sample for your testing.
Q3: What is the lead time of your products?
A: 5 working days for few samples, 15-25 working days for a large quantity.
Q4: What is the quality control in your factory?
A: Quality is our top priority. We have IQC (Incoming Quality Control), production inspection, reliability testing, out-going
inspection and after sales data analysis etc.
Q5: What's the warranty of your products?
A: Non-artificial damage, 1 years warranty. The second year and the third year, we can repair it free, but we will only charge the
actual costs of the parts that needs to be replaced.
Q6: Are you a factory or trading company?
A: We are a leading professional manufacturer which located in Beijing, China.
A: Yes, we can support OEM/ODM service, the process of customization is following:
* Provide your specific requirement.
* Our engineer draws the design.
* You confirm the design draft.
* We start produce it.
Q2: What is the Minimum Order Quantity (MOQ)?
A: We can supply one sample for your testing.
Q3: What is the lead time of your products?
A: 5 working days for few samples, 15-25 working days for a large quantity.
Q4: What is the quality control in your factory?
A: Quality is our top priority. We have IQC (Incoming Quality Control), production inspection, reliability testing, out-going
inspection and after sales data analysis etc.
Q5: What's the warranty of your products?
A: Non-artificial damage, 1 years warranty. The second year and the third year, we can repair it free, but we will only charge the
actual costs of the parts that needs to be replaced.
Q6: Are you a factory or trading company?
A: We are a leading professional manufacturer which located in Beijing, China.
