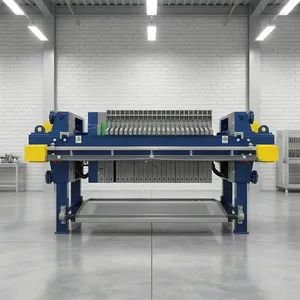

Intelligent Program-Controlled Automatic Pressure-Holding Plate and Frame Filter Press
1-4 Set
$2,8605-9 Set
$2,81010 Set
$2,750Product information
High-quality Intelligent Program-Controlled Automatic Pressure-Holding Plate and Frame Filter Press supplied by Guangzhou Longdai Environmental Protection Technology Co., Ltd. Bulk wholesale pricing ranges from $2,750 to $2,860 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Chamber Volume:
0.02-1.17m3
Filtration Area:
0.16-80m²
Filter Pressure:
0.5-2.5MPa
Expression Pressure:
0.6-2.0MPa
Package Gross Weight:
1500.000kg
Production Capacity:
2000
Cake Thickness:
25/30
Plate Qty:
3-179
Specifications
Chamber Volume:
0.02-1.17m3
Filtration Area:
0.16-80m²
Filter Pressure:
0.5-2.5MPa
Expression Pressure:
0.6-2.0MPa
Package Gross Weight:
1500.000kg
Production Capacity:
2000
Cake Thickness:
25/30
Plate Qty:
3-179
Package Size:
300.00cm * 200.00cm * 200.00cm
HS Code:
5200
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customizable
Feed:
External Cornerfeeding/Cornerfeeding
Trade Term:
FOB, CFR, CIF, EXW
Application1:
Food Industry
Port Of Loading:
Guangzhou Port, Shenzhen Port
Application3:
Juice Industry
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Pressure:
Manual/Mechanical/Hydraulic
Application2:
Oil Industry
Filtrate Delivery:
Open\Close
Type:
Plate Filter Press
Model NO.:
SY-BK
Trademark:
Siony
Payment Methods:
Support payments in USD
Application:
Wine Industry
Transport Package:
Wooden Case (Seaworthy Package)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-07-20
Annual Revenue Amount:
Not specified
Numbers Of Employees:
7
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Guangzhou Port, Shenzhen Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Q:Do you have minimum order quantity request?
A:No minimum order, but it can get a discount if you order a large quantity.
Q:Do you have certificates?
A:Yes,we have ISO,CE and RoHS certificate.
Q:Can you meet my special requirements for the product?
A:Yes,we have a professional design team.We can provide drawings according to your requirements.
Q:How to buy your idea products?
A:You can provide us your water or waste sources,water or waste quality,flow rate and ground area (connect us for more details)
Q:How to pay?
A:T/T and L/C are acceptable and T/T will be more appreciated 30% deposit before producing,70% balance before loading by T/T.
Q:What is the delivery time ?
A: It depends on order quantities .Generally speaking ,the delivery time will be within 2 to 4 weeks.
Q:How to pack the products?
A:We use standard package .If you have special package requirements ,we will pack as required ,but the fees will be paid by customers.
Q:How to install after the equipment arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee ,air tickets ,accommodation, wages will be paid by buyers.
PRODUCT DISPLAY
Short Description:
The plate and frame filter press is a classic solid-liquid separation equipment in the industrial field, mainly used for sludge dewatering, material purification and impurity filtration. In municipal sewage treatment, it can compress excess sludge with a moisture content of 80%-95% into mud cakes with a moisture content of 60%-85%, significantly reducing volume for easy transportation and subsequent disposal. In chemical production, it can separate solid particles from reaction products and purify liquid raw materials or finished products to ensure product purity. In the food industry, it is used for clarifying and filtering fruit juice, syrup, etc., to remove pulp residues and impurities. In the mining field, it is suitable for pulp dewatering to recover useful mineral components. In addition, it is also widely used in pharmaceutical, printing and dyeing fields, solving the problems of incomplete separation and low efficiency of traditional filtration equipment, and providing support for meeting environmental standards and improving production quality.
PRODUCT DETAILS
The plate and frame filter press is mainly composed of four parts: filtration mechanism, pressing mechanism, hydraulic system and control system. The filtration mechanism is the core, consisting of alternately arranged filter plates and filter frames. The surface of the filter plate is provided with drainage grooves, covered with filter cloth on both sides, and a sealed filter chamber is formed after the filter plate and filter frame are attached. The pressing mechanism includes a pressing plate, a thrust plate and a beam, which drives the pressing plate through power to make the filter plate and filter frame fit closely to prevent liquid leakage. The hydraulic system provides pressing power, including a hydraulic pump, oil cylinder and pipeline, and can adjust the pressing pressure (usually 0.8-2.0MPa) according to material characteristics. The control system is centered on PLC, with an operation panel, which can set parameters such as filtration time and pressure, monitor equipment operation in real time, and automatically alarm and shut down when abnormalities such as overpressure and leakage occur to ensure safe and stable operation.
The plate and frame filter press realizes solid-liquid separation based on the principle of "pressure filtration", which is divided into four key stages. The first stage is pressing and sealing: the hydraulic system drives the pressing plate to tightly squeeze the filter plate and filter frame to form a closed filter chamber. The second stage is feeding and filtration: materials (sludge, suspension, etc.) are injected into the filter chamber under the pressure of the feed pump (0.2-0.6MPa). The liquid penetrates into the filter plate grooves through the filter cloth and is discharged through the liquid outlet, while solid particles are intercepted by the filter cloth and accumulated in the filter chamber. The third stage is pressing and dewatering: when the solid in the filter chamber accumulates to a certain amount, secondary pressing (such as diaphragm pressing) can be started, and high-pressure water or compressed air is injected into the filter plate diaphragm to further squeeze the filter cake and reduce the moisture content to a lower level. The fourth stage is cake discharging and cleaning: after filtration, the pressing mechanism is loosened, the filter plate and filter frame are pulled apart by the plate pulling device, the filter cake falls off automatically, and the next cycle starts after cleaning.
The plate and frame filter press has the core characteristics of high separation efficiency, low filter cake moisture content, strong adaptability and stable operation. In terms of separation efficiency, relying on high-pressure pressing force, the solid particle interception rate reaches more than 95%, with high filtration accuracy, which can meet the demand for high-purity separation. The moisture content of the filter cake is much lower than that of belt-type and stacked screw-type equipment, which can be reduced to below 60% at the lowest, significantly reducing subsequent treatment costs. It has strong adaptability, can handle various materials such as sludge, chemical slurry and food suspension, and can adapt to materials with different viscosities and particle sizes by replacing filter cloth and adjusting pressure. In operation, although it is intermittent operation, it has a simple and reliable structure, long service life of core components (filter plate, hydraulic pump) and low maintenance cost. However, it covers a large area and requires certain manual assistance for cake discharging, so it is more suitable for processing batch materials with high solid content and high requirements for filter cake moisture content.
Filter press type | Diaphragm Filter Press |
Pressure | Auto Hydraulic |
Feed | Feeding From Both Ends |
Feature | Membrane Expression |
Plate Qty | 51-147 |
Expression Medium | High Pressure Air |
Maintenance | Simple |
Drive motor | Variable frequency drive |
