Intelligent Wireless Data Acquisition Terminal IoT Data Logger
1 pcs
$7991 pcs
$579Product information
High-quality Intelligent Wireless Data Acquisition Terminal IoT Data Logger supplied by Shenzhen Toprie Electronics Co., Ltd.. Bulk wholesale pricing ranges from $579 to $799 per pcs with a minimum order of 1 pcs. Inquiry for latest prices.
Package Gross Weight:
2.000kg
Size:
215.6*129.4*35mm
Package Size:
25.00cm * 20.00cm * 20.00cm
Specification:
41*37*28cm
Display:
7-Inch Touch Screen
SD Card Memory Size:
70m
Screen Size:
7inch
HS Code:
8517629300
Specifications
Package Gross Weight:
2.000kg
Size:
215.6*129.4*35mm
Package Size:
25.00cm * 20.00cm * 20.00cm
Specification:
41*37*28cm
Display:
7-Inch Touch Screen
SD Card Memory Size:
70m
Screen Size:
7inch
HS Code:
8517629300
Transport Package:
Carton Box
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
IP Rating:
IP54
Payment Term:
LC, T/T, D/P, Western Union, PayPal, Small-amount payment
Communication:
RS485, Ethernet, 4G, Lora, Lorawan
Certification:
RoHS, CE, ISO
Origin:
Shenzhen
Port Of Loading:
Shenzhen Port
Payment Methods:
Support payments in USD
Model NO.:
T3
Measuring Medium:
Tmperature, Pressure,Current and Customized
Trademark:
Toprie
Features:
Wireless Split Networking Data Acquisition
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-01-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
113
Preferred Payment Term:
LC, T/T, D/P, Western Union, PayPal, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO14001, Others, ISO9001:2015
Product descriptions from the supplier
| Name | T3 wireless data logger data acquisition module Gateway |
| DC power supply | 24VDC±10% |
| Power consumption | ≤ 12VA |
| Sampling frequency | 1-19999s independently set |
| Recording capacity | 70M (record once per second and can record continuously for 3 days) |
| Recording mode | loop recording |
| Alarm type | high and low limit alarms, 4 per channel |
| Relay | 1 normally open relay 220VAC/3A |

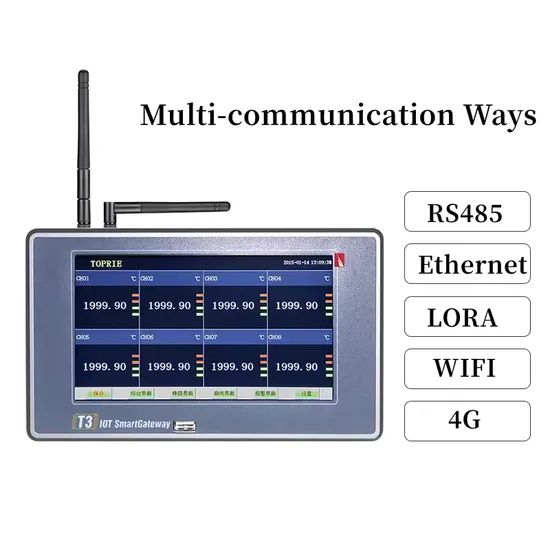

| Communication method | RS232, 485, ethernet,(wifi/4g can be optional) Standard modbus communication protocol |
| Operating environment | 0-50°C <85%RH (no condensation) |
| Storage environment | -20-70°C <95%RH (no condensation) |
| Material | Aluminum alloy |
| Dimension | 215.6*129.4*34.5mm |

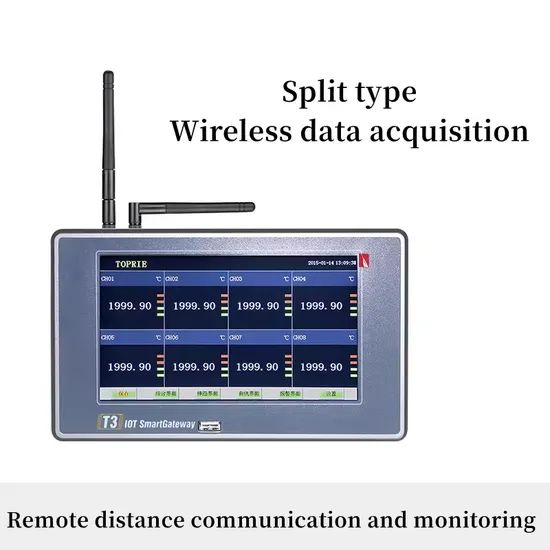

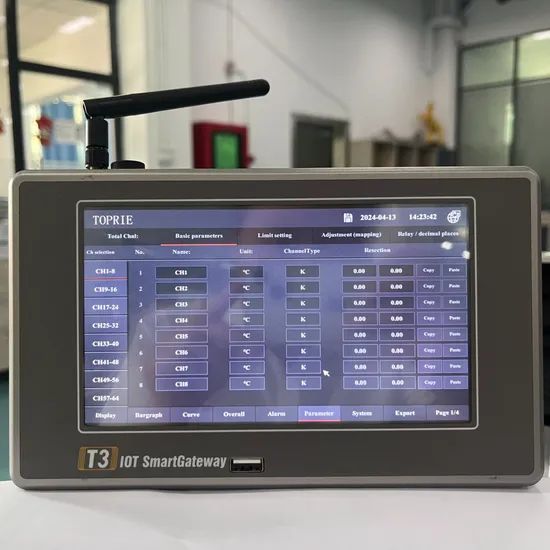

Display all temperature and humidity recorder data, flip screen display, each interface displays up to 40 channels of temperature and humidity values

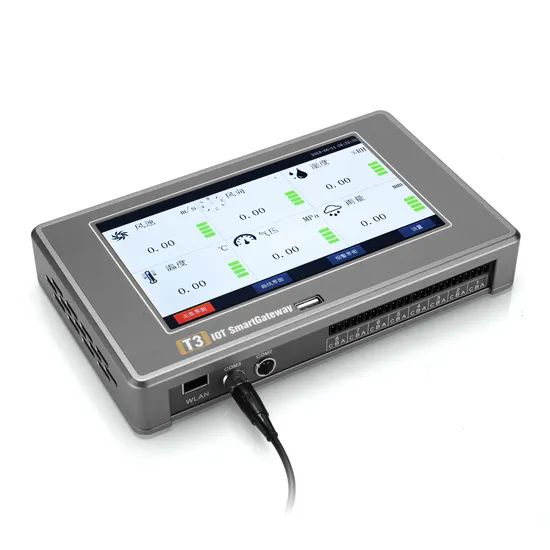

1. 7-inch TFT LCD color display
2. USB interface to easily export data
3. Handheld or fixed installation
4. Fully isolated universal input, multiple signal acquisition
5. All-aluminum sealed shell and internal shielding plate, normal operation in harsh environments
6. Ethernet input, set a fixed IP, any computer in the LAN can view and download data through software
7. Rich display interface, can produce real-time data and historical curves, try to save alarm information, so that each alarm information will not be lost
8. Single channel name support modification
9. Support data upload data platform, mobile phone, external network computer can realize real-time data viewing and downloading
| Input Type | Measuring range (indication range) |
Measurement accuracy (reference error, absolute error) |
Digital display resolution | ||
| DC voltage | 0-10V | -0.5V to+11.000V | 0.01% F.S. ±0.002V | Maximum 6 digits | |
| 0-5V | -0.5V to+5.500V | 0.01% F.S. ±0.002V | Maximum 6 digits | ||
| ±100mV | -110.0mV to+110.0mV | 0.005% F.S. ±0.005mV | Maximum 6 digits | ||
| ±20mV | -21.0mV to+21.0mV | 0.005% F.S. ±0.005mV | Maximum 6 digits | ||
| DC Current | 4-20mA | +3mA to+21.00mA | 0.01% F.S. ±0.001mA | Maximum 6 digits | |
| 0-20mA | 0.00mA to+21.00mA | 0.01% F.S. ±0.001mA | Maximum 6 digits | ||
| Measurement accuracy (relative error) | Maximum 6 digits | ||||
| Thermocouple | K | -60ºC to+1372ºC | ±(0.1% rdg. +1ºC) | Maximum 6 digits | |
| J | -200ºC to+1200ºC | ±(0.1%rdg.+1.0ºC)≤0ºC±(0.15%rdg.+1.0ºC) | Maximum 6 digits | ||
| E | -200ºC to+1000ºC | ±(0.1%rdg.+1.0ºC)≤0ºC±(0.15%rdg.+0.5ºC) | Maximum 6 digits | ||
| T | -200ºC to+400ºC | ±(0.1%rdg.+1.0ºC)≤-30ºC±(0.15%rdg.+0.5ºC) | Maximum 6 digits | ||
| N | -200ºC to+1300ºC | ±(0.1%rdg.+1.0ºC)≤0ºC±(0.3%rdg.+0.7ºC) | Maximum 6 digits | ||
| W | +1500ºC to+2315ºC | ±(0.05% rdg. +1.5ºC) | Maximum 6 digits | ||
| 0ºC to+1500ºC | ±(0.05% rdg. +1.0ºC) | Maximum 6 digits | |||
| R | +800ºC to+1768ºC | ±(0.05% rdg. +1.5ºC) | Maximum 6 digits | ||
| +400ºC to+800ºC | ±(0.2% rdg. +2.0ºC) | Maximum 6 digits | |||
| S | +800ºC to+1768ºC | ±(0.05% rdg. +1.5ºC) | Maximum 6 digits | ||
| +400ºC to+800ºC | ±(0.2% rdg. +2.0ºC) | Maximum 6 digits | |||
| B | +800ºC to+1820ºC | ±(0.05% rdg. +1.5ºC) | Maximum 6 digits | ||
| +400ºC to+800ºC | ±(0.2% rdg. +2.0ºC) | Maximum 6 digits | |||
| Thermal resistor | Pt100 | -200ºC to+660ºC | ±(0.02% rdg. +0.3ºC) | Maximum 6 digits | |
| Cu50 | -50ºC to+150ºC | ±(0.02% rdg. +0.3ºC) | Maximum 6 digits | ||
| PT1000 | -200ºC to+300ºC | ±(0.05% rdg. +0.2ºC) | Maximum 6 digits | ||
| Note: | The above type 0-10V, is to increase the measurement range to 0-30V DC | ||||
| Warm-up time | More than 30 minutes | ||||
| Thermocouple Measurements | Including cold junction compensation accuracy | ||||
| Standard operating conditions (accuracy as above) |
Temperature 25±3ºC, humidity 55±10%RH | ||||
| Environmental adaptability | Operating temperature | -20ºC to +50ºC | |||
| Operating humidity | 0 to 90% RH (no condensation) | ||||
Shenzhen Toprie Electronics Co., Ltd. is a leading high-tech enterprise specializing in the development and manufacturing of environmental monitoring and data acquisition solutions.
Established in 2009, our company operates a state-of-the-art facility spanning over 3,000 square meters, equipped with six advanced production lines and a highly skilled team committed to research, design, quality control, and precision manufacturing.
Core Business
We provide a comprehensive portfolio of cutting-edge products, including:
Multi-Channel Data Loggers & Paperless Recorders
Humidity & Temperature Sensors and Loggers
Gas Detectors
Multi-Parameter Cleanliness Analyzers
Smart Wireless Pressure & Temperature Sensors
Smart Water Meters
Water Level Meters, Ultrasonic Level Meters & Radar Level Meters
Multi-Channel Data Acquisition Modules (DAS & DAQ)
Smart IoT Gateways & Edge Computing Gateways, RTU, and DTU
SCADA Systems, HMI & HDMI Solutions
Thermal Imaging Cameras & Infrared Temperature Sensors
Electric, Power, and Energy Meters / Power Quality Analyzers
Comprehensive IoT Solutions
Quality & Customization
With advanced testing facilities, state-of-the-art manufacturing technologies, and a rigorous quality assurance system, we ensure that every product meets the highest industry standards.
In addition to our proprietary product line, we offer OEM and ODM services, providing customized solutions tailored to our clients' specific requirements, including personalized branding.
Our Commitment
Driven by integrity, innovation, and excellence, we are dedicated to delivering high-quality products and exceptional customer service. We welcome you to visit our company or contact us to explore potential collaboration opportunities.
Q: Are you a factory/manufacturer?
A: Yes, we are a professional manufacturer of data loggers, humidity & temperature sensors, gas detectors, pressure sensors, water level meters, liquid level transmitters, data acquisition modules, IoT gateways, thermal imaging cameras, power & energy meters, and more.
Q: Can I customize my logo and communication methods?
A: Yes, logo customization is available with a small MOQ. We support multiple communication methods, including GPRS, 4G, Wi-Fi, LoRa, and LoRaWAN. Please inform us in advance.
Q: What is your lead time? How long for custom instruments?
A: Standard products ship within 3-5 days after payment. Custom orders depend on quantity and requirements.
Q: What payment methods do you accept?
A: We accept T/T (bank transfer), Western Union, PayPal, and more.
Q: What packaging and shipping methods do you use?
A:
Standard carton packaging
Shipping via express (door-to-door), air, or sea as per customer requirements.
Q: What is your after-sales service policy?
A: We offer a 12-month warranty and lifetime maintenance. Our professional support team provides one-on-one assistance and responds within 24 hours to resolve technical issues.
For more inquiries, feel free to contact us!
