Internal Mixer Laboratory Banbury Rubber Dispersion Kneader Origin China HS 8477800000 Output 1kg/Batch Type Rubber Mixer
set
Negotiable
Product information
High-quality Internal Mixer Laboratory Banbury Rubber Dispersion Kneader Origin China HS 8477800000 Output 1kg/Batch Type Rubber Mixer supplied by Dongguan Miko Testing Instrument Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1450mm*860mm*2000 mm
Output:
1kg/Batch
Voltage:
3 Phases, 380V
HS Code:
8477800000
HS:
8477800000
Control Type:
Artificial
Automatic Grade:
Automatic
Origin:
China
Specifications
Specification:
1450mm*860mm*2000 mm
Output:
1kg/Batch
Voltage:
3 Phases, 380V
HS Code:
8477800000
HS:
8477800000
Control Type:
Artificial
Automatic Grade:
Automatic
Origin:
China
Power Source:
Electric
Trade Term:
FOB
Model NO.:
MK-8007IM
Transport Package:
Plywood Case
Type:
Rubber Mixer
Application:
Suitable for Rubber and Plastic Raw Materi
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificate
Product descriptions from the supplier
SONA2024 2.2.1

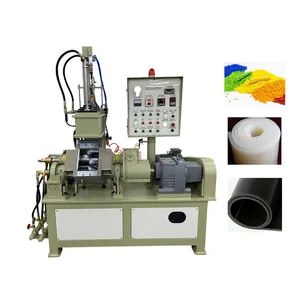

Lab Rubber Internal Mixer Banbury Mixer
Lab internal mixer is a small-scale mixing device primarily used in laboratories for mixing and plasticizing polymer materials such as rubber and plastics. Two opposing rotating rotors shear and compress the materials, ensuring thorough mixing of various additives with the rubber or plastic matrix, resulting in more uniform material properties.
This equipment helps researchers quickly test and optimize formulations in small-batch material trials, determining suitable process parameters such as the effects of temperature, rotation speed, and time on material properties, providing data support for large-scale production.

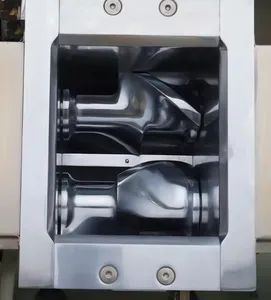

Rotors
Mixing Zirconia
Control Panel
Technical Specifications
Model | MK-8007IM-1L | MK-8007IM-3L | MK-8007IM-5L |
Mixing chamber volume | 1L | 3L | 5L |
Discharge method | Reverse discharge | ||
Rotor
speed radio | 1:1.3 (Adjustable) | ||
Drive motor | 3.7kW | 7.5kW | 11kW |
Flip motor | 0.75kW | ||
Flip angle | 110℃ | ||
Air pressure | 0.3-0.5mpa | ||
Control system | Press Button Control/PLC Control (Optional) | ||
Power
supply | 3∮,AC380V | ||
Dimension | 1500mm×850mm×1900mm | 1800mm×950mm×2000mm | 1900mm×1100mm×2100mm |
Weight | 850kg | 1300kg | 1500kg |
Applications
1. Material Development & Formulation:Testing and optimizing new formulations for rubber, plastics, and advanced materials.
Enables precise mixing of polymers with fillers (carbon black, silica), plasticizers, stabilizers, curatives, and other additives
Ideal for developing:
Ideal for developing:
Rubber compounds: NR, SBR, EPDM, NBR, silicone rubber formulations
Thermoplastic compounds: TPE, TPU, TPV alloys and blends
Masterbatches: Color concentrates, additive masterbatches
Nanocomposites: Carbon nanotube, graphene, nanoclay reinforced materials
Requires minimal material (as little as 30–200 g per batch), making it cost-effective for R&D
Thermoplastic compounds: TPE, TPU, TPV alloys and blends
Masterbatches: Color concentrates, additive masterbatches
Nanocomposites: Carbon nanotube, graphene, nanoclay reinforced materials
Requires minimal material (as little as 30–200 g per batch), making it cost-effective for R&D
2. Process Optimization & Scale-Up Studies:Investigating mixing parameters and preparing for industrial production.
Studies the influence of rotor speed, temperature, fill factor, ram pressure, and mixing time on dispersion quality and compound properties
Monitors mixing torque and energy consumption to characterize processability
Provides critical data for scaling up to production-scale internal mixers
Monitors mixing torque and energy consumption to characterize processability
Provides critical data for scaling up to production-scale internal mixers
3. Quality Control & Batch Verification: Ensuring consistency of incoming raw materials and finished compounds.
Tests raw materials (polymers, fillers, process oils) for batch-to-batch consistency
Validates compound quality before production runs
Prepares test specimens for physical property evaluation (rheometry, Mooney viscosity, tensile testing)
Essential for QC laboratories in rubber and plastics manufacturing facilities
Validates compound quality before production runs
Prepares test specimens for physical property evaluation (rheometry, Mooney viscosity, tensile testing)
Essential for QC laboratories in rubber and plastics manufacturing facilities
4. Education & Academic Research:Hands-on training and fundamental research in polymer processing and rheology.
Demonstrates principles of polymer mixing, dispersion, and mastication
Used in materials science, polymer engineering, and rubber technology programs
Enables study of mixing mechanisms, rheological behavior.
Used in materials science, polymer engineering, and rubber technology programs
Enables study of mixing mechanisms, rheological behavior.
Why Choose Us?
After Sales Service
OEM/ODM capabilities
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
1. Standard Warranty: 12 months after the manufacturing date.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
