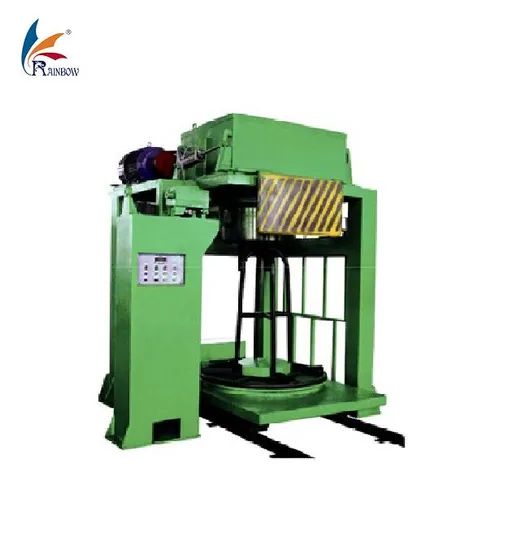

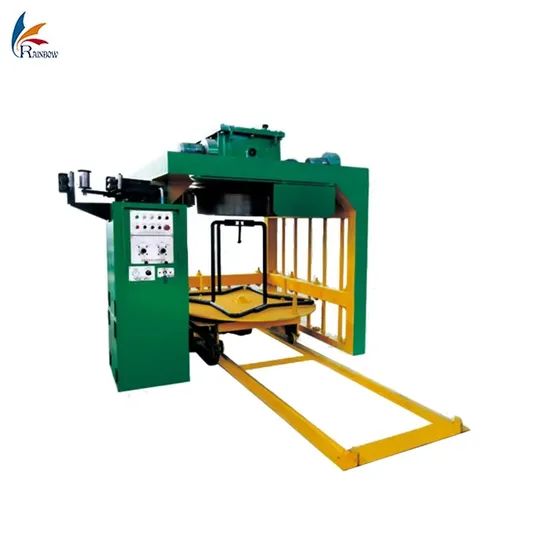

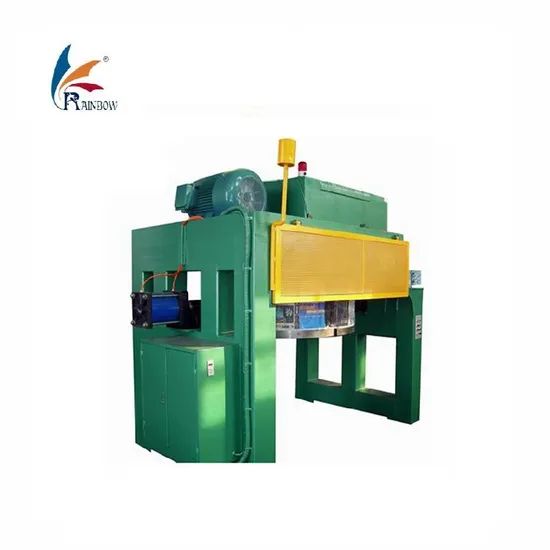

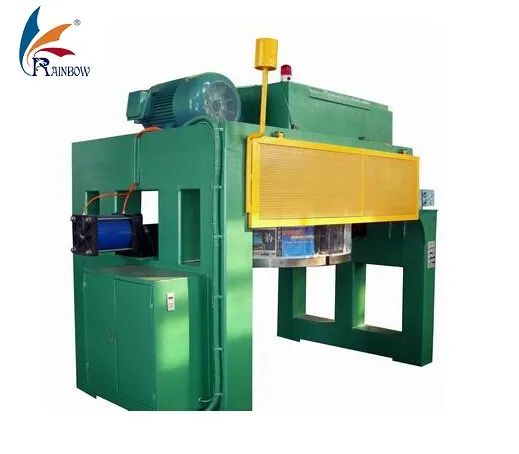

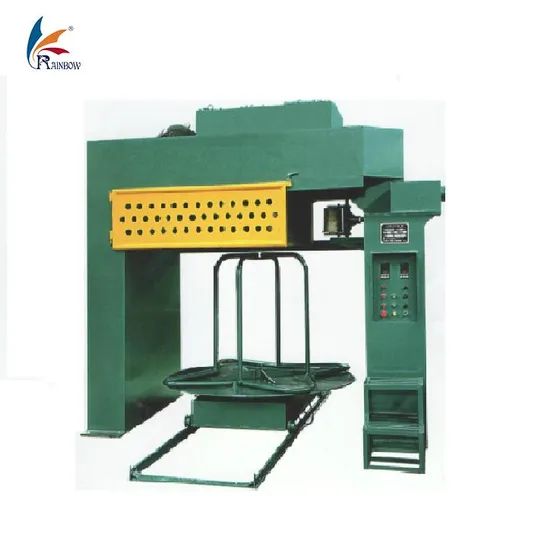

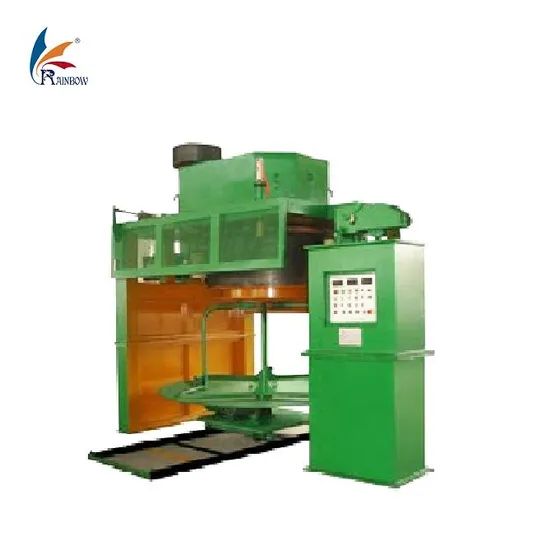

Inverted Wire Drawing Machine /Metal Wire Drawing Machine
1 set
$20,000Product information
High-quality Inverted Wire Drawing Machine /Metal Wire Drawing Machine supplied by HARBIN RAINBOW TECHNOLOGY CO., LTD.. Bulk wholesale pricing is $20,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Max. Number Of Block:
1
Block Dia.:
1400mm
Package Size:
150.00cm * 160.00cm * 150.00cm
Specification:
2*5*2
Package Gross Weight:
2500.000kg
Outlet Diameter:
34mm
Max.Inlet Wire Dia.:
36mm
Lead Time:
60 days (1 - 1 set)To be negotiated ( > 1 set)
Specifications
Max. Number Of Block:
1
Block Dia.:
1400mm
Package Size:
150.00cm * 160.00cm * 150.00cm
Specification:
2*5*2
Package Gross Weight:
2500.000kg
Outlet Diameter:
34mm
Max.Inlet Wire Dia.:
36mm
Lead Time:
60 days (1 - 1 set)To be negotiated ( > 1 set)
Motor Power:
75kw
Wire:
Carbon Steel
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Color:
Green,White
Certification:
ISO
Payment Term:
LC, T/T
Condition:
New
Model NO.:
RDl-36
Trademark:
Rainbow
Transport Package:
Seaworthy Package
Port Of Loading:
Shanghai Port
Metal Material:
Steel
Payment Methods:
Support payments in USD
Usage:
Wire
Customidized:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-12-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
Business Licence, CE, CE Certification, Export Licence, Trademark
Product descriptions from the supplier
Wire drawing machineis a prefabrication equipment for metal products, widely used in screw, nut ,bolt making area. The purpose is to pull metal wire or bar of the product manufacturing enterprise, which is produced and transported by the steel manufacturer to standard parts, through the wire drawing machine, the diameter of the wire or bar, the roundness, internal metallographic structure, surface finish and straightness are all meet the raw material processing requirements for the production of metal parts such as standard parts.
There are many suitable drawing materials for straight wire drawing machine, including welding rod; welding wire (gas shielded wire, submerged arc wire, flux cored wire, etc.); steel wire (high, medium and low carbon steel wire, stainless steel wire, tire steel wire, hose steel wire, spring steel wire, steel cord, etc.); electric wire (aluminum clad steel wire, copper wire, aluminum wire, etc.); alloy wire, etc.
RDL36 Inverted wire drawing machine parameters and configuration
| Take-up wire : | 1. Take-up motor: 2.2 kw - 6 p general motors 2. Type inverter: 2.2 kw (vector control) 3. The reducer: WPO135 type 4. The discharging machine: 1.5 kw - 6 p |
| Hydraulic clamping device: | 1. Hydraulic cylinder: 100 * 180 three groups 2. : nip 150 * 250 alloy nylon material 2 x 3 groups |
| Specification | 1. Max drawing speed: 45 m/min 2. Max incoming diameter : 36mm 3. Incoming strength: 1000 Mpa For high carbon steel 4. The biggest reducing: 200 s standard of high carbon steel 5. The largest storage line: 2.5 T 6. Compaction method: three groups of six rounds of hydraulic clamping 7.Drum diameter: 1400mm 8.Motor: 75KW |
Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.
We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.
With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers.
We have established reputation in countries such as India, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
