Iron Rod Making Machine Hot Steel Rolling Mills

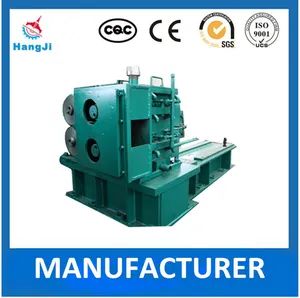

Composition of roller box

Roller box main case, plate,(left and right)roll shaft, 8-shaped pannel, (left and right)eccentric locking collar parts, taper sleeve, adjustment feed screw and nut.

Technical characteristics

1, Roller box adapt carbon steel to make sure the intensity of case.And use the annealing aging treatmenttoguaranteethestability of casting.It is not allowed to have holes, sand holes and cracksafter roughing.Main case use high accuracy too to produce every holes to insure the total accuracy and the interchangeability & versatilitybetweenpaneland main case. Rear side plate and front plate use No.45 steel to temper.Main case, rear side plate and front plate used high accuracy machining tool( such as NC working centre) to ensure the high accuracyrequirementof the location of eccentric locking collar and roll shaft.

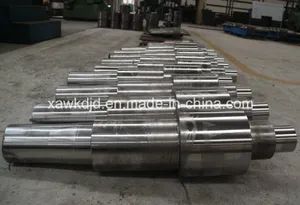

2, Roll shaft used low carbon alloy steel blank, after roughing, axis need to take ultrasonic flaw detectionprocess to quench. In order toensure the tooth surface with high hardness,tooth surfaceneed to takecarburizing and quenching treatmentafter semi-finishing.Fine grind of every round and the back of axis insure its accuracy & durableness with taper sleeve and tooth surface.When the produce process of roll shaft finished, we need to take the balance test to insure the rotary accuracy during roll shaft's high speed rotation(7500 Rev / min).
3, Eccentric locking collar adapt carbon steel workpiece, inner diameter and eccentric round used fine machining tool to ensure the eccentric distance and accuracy of inner and outer diameter. then, the adjustment accuracy of roll gap and theInterchangeabilityof every eccentric locking collar are ensured.
4, The front panel, real plate and internal parts are mostly made of medium carbon steel and processed by hard chrome plating and anti-corrosion treatment to increase the lifetime.
5, To make sure the assemble accuracy of roller box can reach the design requirement, a four-hour idling high-speed trial is conducted upon the assembly of roller box and bevel gear box, a smooth and stable sound and no oil leakage from thejointsurface arenecessary.

About us:

We provide:
1. Perfect rolling mill solutions including rolling passes design, production line setup, and workshop layout according to customer's requirements.
2. Sophisticated rolling mill stands and auxiliary equipments/spare parts used in the rolling mill production line. (Such as roller box, gearbox reduction, coil laying head, vertical and side loops, flying shears, chopping shears and gripping shears, pinch roll machine and so on)
3. Technical services and post-sale technical supports.
4. Professional engineers available for overseas installation and maintenance.
5.Also we have the cooperate factory with the melting furnace ,reheating furnace etc.

We supply the whole turnkey production line, from induction furnace, CCM, to rolling mills, walking beam cooling bed, auto packing etc. the capacity is from 50000 to 600000tons per year
We Manufacturer billet machine rolling can produce 8-32mm deformed rebar, angle bar, flat bar etc. and  6.5mm 5.5mm wire rod etc.

Steel rolling procedure:
Waste steel(scrap) ----melting---- casting----mold unloading----sorting-----deliver to heating furnace----heating to 1150 degree to 1200 degree----- come out furnace----- rolling----- finished product ----packing---- sales

Detailed for block mill:
1. The purpose of the equipment

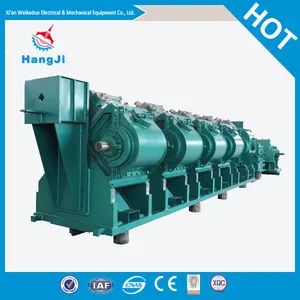

The finishing mill group is composed of top crossed 45° High-speed wire-rod finishing mills.
The finishing mill group is located in high-speed wire-rod workshop. Through 10 unit rack the continuous micro-tension rolling mill will be transported upstream Æ 17 ~ Æ 21mm of rolling, rolling become Æ 5.5 ~ Æ 16mm finished wire. The working speed of 90m/s is insured. The specification of end product is Æ 5.5mm.
2. Parameters
Our Service :
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.* View our Factory.
* Perfect rolling mill solutions including rolling passes design, production line setup, and workshop layout     according to customer's requirements.
After-Sales Service
* Training how to instal the machine, training how to use the machine. Technical services and post-sale        technical supports.
* Professional engineers available for overseas installation and maintenance. .

Why Choose us?

1. Expert R&D team and Professional service staff
2. Turn-Key service , Perfect after-sales service ,
3. OEM , Reliable Manufacturer
4. Competitive price , Optimum quality product
5. Machines easy operation, Steady performance, Low energy consumption
6. Lower investment , minimize maintenance
7. Products are customized for different requires
8. Adjustable production capability
9. On-time delivery
10. Warranty Period

FAQ :

1Q: Are you a factory or trading company ?
1A: We are a factory.

2Q: Where is your factory located?
2A: Our factory is located in XI'AN City, SHAAXIProvince, China.

3Q: What should I provide if I`d love to customized the machine?
3A:You need to let us know what the raw materials used for the machine and the size of the  finished productan and the annual output.

4Q: What I should do if I just start to know roll forming machinery?
4A: Provide me with the same request

5Q: Can you make the machine according to my design or proto type?
5A: We can design the production plan according to the customer's request

6Q: How can I trust you that machines pasted testing running before shipping?
6A: We will accept customers' inspection of goods before delivery and accept the consignment

7Q: Do you provide installing and training overseas?
7A: We can provide overseas installation and training

8Q: How is your after sales support?
8A: The equipment motor is guaranteed for one year, except for vulnerable parts, it is guaranteed for 6 months

9Q:Do you have any Oversea Project?
9A: Yes, we have service overseas , such as Vietnam , Indonesia, India , Thailand , Iran , Ethiopia , Myanmar etc.

Customer reference :
