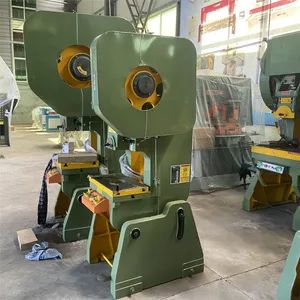

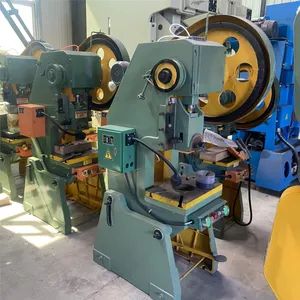

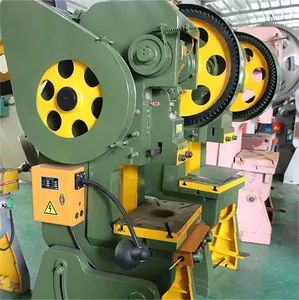

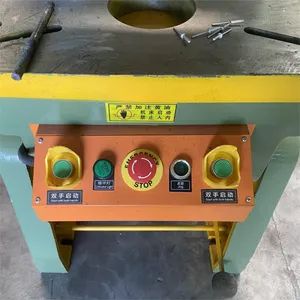

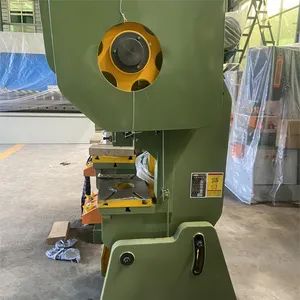

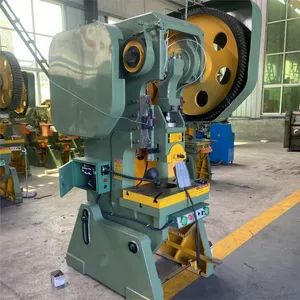

J23 Punching Press 80t Single Punching Press Machine
Piece
Negotiable
Product information
High-quality J23 Punching Press 80t Single Punching Press Machine supplied by Suzhou Hycules Machinery Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
20 Set/Month
HS Code:
8462299000
Origin:
China
Transport Package:
Cover with Plastic Film
Type:
Deep Throat Punching Machine
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Hycules
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Specifications
Production Capacity:
20 Set/Month
HS Code:
8462299000
Origin:
China
Transport Package:
Cover with Plastic Film
Type:
Deep Throat Punching Machine
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Hycules
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Power Source:
Mechanical Drive
Condition:
New
Precision:
Normal Precision
Punch Shape:
Open Punch
Automatic Grade:
Semiautomatic
Port Of Loading:
Shanghai Port
Slider Movement:
Single Action
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-11-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ATTESTATION CERTIFICATE OF MACHINERY DIRECTIVE, CERTIFICATE, CERTIFICATE OF COMPLIANCE, QUALITY MANAGEMENT SYSTEM CERTIFICATE
Product descriptions from the supplier
Product Description
Feature
J23 Mechanical Punching Press Technical Parameter
| Description | Type | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J21-100T | J21-125T | J21-160T |
| Nominal Force | kn | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Slide Stroke | mm | 50 | 60 | 70 | 100 | 100 | 115 | 130 | 130 | 130 |
| Number of Stroke | Times/min | 140 | 100 | 70 | 50 | 50 | 45 | 40 | 40 | 35 |
| Closed Height | mm | 200 | 250 | 290 | 350 | 380 | 410 | 420 | 420 | 410 |
| Close Height Adjustment | mm | 40 | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 80 |
| Throat Depth | mm | 130 | 180 | 200 | 250 | 280 | 280 | 320 | 320 | 360 |
| Column Distance | mm | 170 | 200 | 230 | 320 | 350 | 360 | 400 | 430 | 330 |
| Table Size Front and Back | mm | 230 | 280 | 330 | 420 | 450 | 500 | 600 | 650 | 650 |
| Table Size Left and Right | mm | 370 | 450 | 530 | 640 | 700 | 750 | 900 | 1000 | 1100 |
| Slide Bottom Size Front and Back | mm | 100 | 130 | 170 | 190 | 220 | 250 | 280 | 350 | 340 |
| Slide Bottom Size Left and Right | mm | 145 | 180 | 200 | 250 | 310 | 300 | 325 | 380 | 420 |
| Shouk Dimension Diameter | mm | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 70 | 80 |
| Shouk Dimension Depth | mm | 50 | 60 | 60 | 100 | 100 | 100 | 100 | 100 | 100 |
| Thickness of Table | mm | 30 | 40 | 45 | 70 | 80 | 90 | 100 | 110 | 120 |
| Dimension Front and Back | mm | 740 | 900 | 1000 | 1400 | 1500 | 1600 | 1800 | 1900 | 1800 |
| Dimension Left and Right | mm | 600 | 780 | 830 | 1100 | 1200 | 1300 | 1300 | 1500 | 1600 |
| Dimension Height | mm | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 | 2650 | 2800 | 2900 |
| Motor | kw | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Weight | kg | 350 | 700 | 1100 | 2400 | 3100 | 4000 | 5000 | 7300 | 9600 |
JH21 Pneumatic Punching Press Technical Parameter
| Specifications | Unit | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-100 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 |
| Nominal Capacity | KN | 250 | 450 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
| Nominal | mm | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6.5 | 7 | 8 |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 160 | 180 | 200 | 220 | 220 | 220 | 250 |
| Slide Strokes Per Minute(Fixed) | Times/min | 100 | 80 | 70 | 60 | 55 | 50 | 45 | 45 | 30 | 30 | 30 |
| Slide Strokes Per Minute(Variable) | Times/min | 60-120 | 50-95 | 45-85 | 40-75 | 35-65 | 35-65 | 30-55 | 30-55 | 20-35 | 20-35 | 20-35 |
| Maximum Die Set Height | mm | 250 | 270 | 300 | 320 | 335 | 350 | 400 | 450 | 500 | 500 | 550 |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | 120 | 120 | 120 |
| Throat Depth | mm | 210 | 225 | 270 | 310 | 330 | 350 | 400 | 430 | 450 | 450 | 490 |
| Distance Between Uprights | mm | 450 | 515 | 560 | 610 | 670 | 670 | 736 | 910 | 980 | 980 | 1050 |
| Slide Bottom Size(LxR) | mm | 360 | 410 | 480 | 540 | 620 | 620 | 700 | 880 | 950 | 950 | 1020 |
| Slide Bottom Size(FxB) | mm | 250 | 340 | 400 | 460 | 520 | 520 | 580 | 650 | 700 | 700 | 750 |
| Shank Hole Size (Dia) | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Shank Hole Size (Depth) | mm | 65 | 60 | 70 | 65 | 90 | 90 | 100 | 100 | 130 | 130 | 130 |
| Bolster Size(LxR) | mm | 720 | 825 | 930 | 950 | 1060 | 1100 | 1175 | 1390 | 1500 | 1540 | 1700 |
| Bolster Size(FxB) | mm | 400 | 440 | 520 | 600 | 640 | 680 | 760 | 840 | 880 | 880 | 950 |
| Blanking Hole diameter | mm | 150 | 150 | 150 | 180 | 180 | 200 | 220 | 250 | 270 | 270 | 290 |
| Bolster Thickness | mm | 80 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | 190 | 190 | 210 |
| Bolster Surface Height | mm | 780 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1100 |
| Overall Dimensions(FxB) | mm | 1500 | 1585 | 1540 | 1765 | 2000 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
| Overall Dimensions(LxR) | mm | 945 | 1075 | 1200 | 1200 | 1300 | 320 | 1420 | 1540 | 1640 | 1680 | 1750 |
| Overall Dimensions(H) | mm | 2120 | 2390 | 2570 | 2725 | 3010 | 3035 | 3215 | 3800 | 3850 | 3850 | 4140 |
| Distance Between Foundation bolts(FxB) | mm | 980 | 1075 | 1100 | 1210 | 1365 | 1430 | 1665 | 2020 | 2100 | 2140 | 2185 |
| Distance Between Foundation bolts(LxR) | mm | 690 | 760 | 840 | 920 | 1020 | 1040 | 1140 | 1360 | 1460 | 1500 | 1570 |
| Motor (Power) | KW | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Weight (Approximate) | Kg | 2450 | 3550 | 5150 | 6450 | 8650 | 9550 | 13600 | 19200 | 23200 | 26600 | 29500 |
| Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
