Jd-300 Heat Core Box Core Shooting Machine (THREE STATION PUMPING CORE) Semi-Automatic
Set
Negotiable
Product information
High-quality Jd-300 Heat Core Box Core Shooting Machine (THREE STATION PUMPING CORE) Semi-Automatic supplied by Guangzhou DT Exp. & Imp. Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Size Of Appearance Of Machine(L X W X H):
(1250X950X1850) mm
The Biggest Size Of Coer Boxes(L X W Xh):
(350X260X160) mm
Size Of Heating Plate(L X W):
(350×200) mm
Production Capacity:
100 Sets/Year
Itinerary Of Core Pulling:
125mm/50mm
Greatest Weight Of Sand Cores:
3.2kg
Net Weight Of Machine:
450kg
Heating Power:
6.5kw
Specifications
Size Of Appearance Of Machine(L X W X H):
(1250X950X1850) mm
The Biggest Size Of Coer Boxes(L X W Xh):
(350X260X160) mm
Size Of Heating Plate(L X W):
(350×200) mm
Production Capacity:
100 Sets/Year
Itinerary Of Core Pulling:
125mm/50mm
Greatest Weight Of Sand Cores:
3.2kg
Net Weight Of Machine:
450kg
Heating Power:
6.5kw
HS Code:
84543021
Material:
Aluminium & Aluminum Alloy
Automatic Grade:
Automatic, Automatic
Sand Core Type:
Clay Sand Core
Customized:
Customized, Customized
Trademark:
DT INDUSTRY
Machining:
EDM Machining
Surface Treatment:
Electroplating
Trade Term:
FOB, CIF, CFR
Standard:
GB
Type:
Gravity Casting/Wax Lose Casting/Sand Casting, Clay Wet Sand
Port Of Loading:
Guangzhou Port, Shenzhen Port
Origin:
Guangzhou, China
Model NO.:
JD-300
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Adjusting The Angle Of Core Pull Machine:
Less Than70°
Application:
Machinery Parts
Condition:
New, New
Specification:
OD40/OD60/OD100/OD150
Control Type:
PLC, PLC
Casting Method:
Pressure Crystallization
Surface Roughness:
Ra0.1
Certification:
RoHS, GS, ISO9001, RoHS, ISO 9001:2000, ISO 9001:2008, RoHS, GS, ISO9001
Transport Package:
Wooden Plate / Naked
After Sales Service:
["Life Time After Sales Service","Life Time Technology Support"]
Itinerary Of Plunger Under Pressure:
≤30mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Guangzhou Port, Shenzhen Port
Certificates:
Business liciense, DT INDUSTRY CERTIFICATION WALL, Exp. & Imp. Liciense, SGS certificate, TUV certificate
Product descriptions from the supplier

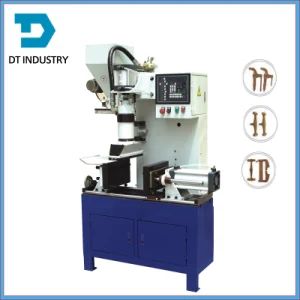

JD-300 HEAT CORE BOX CORE SHOOTING MACHINE(THREE STATION PUMPING CORE)SEMI-AUTOMATIC
The main casting machines as following:
Gravity casting machine,
Double-head automatic core-shootingmachine,
Vertical core-shooting machine sand mixer,
Zinc alloy casting machine and pneumatic clamp,
Plane grinding machine and so on.
Maximum core box size (L× W× H): 350mm× 260mm× 160mm
Stroke under pressure of shooting head: Less than 30 mm
Size of heating plate (L× W): 350mm× 20mm
Core-pulling stroke below: 125 mm
Core-pulling stroke between front and back: 50 mm
Adjustment angle of core-pulling between front and back: Less than 70 deg
Machine weight: 450 kg
Heating power: 6.5 kw
Machine size: 1250mm× 950mm× 1850mmMaking a perfect proposal for your production line;
Designing the suitable machines based on your requirements;
Manufacture machines you need;
Inspecting, packing, up-loading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
Guangzhou DT Exp. & Imp. Co. Ltd is established in 2012. We are mainly manufacturing machines for non-ferrous metal production.The main machines are electric melting furnace, holding furnace, continuous casting machine, cutting machine, peeling machine, chamfering machine, drawing machine and, straightening machine. And rolling equipment for steel and brass and copper strip.
Also we are supplying Graphite products for non-ferrous continuous casting production line and tungsten steel mold for extrusion and drawing and peeling production line.
We have a professional and passionate service team, including research and development department, technology support department and international after sales service department.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
