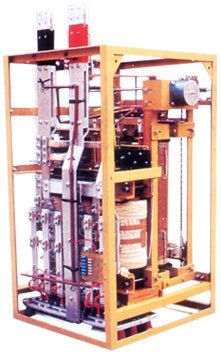

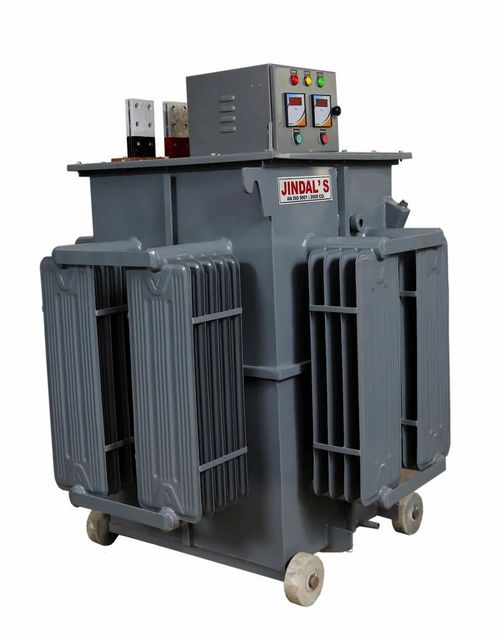

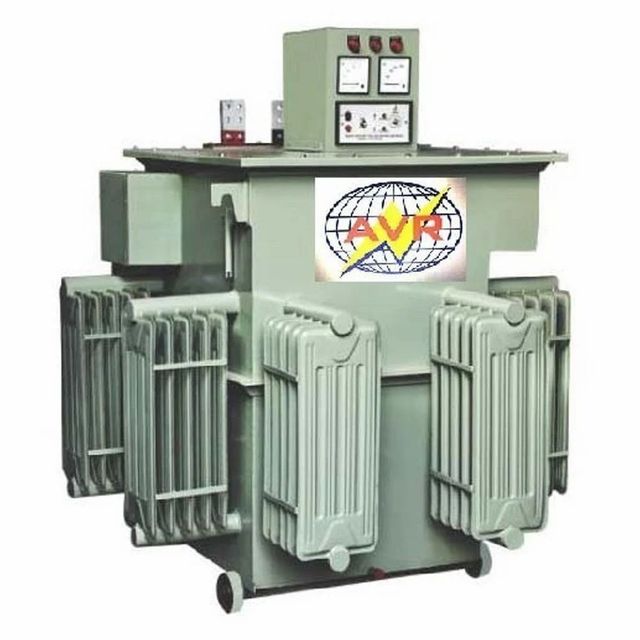

Jindal Silicon Power Rectifiers Enclosure Open Phase Type Three Phase Cooling Type Oil Cooled Mounting Type Floor Mount Ripple Content Less Than

ELECTROPLATING, CLEANING, ETCHING, STRIPPING, BARRELLING, ANODISING, HYDROGENATION AND OTHER ELECTROCHEMICAL PROCESS
 Jindal brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining DC from AC supply. Jindal manufactures a wide range of rectifiers covering 0-500 Volts and up to 15000 Amps. capacity suitable for Electroplating, Anodising, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at  every stage of production. We believe in quality & customers satisfaction.Brief SpecificationsJINDAL’S rectifiers are designed for continuous rated current with adequate margin of safety and are capable of working at 100% load factor.
The standard specifications are as follows.
Input Voltage : 380-440 Volts, 3-phase 50hz. AC supplyOutput Voltage : Fixed Rated maximum DC voltage or variable from zero to maximum rated voltage.Output Current : Rated maximum DC currentTemperature Rise : Less then 350 C above ambient at the top of the oil.Efficiency : 12V Rect - 82% , 24V Rect - 90%100V Rect - 94%, 200V Rect - 96%More than 250V Rect - More than 97% Ripple Content : Less than 5%Insulation : 'A' class for oil cooled.Salient FeatureJindal's rectifier equipments are wound with electrolytic Prime grade italics to minimize power losses, in comparison to Aluminium italic conductor used by many other manufactures. Our equipments are designed liberally as per capacity and are ideally suitable for marginal over loading conductions.We use verticle Rolling contact type voltage regulator wound with heavy section of copper strips suitable for 100% continuous duty cycle for industrial applications, in comparison to conventional wire wound Regulators used by other manufacturers. The carbon rollers move on both sides of the winding.GuaranteeJINDAL’S Make Silicon Power Rectifiers are Guaranteed Unconditionally for 5 Years against any Manufacturing Defect. We Shall not charge anything for Installation Servicing and Spares During the Guarantee Period.
