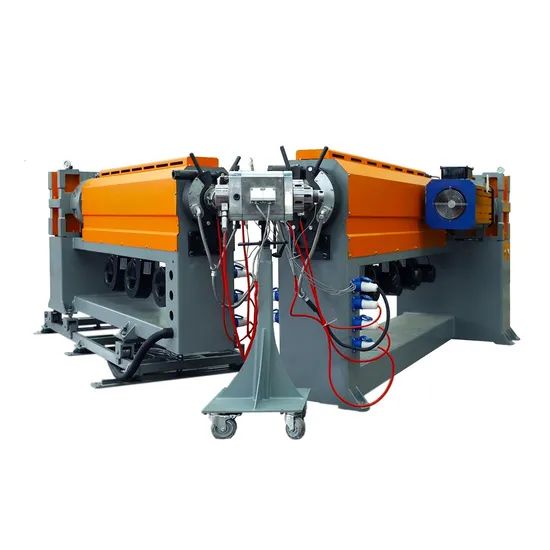

Jly-Sj-G70X25 High-Quality Double Layer Cable Wire Co-Extrusion Machine
1 Piece
$10,0001 Piece
$40,000Product information
High-quality Jly-Sj-G70X25 High-Quality Double Layer Cable Wire Co-Extrusion Machine supplied by Jinlongying Electrical Technology Co., Ltd.. Bulk wholesale pricing ranges from $10,000 to $40,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty:
24 Months
Screw Diameter:
27:1
Energy Save:
30%
Capacity:
500kg/H
Certification:
CCC, ISO, CE
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Heibei Province
Trademark:
JInglongying
Specifications
Warranty:
24 Months
Screw Diameter:
27:1
Energy Save:
30%
Capacity:
500kg/H
Certification:
CCC, ISO, CE
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Heibei Province
Trademark:
JInglongying
Model NO.:
JLY-SJ-G70X25
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Screw:
Multi-Screw
Condition:
New
Port Of Loading:
Tianjin Port
Transport Package:
Wooden Boxes
Specification:
depends on the type
Tem Control:
±2°C
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-03-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
66
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
JLY-SJ-G70X25 Dual-Layer Co-Extrusion Wire Production Machine
The JLY-SJ-G70X25 is a high-performance dual-layer co-extrusion wire production machine designed for the efficient processing of polyolefin thermoplastic low-smoke zero-halogen (LSZH) and cross-linked polyolefin LSZH materials. This extruder is specifically engineered for insulating and sheathing conductor cores using the hot extrusion method, making it an ideal solution for high-speed production lines specializing in photovoltaic (PV) cables.
Specification
The JLY-SJ-G70X25 dual-layer co-extrusion extruder is specifically designed for manufacturing:
Photovoltaic (PV) cables
Low-smoke zero-halogen (LSZH) insulated wires
Cross-linked polyolefin (XLPO) cables
Thermoplastic elastomer (TPE) sheathed cables
Advantages Over Conventional Extruders
Energy Efficiency: The PMSM drive reduces power consumption while maintaining high torque output.
Precision Control: The PID temperature system and SSR heating ensure superior thermal stability (±2°C).
High Wear Resistance: The nitrided screw and barrel extend service life even under high-output conditions.
Machine Features
1. High-Efficiency Drive System
The extruder is equipped with a permanent magnet synchronous motor (PMSM), ensuring high torque and energy efficiency. The speed regulation is controlled by a Shenzhen Weichuang frequency converter, while the overall system is managed by Siemens, Xinje, or Inovance PLCs for precise operation.
2. Advanced Temperature Control System
The wire production machine features a microcomputer-based touch-screen PID temperature control system, ensuring stable and accurate heating with a steady-state precision of ±2°C. The barrel is heated via electric heating elements combined with air cooling, allowing a maximum heating temperature of 300°C. The use of solid-state relays (SSRs) instead of traditional contactors enhances control frequency and temperature accuracy.
3. Optimized Extrusion Components
Screw & Barrel Design: The extruder utilizes a diverting-type screw to accommodate both insulation and sheathing processes. The screw and barrel are constructed from 38CrMoAlA alloy steel, subjected to nitriding treatment, ensuring a surface hardness of >HV870, a nitrided layer depth of 0.5–0.7 mm, and excellent wear and corrosion resistance.
Gearbox System: The hardened gear reducer features a ductile iron (QT) housing and 20CrMnTi nitrided gears, while the transmission shafts are made of 40Cr alloy steel, ensuring durability and smooth power transmission.
4. Robust Clamping Mechanism
The wire production machine employs a reinforced H-type clamping system for the extrusion head, providing secure and reliable fastening while allowing for quick mold changes.

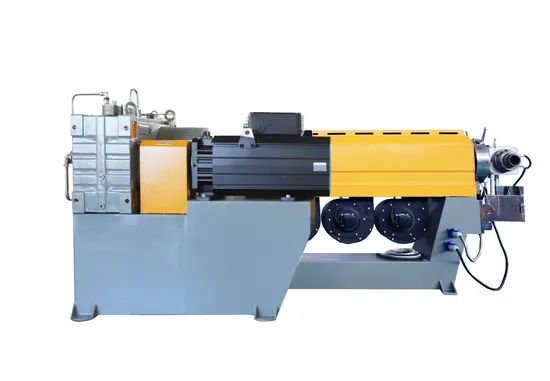

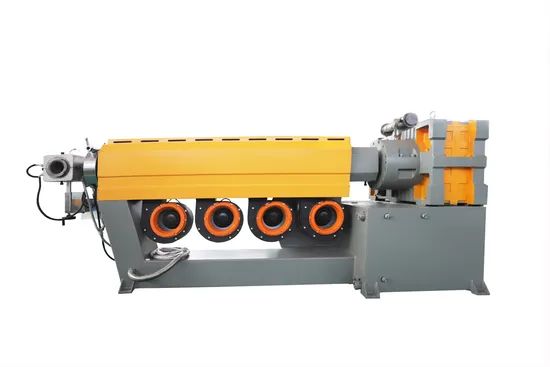

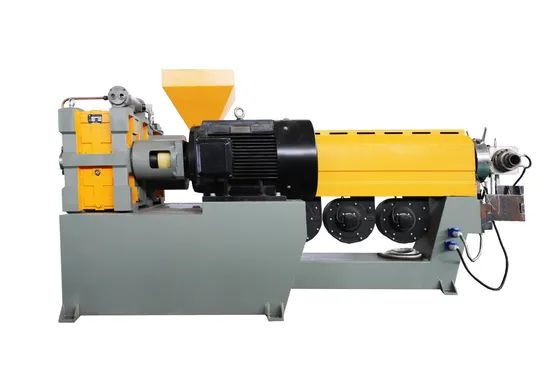

Double-Layer Co-Extrusion Machine
Double-Layer Co-Extrusion Machine
Double-Layer Co-Extrusion Machine
Technical Specifications
(Custom configurations available upon request.)
Model | Double-Layer Co-Extrusion Machine | Why Choose Our Double-Layer Co-extrusion? • Industry-leading photovoltaic cable production technology • Unmatched energy efficiency • Future-ready design • Comprehensive technical support | |
Main extruder | BM screw with 27:1 L/D ratio | ||
Extrusion head | U14 optimized design | ||
Drive system | 225 reducer with permanent magnet motor | ||
Production speed | Optimized for PV cable standards | ||
Layer thickness control | ±0.05mm precision | ||
